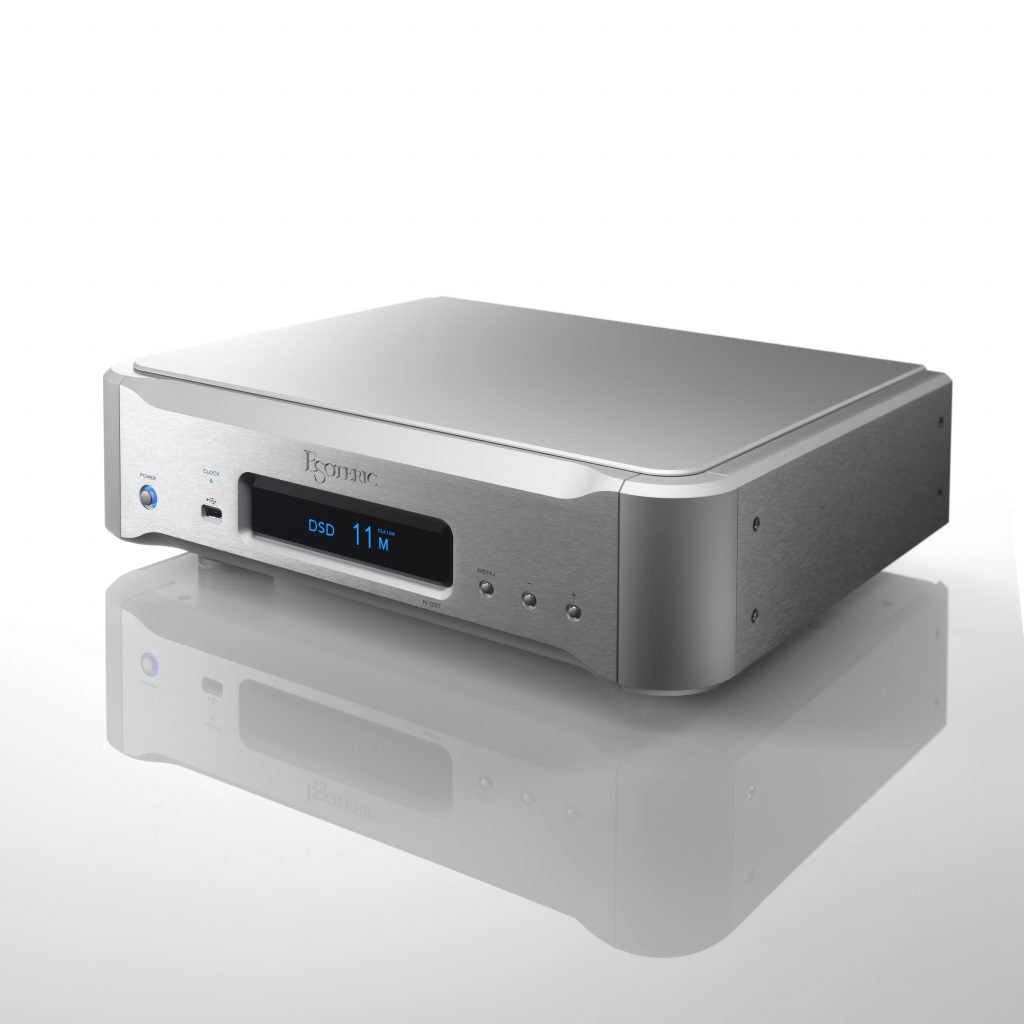

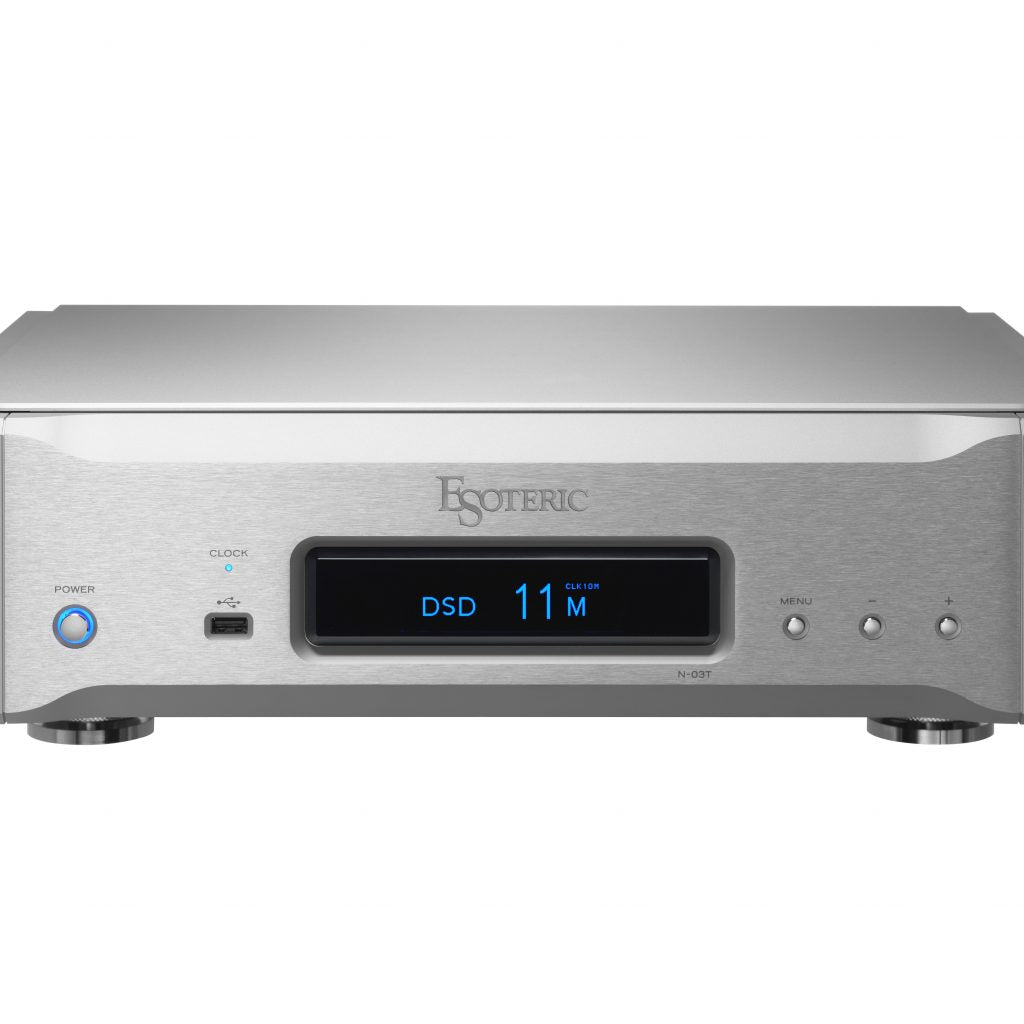

Esoteric N-03T Network Audio Transport

Description

Massive, super high quality modular systems are the key philosophy that Esoteric has followed since we were first established.
We are now bringing this same philosophy to network playback systems with the N-03T network digital audio transport system.
Your favorite D/A converter or Super Audio CD player can be digitally connected by USB, enabling you to build just the right system to enjoy playing files or streaming content your way.
Esoteric takes digital transport to a new level with endless options and even more possibilities for audio playback.

Network Audio

The N-03T fulfills every music lover’s dream: to access music freely from your living room chair and enjoy the very best audio quality. The DSD master audio source provides a crystal-clear audio experience, your CD collection is arranged in a library for easy access, and streaming services put new music at your fingertips. The N-03T is a network audio transport system specially designed to connect with an external DAC or a Super Audio CD player’s built-in DAC via USB connection. Other than your audio system, all you need is a home LAN (Wi-Fi router, etc.), a tablet or smartphone and a NAS (music server) to store your music library. That’s all you need for an easy, comfortable music experience where you don’t have to compromise on quality.

Compatible with a Wide Range of Audio Sources

Care has been taken with every detail to achieve audio quality suitable for high-end network playback. The N-03T is compatible with a vast range of formats (DSF, DSDIFF, FLAC, Apple Lossless, WAV, AIFF, MP3 and AAC) and supports playback up to DSD 11.2MHz and PCM 384kHz/32-bit by USB output. Gapless playback is also supported for all lossless formats for uninterrupted playback of live or opera recordings.

Esoteric Sound Stream

Esoteric Sound Stream is an Apple iOS network playback app for tablets and smartphones designed with an emphasis on intuitive operability. Simply select music tracks by using your tablet or smartphone to create a customized playlist and then play the playlist. All screens are intuitively designed for easy operation and access to playlists and libraries, making it easy for anyone to use. It also has a wide range of advanced features that meet the demands of even the most experienced users.

A key feature is the excellent search and retrieval function that fully utilizes tag information. Images are also stored in the app, enabling you to instantly scroll through album artwork and libraries according to categories such as artist, year of recording, composer or category.

High-Sampling Digital Output

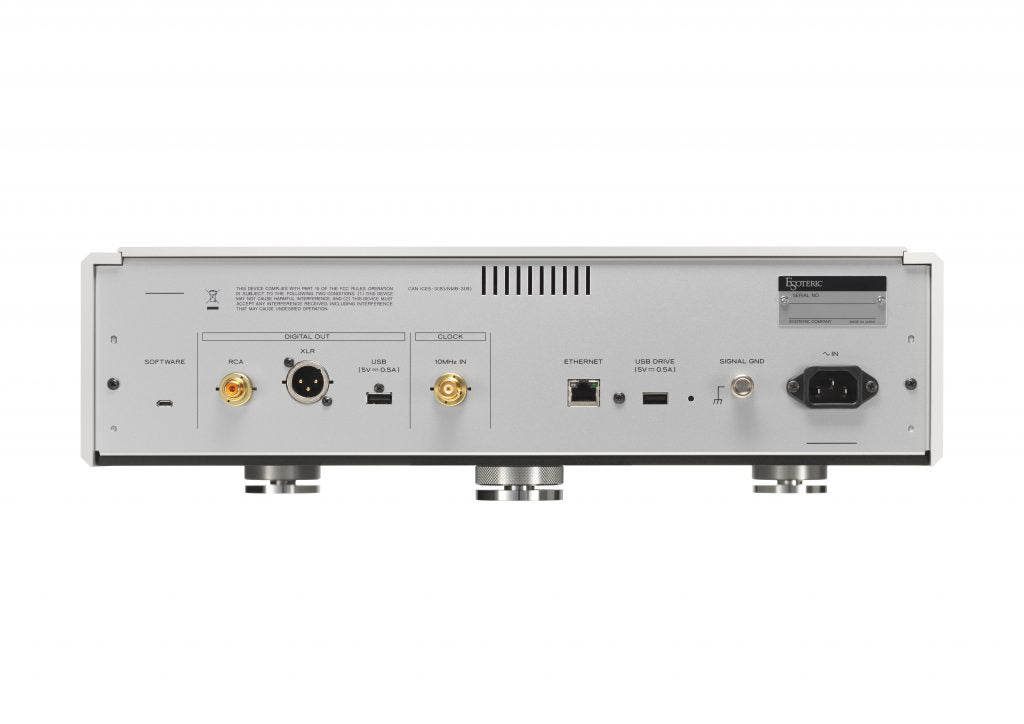

The N-03T has a USB port enabling digital output up to DSD 11.2MHz and PCM 384kHz/32-bit. This allows the N-03T to be connected to a USB DAC or a disc player with a USB port.
Two other digital output systems (XLRx1 and RCAx1) are also included, supporting PCM up to 192kHz/24-bit and DSD2.8MHz (DoP).

Music Server Function

The N-03T can also be used as a simplified music server in which a player and a library can be integrated by connecting large-capacity storage devices to two USB ports on the front and rear of the unit.
Compatible with a Wide Range of Streaming Services and Audio Codecs
Esoteric has partnerships with a wide range of streaming service and audio codec providers, and preparations are underway for compatibility with new services.*
*Information on newly supported services will be released on the ESOTERIC website. However, regional restrictions may be implemented on some services.

Equipped with Two Powerful Independent Power Supplies

The N-03T is equipped with two large independent toroidal transformers, one for the internal network module and one for the other digital circuits, enabling the ideal supply of power to each circuit block. Unlike a standard switching power supply, these large linear power supplies are made with high quality components such as large filter capacitors and Schottky barrier diodes. The dedicated power supply for the network module also has an EDLC (Electric Double-layer Capacitor), a super-capacitor that has 1F (1,000,000μF) capacitance. These provide a dramatic improvement in audio quality.

High-Rigidity Chassis Construction

The bottom chassis used to secure the circuit components has a dual layer structure with two steel plates (5mm and 2mm). The power supply transformer and other components are arranged three-dimensionally on the two layers to prevent interference between components, and laser-cut slits are applied to each layer for effective controlling of vibration. And a thick, heavyweight aluminum panel enclosure and Esoteric’s unique pinpoint feet (patents no. JP4075477 and JP3778108) provide thorough mechanical grounding against vibration.

Versatile Range of System Plans

Ever since we were first established, Esoteric’s philosophy has centered on modular audio systems, breaking audio down into separate devices and refining each one to achieve maximum audio quality. The N-03T network audio transport system can be combined with Esoteric’s range of D/A converters (D series) and Super Audio CD players (K series) to build your system just the way you want it.
