Details
Description

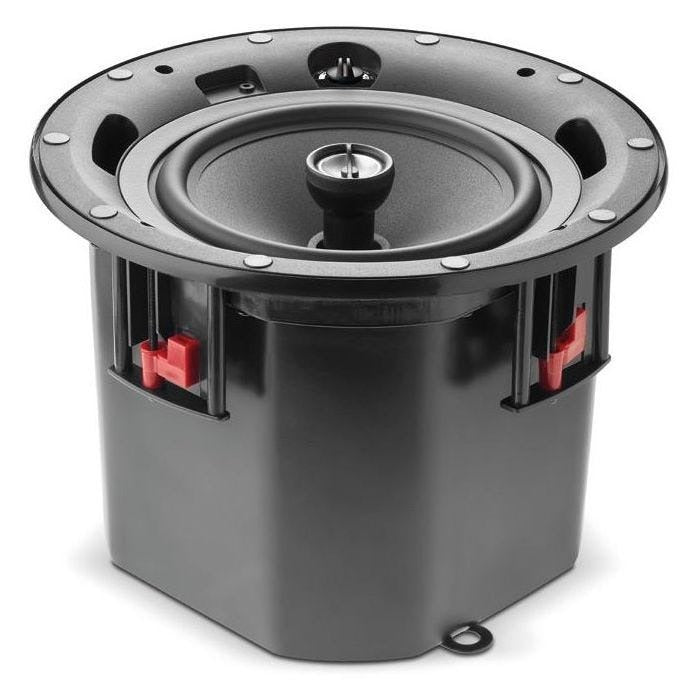

100 IC8-T UL
Key points
• Product designed and developed in France by Focal
• 8 Ω or 100V/70V mode by switch
• Low directivity: wide sound dispersion
• Ready-to-paint grille
• UL 1480, UL 2043
• Optional suspended ceiling mounting kit available
Technical Specifications
Product type : | In-wall/In-ceiling - 2-way coaxial bass-reflex 100V/70V or 8 Ω installations - Steel back can |
Drivers | 8" (21cm) Polyglass Midbass 1" (25mm) Aluminium inverted dome Tweeter |
Sensitivity (2.83V/1m) | 91dB |
Frequency response (+/-3dB) | 53Hz-23kHz |
Low frequency point (-6dB) | 48Hz |
70V line power | 7.5/15/30W |
100V line power | 15/30/60W |
8 Ω Recommended amplifier power | 15-150W |
External dimensions (ØxDepth) | 113/4"x87/8" (297x225mm) |
Cut-out diameter | 103/8" (265mm) |
Depth from wall | 83/8" (212mm) |
Ceiling thickness | 0-13/8" (0-36mm) |
Net weight (with grille) | 9.37lbs (4.25kg) |
Packing dimensions (øxH) | 145/8"x113/8" (370x290mm) |
Total weight (with packaging) | 11.68lbs (5.3kg) |
