100 ICW5-T
2-way coaxial speaker
Like all 100-T Series products, this integrated wall and ceiling loudspeaker is designed for sound reinforcement in large spaces. Its built-in adjustable transformer allows you to adapt its power output to cover a wide listening area with clarity and intelligibility. Thanks to its 13 cm Polyglass diaphragm driver and tweeter, the sound is hi-fi quality, for listening pleasure.
LARGE LISTENING AREAS

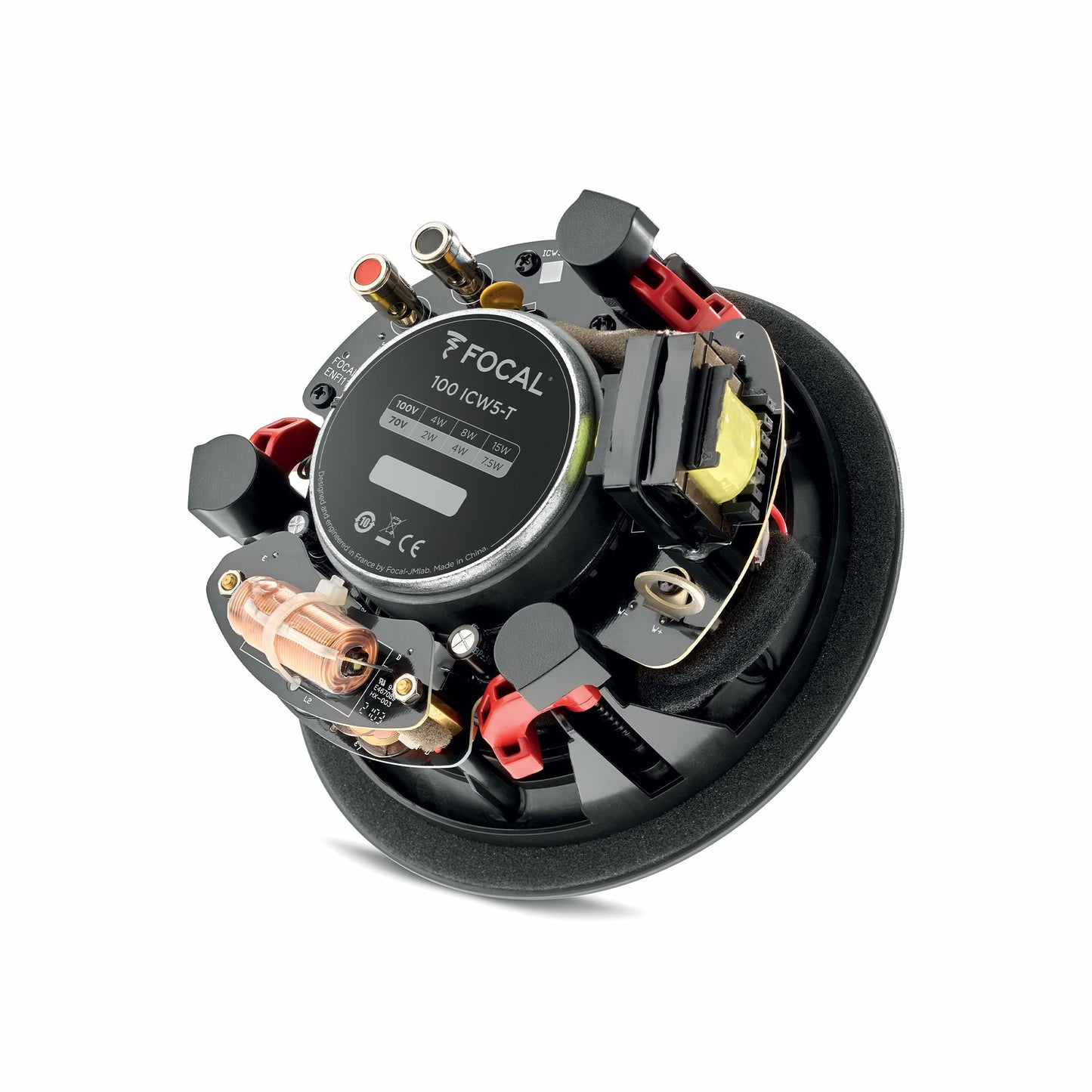

100 Series loudspeakers incorporate a transformer that adapts the power of the loudspeakers, enabling them to be chained together in a 70V/100V installation, ideal for public areas (hotels, restaurants, etc.). They guarantee quality sound while minimizing the number of amplification channels required.
FOCAL KNOW-HOW
The loudspeakers' Polyglass membrane delivers a natural, uncolored midrange and rich bass. This is combined with an aluminum inverted dome tweeter for silky treble and optimum sound dispersion.
MUSICALITY AND DISCRETION
Compactness and shallow mounting depth characterize the 100 Series loudspeakers for discreet integration. Installation is made easy thanks to mounting brackets with optimized grip and ready-to-paint grilles.
Specifications
Product type : | Wall / Ceiling - 2 Coxial channels for installation on line 70V / 100V |
Membrane : | Polyglass |
Medium : | 5" (13cm) Polyglass Midbass |
Response at - 6dB (Low frequency point) : | 56 Hz |
Frequency response (+/- 3dB) : | 65 Hz - 23 kHz |
Sensitivity : | 88 dB |
Depth : | 100 mm / 4 in |
Allowable ceiling thickness (min) : | 8 mm / 0.3125 in |
Allowable ceiling thickness (max) : | 35 mm / 1.37 in |
Cut-Out diameter : | 157 mm / 6.19 in |
Depth behind surface (Mounting depth) : | 3.75 in / 3.75 in |
Cut Out template : | Yes |
Grilles : | Ready-to-paint grille |
Sling : | Yes |
