OD 4.1
Custom Install

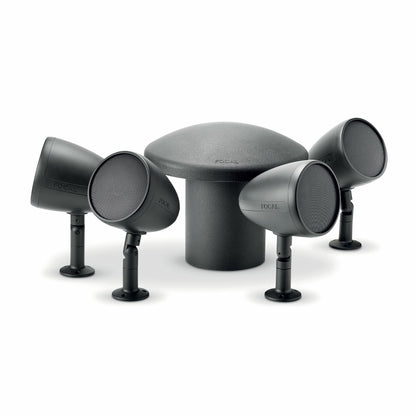

This package includes two pairs of OD Sat 5 outdoor speakers and the OD Sub 12 outdoor subwoofer.
Deep-dive into a sensational outdoor sound experience with this 4.1 pack.
Comprising four OD SAT 5 loudspeakers and the SUB 12 subwoofer, this system pushes the boundaries of outdoor sound quality. Combining elegant design with cutting-edge technologies, it offers a unique Focal listening experience, allowing you to enjoy your summer evenings to the full. Littora products are designed to last, setting themselves apart from the competition through their longevity and robust build. Their cones are IP55-certified to ensure they are suitably resistant to water and dust.
Key points
• Elegant design, blends seamlessly into any setting
• Four OD SAT 5 loudspeakers and one OD SUB 12 subwoofer:
outstanding sound quality for outdoors
• Loudspeakers: fastening brackets supplied for in-ground
and/or in-wall installation
• IP55 certification (water and dust)
• 8Ώ and 70V/100V compatible
Specifications
Specifications
Type of speaker r | OD SAT 5 | OD SUB 12 |
---|---|---|
Type of speaker | Satellite | Subwoofer |
Speaker drivers | 5" (12.7cm) Bass/Mid-range, Iris IP cone 1" (2.5cm) Aluminium 'M'-shaped tweeter |
12" (30.5cm) woofer with Iris IP cone |
Bandwidth | 90Hz – 28kHz | 40Hz – 120Hz |
Impedance | 8Ω | 8Ω |
Minimal impedance | 5.2Ώ – 250Hz | 5Ώ–55Hz |
Sensitivity | 88dB | 90dB |
Power | 50W RMS – 100W Peak | 100W RMS – 400W Peak |
Recommended amp power 8Ω | 20W – 100W | 50W – 300W |
Recommended RMS power 70/100V | 40W | 150W |
Maximum power (70/100V) | X | X 300W (150W RMS) |
High-pass, roll-off | 100Hz, 24dB/Oct | 100Hz, 24dB/Oct |
Transformer positions 70V – 100V/5W, 10W, 20W, 40W | X | X |
Temperature tolerance | -20°/65° | -20°/65° |
IP rating | IP55 | IP55 |
Angle coverage | 90° | 360° |
Dimensions (LxHxD) | 125/8x125/8x81/4" (32x32x21cm) | 15x361/4x22" (38x92x56cm) |
Weight | 5.5lbs (2.5kg) | 41.8lbs (19kg) |
