Fyne Audio

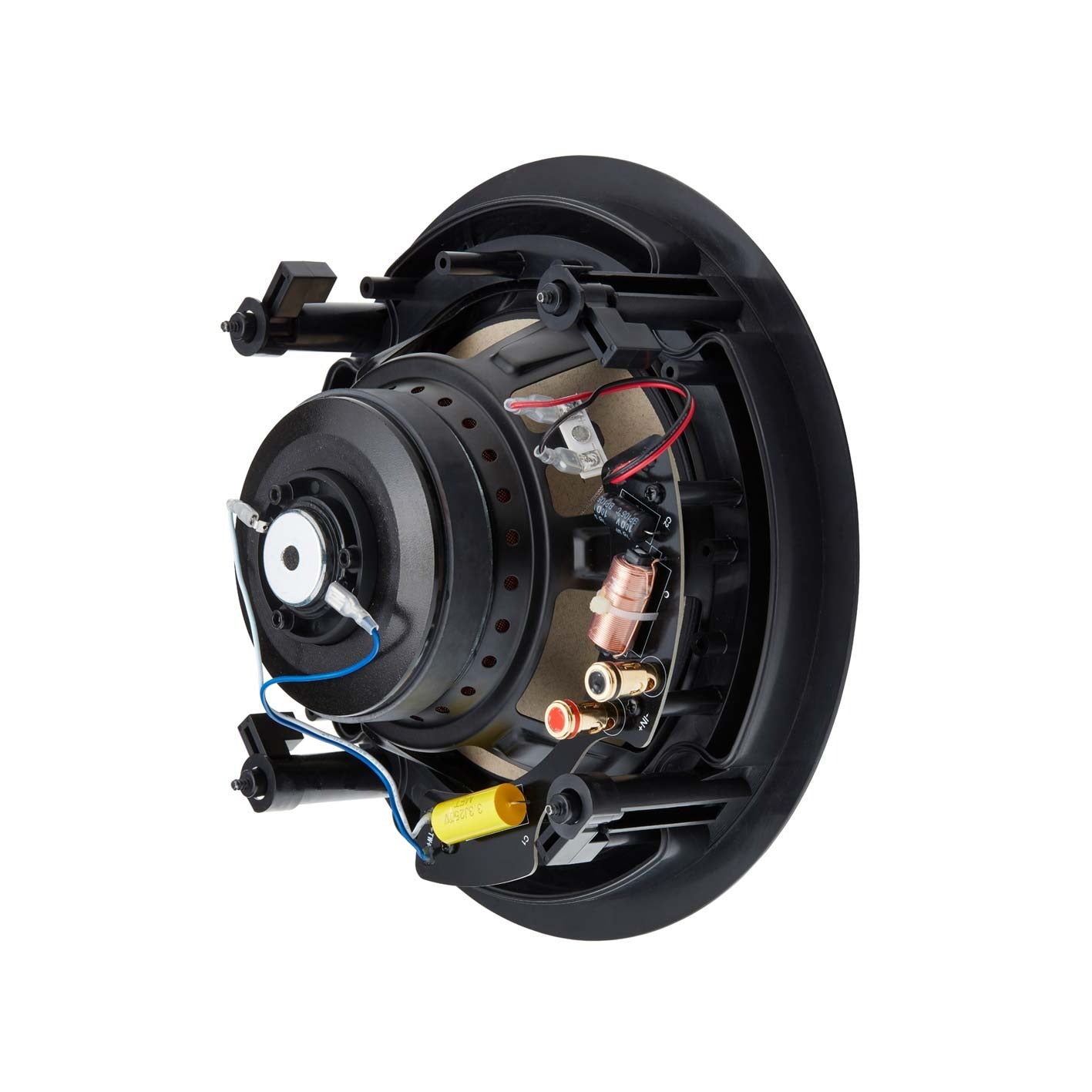

Fyne Audio FA502iC In-Ceiling
Fyne Audio FA502iC In-Ceiling
Couldn't load pickup availability
Pay in 3
Pay in 3Share
Details
Description
Delivering all the detail, impact and class-leading imaging of Fyne’s F500 series loudspeakers, the FA502iC brings true audiophile performance to home install loudspeaker design. Built around the F500 series prestigious 200mm (8”) IsoFlare point source driver with infinite baffle tuned crossover, the design offers high efficiency, high power handling and unique full range 360degrees isotropic dispersion pattern.
The result is a rich, detailed sound with a wide soundstage and perfect time alignment across the frequency spectrum. Ideal for in-ceiling or in-wall custom applications in the home, the chassis offers simple self-aligning clamps, spring clamp cable terminals and comes supplied with both round and square, fully paintable low profile magnetic grilles. The grilles are further enhanced with an acoustic scrim cloth to ensure the FA502iC blends seamlessly into the home décor.
Specifications
Specifications
| In-Ceiling / In-Wall IsoFlare Loudspeaker (8”) Specifications | |
|---|---|
| System Type | 2 way IsoFlare loudspeaker for in ceiling or in wall application |
| Recommended Amplifier Power (Watt RMS) | 30 - 150 |
| Peak Power Handling (Watt) | 300 |
| Continuous Power Handling (Watt RMS) | 75 |
| Sensitivity (2.83 Volt @ 1m) | 91dB |
| Nominal Impedance | 8 Ohm |
| Frequency Response (-6dB typical in room) | 35Hz - 34kHz |
| Drive Unit Complement | 1 x 200mm (8”) IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm titanium dome compression tweeter |
| Crossover Frequency | 1.7kHz |
| Crossover Type | Passive 2nd order low pass, 1st order high pass |
| Dimensions (Dia x Depth) | 273 x 123mm (10.6” x 4.8”) |
| Square Grille Dimensions | 281 x 281mm (11.1 x 11.1”) |
| Round Grille Diameter | 281mm (11.1”) |
| Cut-out Diameter | 248mm (9.8”) |
| Depth Behind Mounting Surface | 120.5mm (4.7”) |
| Clamp Travel | 5 - 50mm (0.2 - 2.0”) |
| Suggested Minimum Volume | 18 L |
| Net Weight - Each | 2.5kg (5.5lbs) |
