Grandview

Grandview 12mm Edge Series Acoustic 16:9 Projector Screen

Grandview 12mm Edge Series Acoustic 16:9 Projector Screen

Regular price £1,090.00
Regular price Sale price £1,090.00
Sale Sold out
  • Free Delivery
  • Demo Available
  • Trade-in Available
  • Pay in 3
View full details

Details

Description

Grandview Fixed Frame Edge Screens
The Edge series of fixed frame R3 Acoustic Projection screens offer the ultimate in 4K and 8K Ultra HD projection surface while also remaining uniformly flat. Ideal for permanent more dedicated cinema rooms, the fixed frame design with 12mm narrow surround gives a true cinematic experience.

High Tensioned Surface
The multiply ultra smooth 4K and 8K vinyl projection screen material is kept under high tension by a unique means found only in Grandview products. Steel bars are inserted into a looped seem that runs round the edge of the material. The bars are then fixed into the aluminium frame, causing the material to be pulled evenly from all four sides.

Frame Design
The super rigid narrow frame is only 12mm wide and constructed of extruded aluminium with a black velvet finish that absorbs any stray light from an overlapping picture. The material is mounted to a 2nd larger frame located behind it which also features a central support bar resulting in a super rigid structure. The frame secured to the wall via two long aluminium brackets, the lower bracket allows the installer to lock the screen into place.

Material

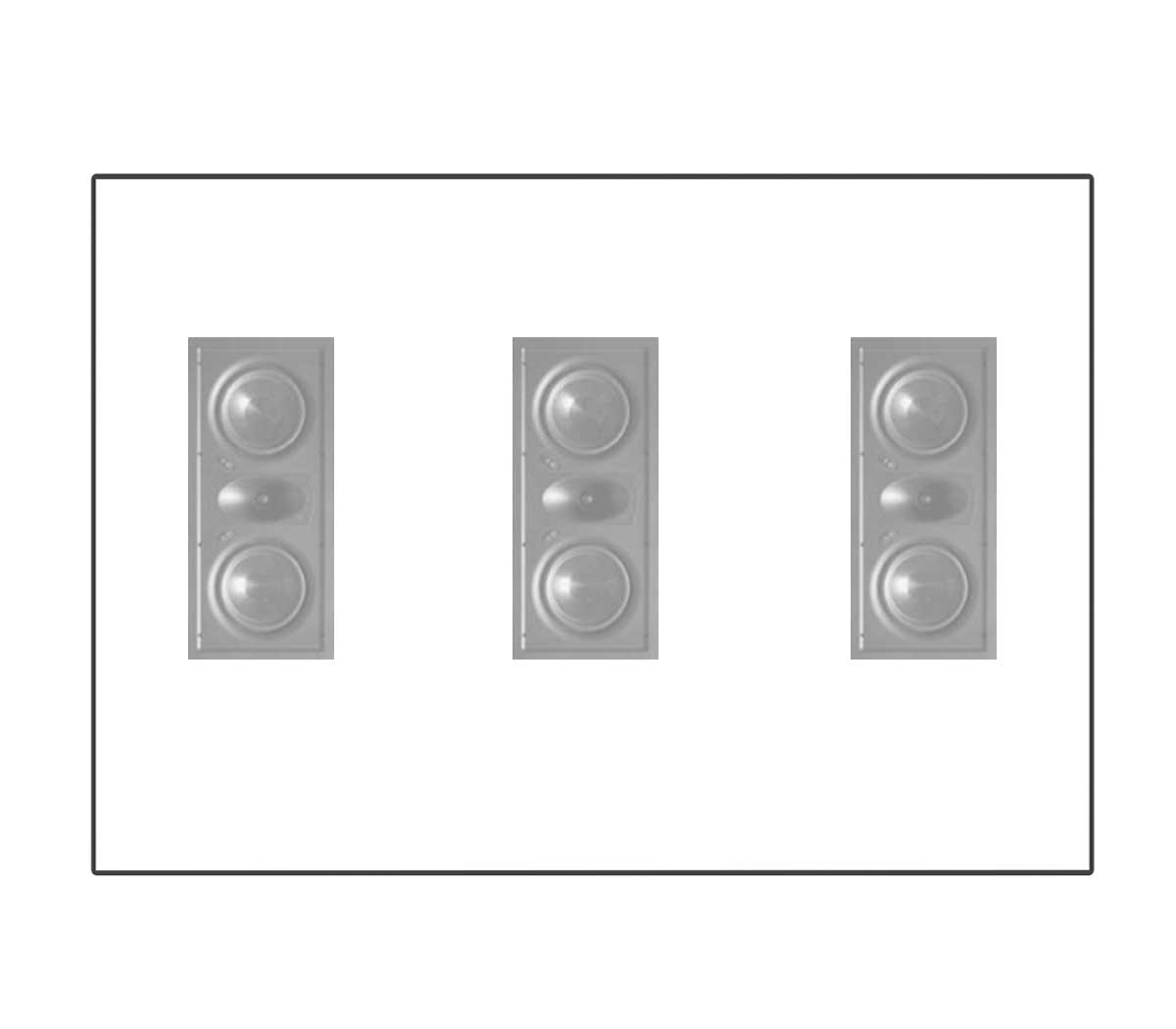

The acoustic woven screen material used by Grandview is a similar design used in commercial cinema screens. The material allows sound from rear mounted loudspeakers to pass through with the minimum of acoustic loss while retaining accurate colour saturation and contrast ratio. The material has a low gain rating of 1.1, keeping contrast levels high and offering a wide even viewing angle.

Installation of Edge Screen
The pre-made measured belt allows installation to be quick and easy, so that it can be done by one person.

Other features and measurements
Just like televisions, projector screens are measured in imperial feet and inches. The screen is measured by the width of the material from left to right. The standard sizes are 6ft, 7ft, 8ft,and 9ft. The viewable area is the white part of the screen which is slightly smaller due to the surrounding black borders.

Specifications

Specifications

Size Viewable Area Diagonal Case Size MM
6ft Wide 1705 x 959mm 77" 1729 x 983 x 32
7ft Wide 2037 x 1146mm 92" 2061 x 1170 x 32
8ft Wide 2347 x 1320mm 106" 2371 x 1344 x 32
9ft Wide 2657 x 1494mm 120" 2681 x 1518 x 32
