Details
Description
Superior Projection Screen Surface

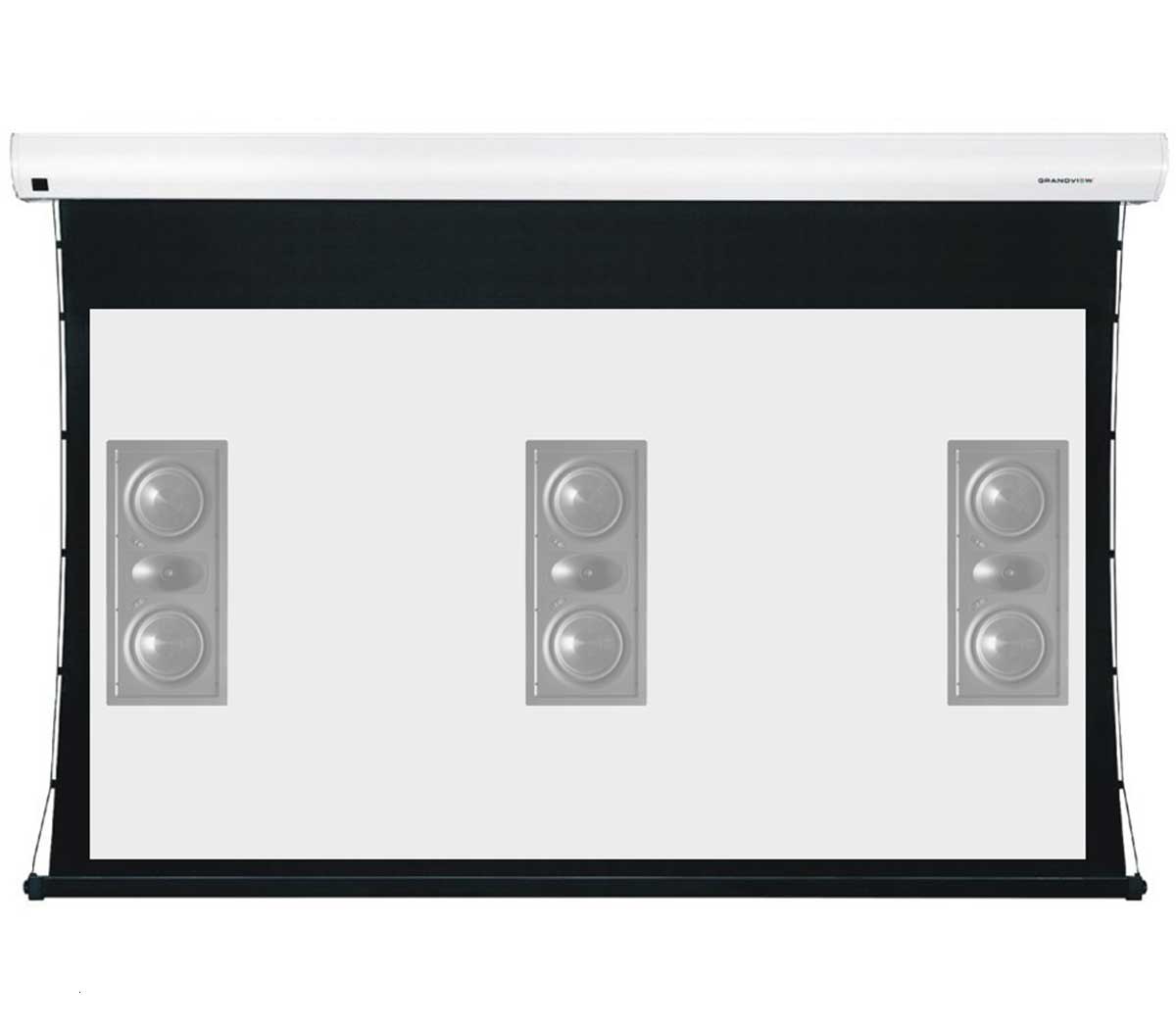

The acoustic material on our Tab Tension screens is designed to let the sound from speakers mounted behind the screen through to the audience with the minimum of interference to sound or picture quality. It is not only pulled down by the weight of the bar but also from the left and right side by a Nylon string. The string is periodically connected to the material via small “Tabs”, hence the name Tab Tension. Unlike a standard screen, a Tab Tension screen has a flexible material so that it can be pulled taught from all sides. The Grandview Cyber screens have a unique ratchet mechanism at each end of weighted bar so that the tensioning strings can be easily adjusted. The US made material is optimised for home cinema use, producing a high contrast and uniform reflectivity.
Built in Infra-red remote control and projector trigger

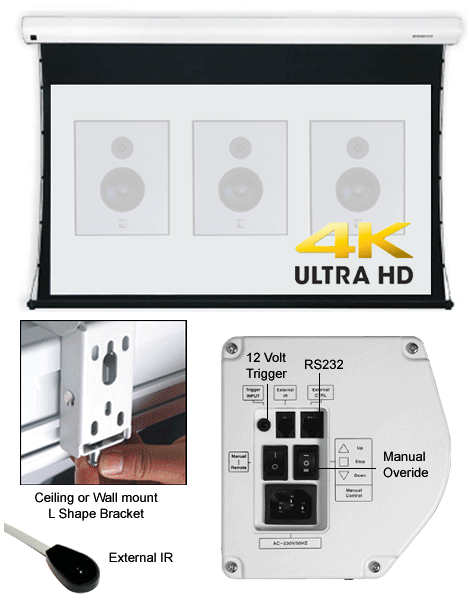

All Grandview Cyber Tab Tensioned electric screens feature built in infra-red remote control and come with a simple hand held remote. The IR receiver is located on the front of the curved case but should the screen be installed behind a pelmet or recessed into the ceiling, a small external IR eye is included. Also included is a 12volt trigger input, this allows the screen to be activated from any projector or surround sound amp with a 12volt output. A 10m mono mini jack cable is included to connect the screen to a 12volt output device.
Case and Motor Design

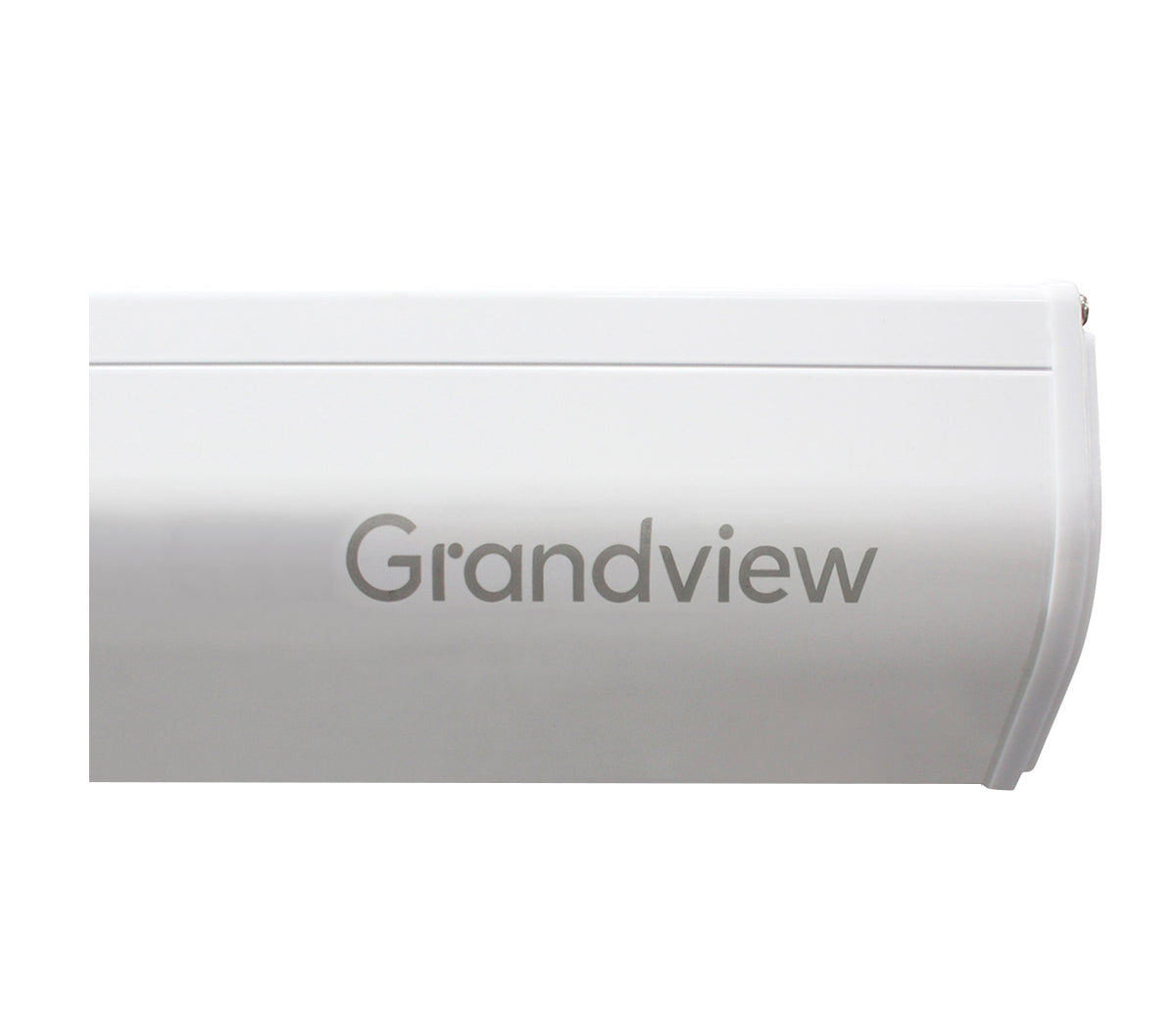

The aluminium diamond white case has an elegant curved profile making it one of the nicest looking screens on the market. The rigid sturdy design keeps the internal roller perfectly straight and any motor noise to a minimum. The projector screens all use SOMFY motors, the same motors found in the likes of Dalite and Stuart cinema screens.
This screen does not have a black backing, so it is advisable not to have a TV behind this, as you will get a glare back from the glass pannel
Mounting Bracket
Grandview Cyber projection screens feature one of the best mounting systems on the market. Two small brackets fit to the wall or ceiling anywhere along the length of the case. Once the screen is clipped into the brackets a retaining bolt secures it in position. The screen can only be lifted off the brackets when the bolt is released.
Other features and measurements
Just like televisions, projector screens are measured in imperial feet and inches. The screen is measured by the width of the material from left to right. The standard sizes are 6ft, 7ft, 8ft and 9ft. The viewable area is the white part of the screen which is slightly smaller due to the surrounding black borders. The Grandview Cyber screens top black border can be adjusted from 0 to 20″/50cm to give the desired screen position.
All the above screens come in a white case and in a 16:9 format
Specifications
Specifications
Size | Viewable Area | Diagonal | Case Size MM |
---|---|---|---|
7ft Wide | 2030 x 1145mm | 92" | 2523 x 143 x 135 |
8ft Wide | 2340 x 1320mm | 106" | 2834 x 143 x 135 |
9ft Wide | 2656 x 1494mm | 120" | 3144 x 143 x 135 |
