Kaleidescape

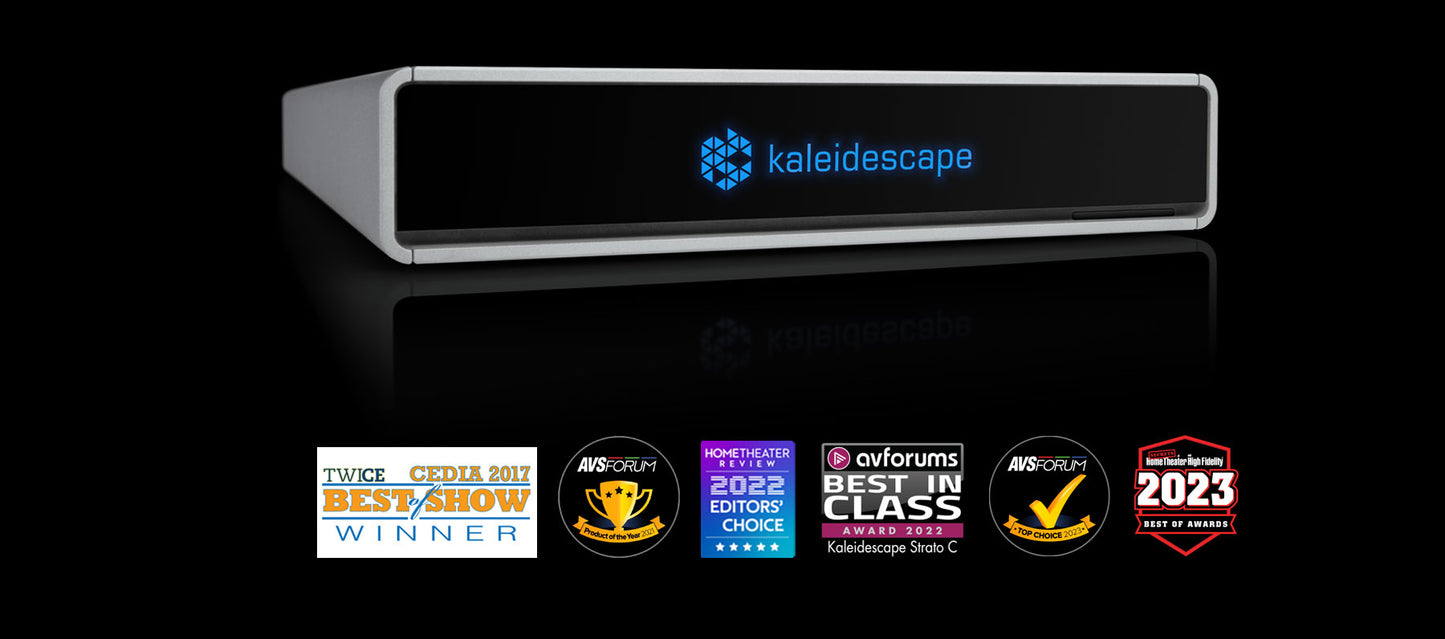

Kaleidescape Strato C Movie Player
Kaleidescape Strato C Movie Player
Couldn't load pickup availability
- Free Delivery
- Demo Available
- Trade-in Available
- 3 year Warranty
Share
Details
Description
STRATO C MOVIE PLAYER
- Plays movies from Terra Prime, Terra, and Strato S
- Compact and quiet for dense rack installations or local placement in a room
- New wall mount option lets you mount the Strato C behind a TV for local placement
- Ideal for additional viewing zones in residential and marine applications
- Custom 1RU rack shelf with faceplates for one or two players sold separately
Kaleidescape designed the Strato C movie player to provide an immersive home cinema experience, with audio and video playback that would rival commercial theaters. Strato C is a premium 4K Ultra HD movie player that supports high dynamic range (HDR) and lossless multichannel audio including Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio. Strato C plays movies from a Terra Prime, a Terra, or a Strato S over a network, with bit rates up to 100 Mbps and frame rates up to 60 fps.
Strato comparison table
| player | Strato V | Strato C |
| aluminum case | black | silver |
| case size (in) | 7.9 x 1.5x 10 | 7.9 x 1.5x 10 |
| movie playback | 4K SDR, HDR10, Dolby Vision | 4K SDR, HDR10 |
| on-screen UI | HD | 4K |
| runs standalone | yes | no |
| download a 4K Kaleidescape movie in | 10 minutes (with gigabit internet) | requires server |
| capacity, terabytes | 1 | none |
| capacity, 4K movies (approx) | 10 | none |
| typical power consumption, W | 7.5 | 19 |
| lossless audio decode to stereo, 5.1, 7.1, 5.1.2 PCM | yes | passthrough only |
| HDMI | 2.1 | 2.0a |
| separate HDMI audio out | no | yes (HDMI 1.4) |
| plays all 4K movies in store | yes | yes |
| plays all HD movies in store | most | yes |
| plays all SD movies in store | yes | yes |
| on-screen movie store | yes | yes |
| Co-Star pairing with disc-based Premiere system | yes | yes |
Specifications
Specifications
DIMENSIONS
• 7.87in × 1.52in × 10.0in (W × H × D) (20.0cm × 3.9cm × 25.4cm)
WEIGHT
• 4.2lb (1.91kg)
POWER
• Max consumption: 20W
• Typical: 17W
• High power standby: 12W
• Low power standby: 0.50W
• External power adapter: 100-240VAC to 12VDC @ 5A, 60W with detachable line cord
NETWORK
• 100Base-TX/1000Base-T Ethernet (RJ45 connector)
OTHER CONNECTION
• USB 3.0 (reserved)
CONTROL
• Ethernet control from Crestron, AMX, Control4, Savant, the Kaleidescape App for iPad, and other apps & control systems
• Kaleidescape Remote included
• Front-panel IR receiver window
• IR input (1/8in mini plug)
ENVIRONMENT
• Operating temperature: 41 to 95°F (5 to 35°C)
• Storage temperature: -4 to 140°F (-20 to 60°C)
• Relative humidity: 20 to 80% (operation) 5 to 90% (storage)
• Maximum operating altitude: 10,000ft (3,048m)
• Heat output: 69 BTU/hr (20W) max
• Airflow: 3.5 CFM (6 m3/hr) max
VENTILATION
• Minimum 1in (2.5cm) space at the front
• Minimum 2in (5cm) space at the rear
RACK MOUNT (sold separately)
• Rack shelf with faceplates is available for mounting 1 or 2 (centered or sideby-side) Strato C players in a 19in rack, 1U space
CERTIFICATIONS
• CSA 62368-1
• CSA 60950-1
• IEC 62368-1
• IEC 60950-1
• FCC CLASS B
• CE
• RoHS Compliant
VIDEO OUTPUT
• HDMI 2.0a (labelled “VIDEO”)
• HDCP 2.2 copy protection
VIDEO DISPLAY FORMATS
• Resolutions: 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p
• Chroma: 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, 4:2:2 12-bit up to 2160p60, 4:2:0 8/10/12-bit at 2160p50/60 only
• Color spaces: BT.2020, BT.709, BT.601
• Aspect ratios: 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable
• HDR: HDMI 2.0a with support for SMPTE ST 2084 EOTF, SMPTE ST 2086 metadata
AUDIO OUTPUTS
• HDMI 2.0a (combined with video on the VIDEO connector)
• HDMI 1.4 (audio-only on the DIGITAL AUDIO connector)
• Digital (coaxial RCA and TOs-link connectors)
AUDIO FORMATS
• Dolby Atmos
• Dolby TrueHD
• Dolby Digital
• DTS:X
• DTS-HD Master Audio
• DTS Digital Surround
• PCM
• MPEG audio
STORAGE
• No internal storage. Strato C accesses content stored on a Terra or Strato (with internal storage) when connected via network
MEDIA
• Kaleidescape movie store downloads, including high-bit-rate 4K Ultra HD movies in 10-bit color, with and without high dynamic range (HDR), and movies that precisely match the quality available on Blu-ray Disc and DVD
• DVD, DVD-R, DVD-RW, DVD+R, DVD+RW (from Kaleidescape Disc Server)
