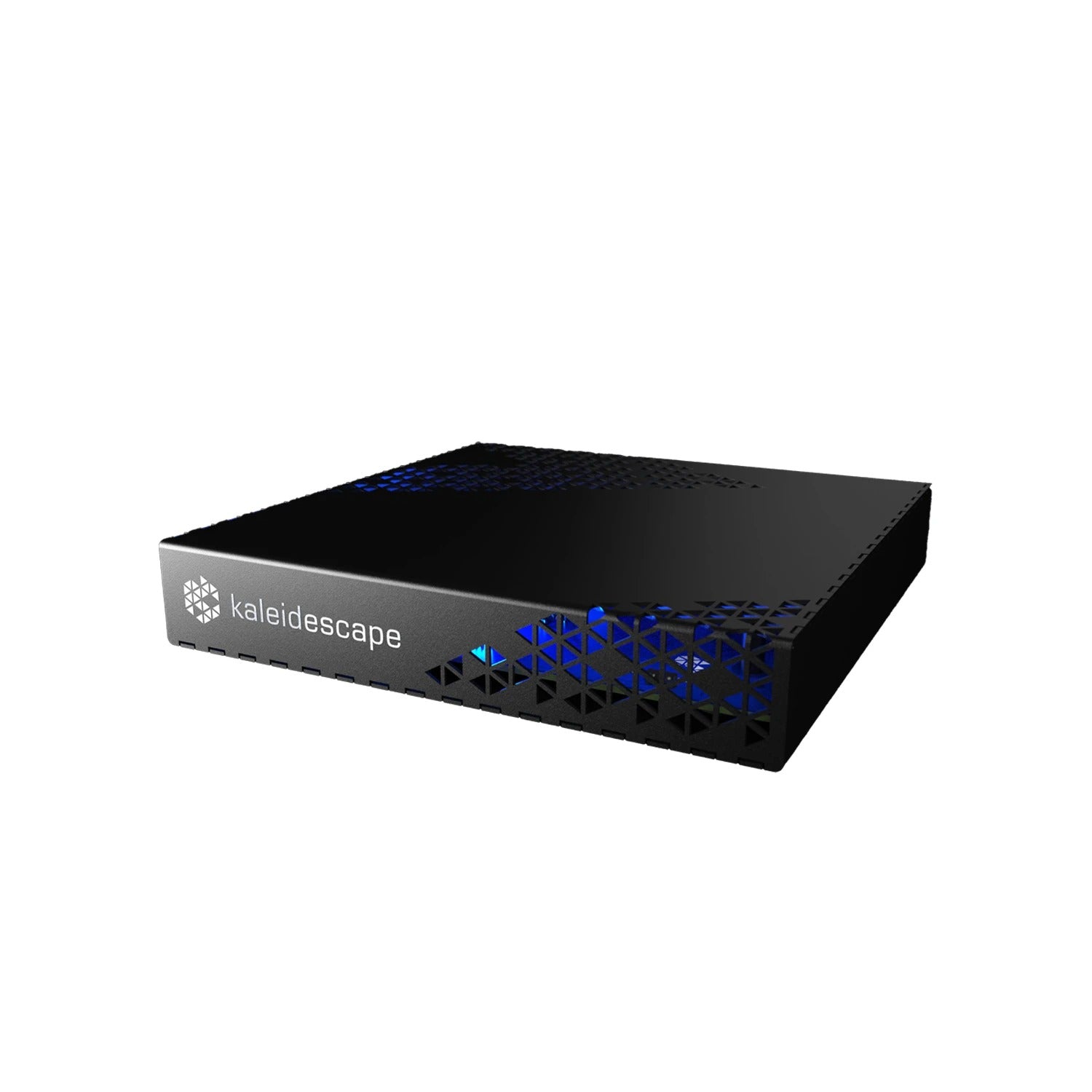

Strato E Movie Player
Kaleidescape’s new entry-level 4K movie player. Providing lossless audio and reference-quality 4K video output, Strato E works on its own or as part of a larger Kaleidescape system. Available for residential, marine and commercial theatres.
- Entry-level movie player with 4K video output.
- Lossless spatial audio. Clear dialog and immersive sound effects.
- Reference video for every 4K display. SDR, HDR10, and Dolby Vision.
- Standalone. Includes 480GB solid-state storage.
- Scalable. Add a server for more movies on demand and more players for whole-house entertainment.
On the Go
Visionary
Lossless Audio
Standalone
Specifications
Specifications
| Product Specifications | |
|---|---|
| Dimensions | 6.4in x 1.1in x 6.4in (W x H x D) (16.3cm x 3cm x 16.3cm) |
| Weight | 1.6lb (0.73kg) |
| Power | |
| Max Consumption | 13W |
| Typical | 4.3W |
| High Power Standby | 3.8W |
| Low Power Standby | 0.5W |
| Power Adapter | External power adapter with detachable line cord: 100-240VAC to 12VDC @ 5A, 60W, isolated ground |
| Network | |
| Connection | Gigabit Ethernet (1000 Base-T) |
| Other Connection | |
| USB | For disc cataloging |
| Control | |
| IR Receiver | Front-panel IR receiver |
| Ethernet Control | Kaleidescape control protocol over Ethernet (supported by Josh.ai, Crestron, AMX, Control4, Savant, Kaleidescape apps, and other control systems) |
| Lutron Control | Lutron RA3 and HomeWorks control over Ethernet |
| Environment | |
| Operating Temperature | 41°F to 95°F (5°C to 35°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Relative Humidity | 20–80% (operation), 5–90% (storage) |
| Maximum Operating Altitude | 10,000ft (3,048m) |
| Heat Output | 44 BTU/hr (13W) max |
| Airflow | None |
| Fan Noise | Silent (no internal fan) |
| Ventilation | |
| Front Clearance | Minimum 1in (2.5cm) |
| Rear Clearance | Minimum 2in (5cm) |
| Mounts (Sold Separately) | |
| Rack Shelf | Available for mounting 1 or 2 (centered or side-by-side) Strato E players in a 19in rack, 1U space |
| Wall Mount | Available for mounting behind TV displays |
| Certifications | |
| CSA 62368-1, IEC 62368-1, FCC CLASS B, CE, RoHS Compliant | |
| Video Output | |
| HDMI | HDMI 2.1 with HDCP 2.3 copy protection |
| Video Display Formats | |
| Resolutions | 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i/p, 480i/p |
| Chroma | 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, 4:2:2 12-bit up to 2160p60, 4:2:0 8/10/12-bit at 2160p50/60 only |
| Color Spaces | BT.2020, BT.709, BT.601 |
| Aspect Ratios | 1.78:1 and 2.35:1 (CinemaScape), automatic or user-selectable |
| HDR | Dolby Vision (standard and low-latency) and HDR10 (SMPTE ST 2084, 2086) |
| Playback | Movie playback up to 4K; UI in 2K |
| Audio Outputs | |
| HDMI | HDMI 2.1 (combined with video) |
| Audio Formats (HDMI Connector) | |
| Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, DTS-HD High Resolution Audio, Dolby Digital, DTS Digital Surround, Dolby MAT PCM, PCM (up to 7.1ch, 96kHz/24-bit) | |
| Storage | |
| Standalone | Internal 480GB SSD (approx. 6 Kaleidescape high-bitrate movies) |
| Grouped | Strato E can access content stored on a Terra when connected and grouped via local network |
| Media | |
| Downloads | Kaleidescape Movie Store downloads: 4K Dolby Vision, 4K HDR10, 4K SDR, HD, and SD quality |
