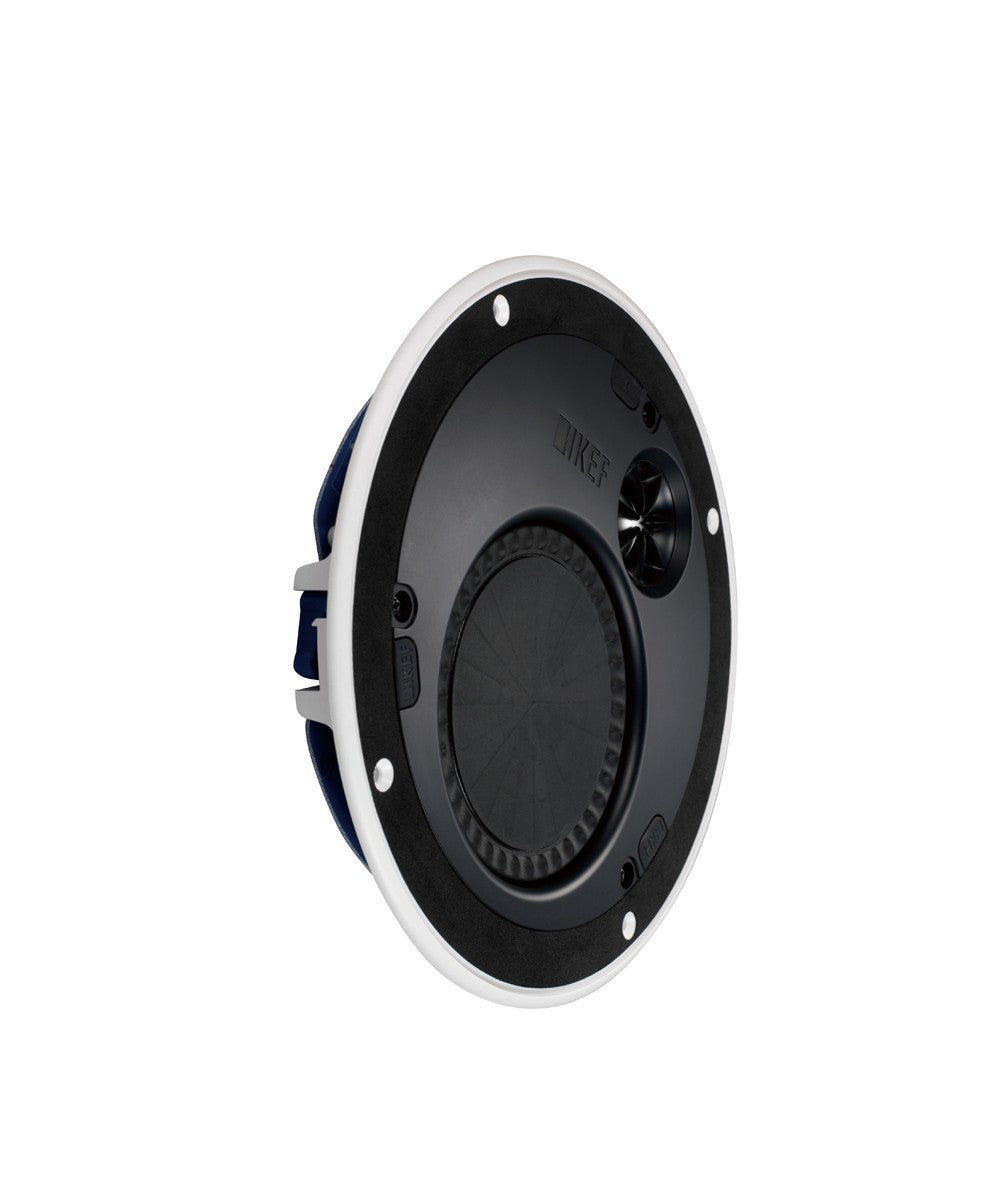

Ci160TR
Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying KEF’s uncompromised sound quality where space above the ceiling is at a premium. Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments and super-premium motor yachts.
Key Features
- <36mm mounting depth allows fitment to very restricted cavities
- Ultra-low profile LF unit with excellent bass extension
- Vented tweeter with KEF's unique 'tangerine' waveguide for natural HF response and wide, even dispersion
- Rigid flat diaphragm assures clean upper bass and mid-range response
- Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
- Fast, versatile installation on virtually any surface via dogleg or direct screw fastening
Specifications
Specifications
| NOMINAL IMPEDANCE | 8 Ω |
|---|---|
| SENSITIVITY | 87dB (2.83V/ 1m) |
| FREQUENCY RESPONSE | 110Hz - 24kHz (±6dB) open backed |
| CROSSOVER FREQUENCIES | 1.7kHz |
| DRIVE UNITS | LF: 115mm (4.5 in.) dual layer MF HF: 25mm (1 in.) aluminium HF |
| AMPLIFIER POWER | 10-100W |
| PRODUCT EXTERNAL DIMENSIONS | Diameter: 234.6mm (9.24 in.) Depth: 40mm (1.57 in.) |
| CUT-OUT DIMENSIONS | 196mm (7.71 in.) |
| MOUNTING DEPTH FROM SURFACE | 36mm (1.42 in.) |
| MINIMUM WALL THICKNESS | 10mm (0.39 in.) |
| MAXIMUM WALL THICKNESS | 25.5mm (1 in.) |
| OPTIONAL ROUGH IN FRAME | RIF160R |
| OPTIONAL REAR ENCLOSURE | RNC160R |
| NET WEIGHT | 1 kg |
