KEF

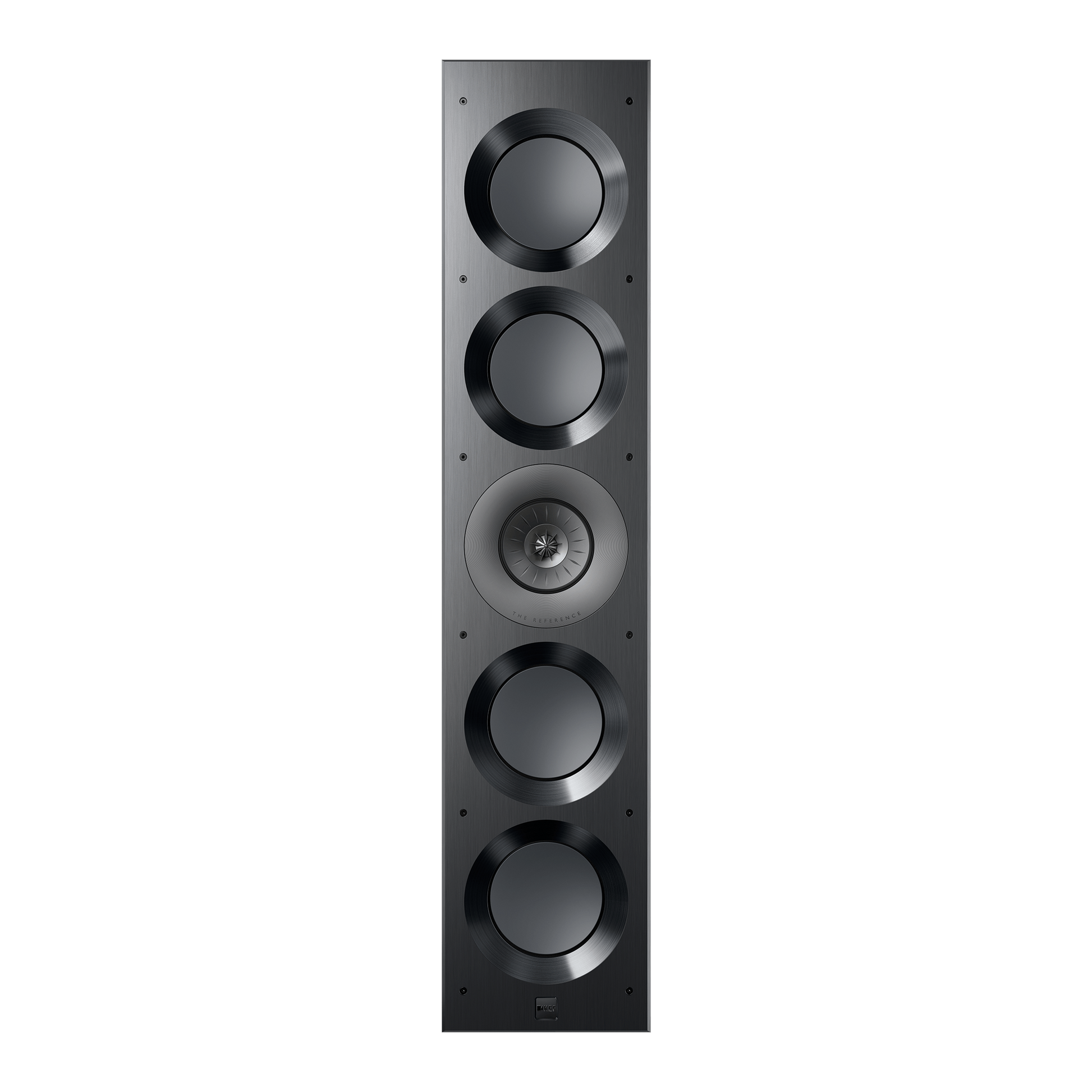

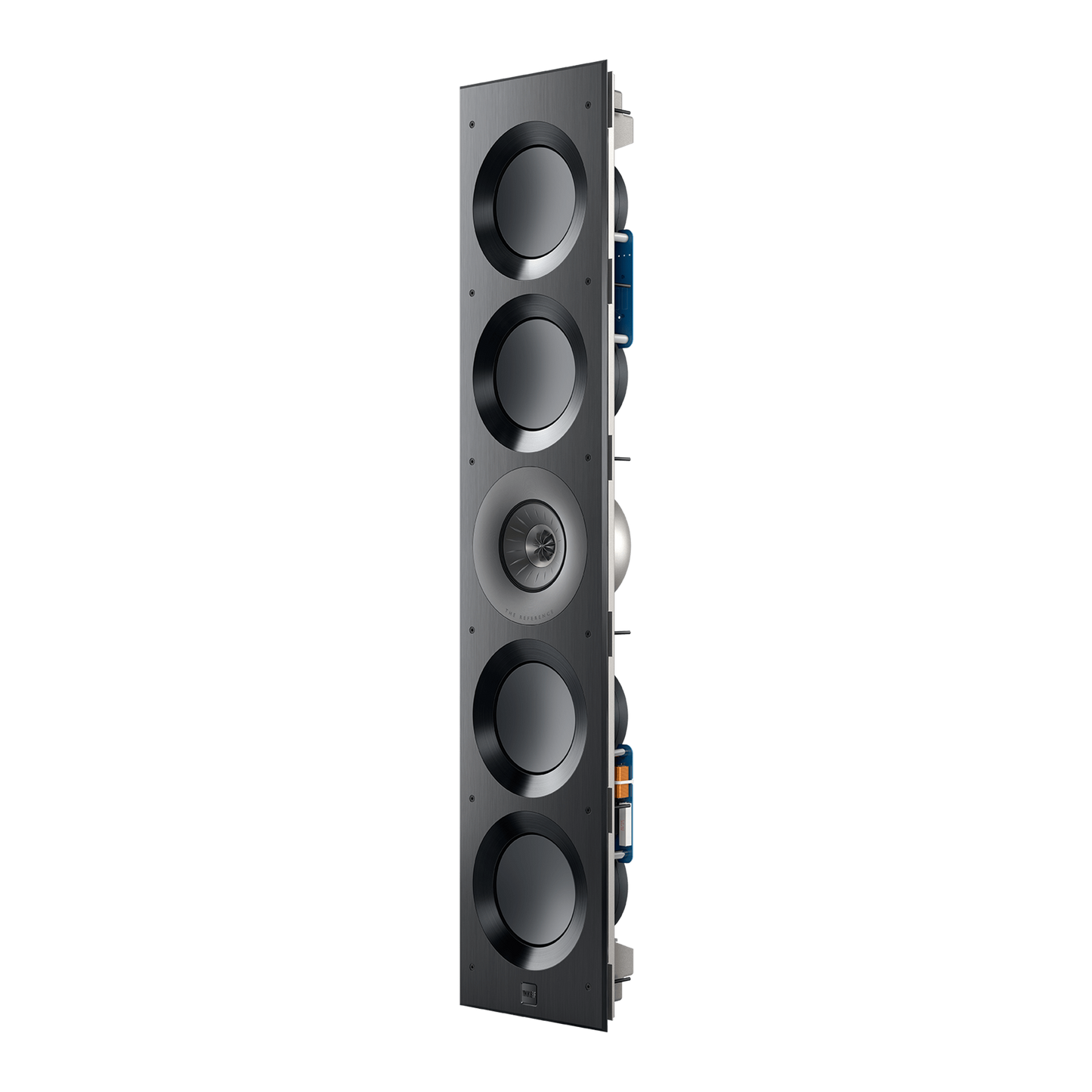

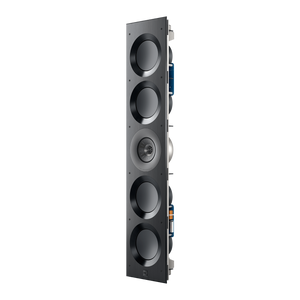

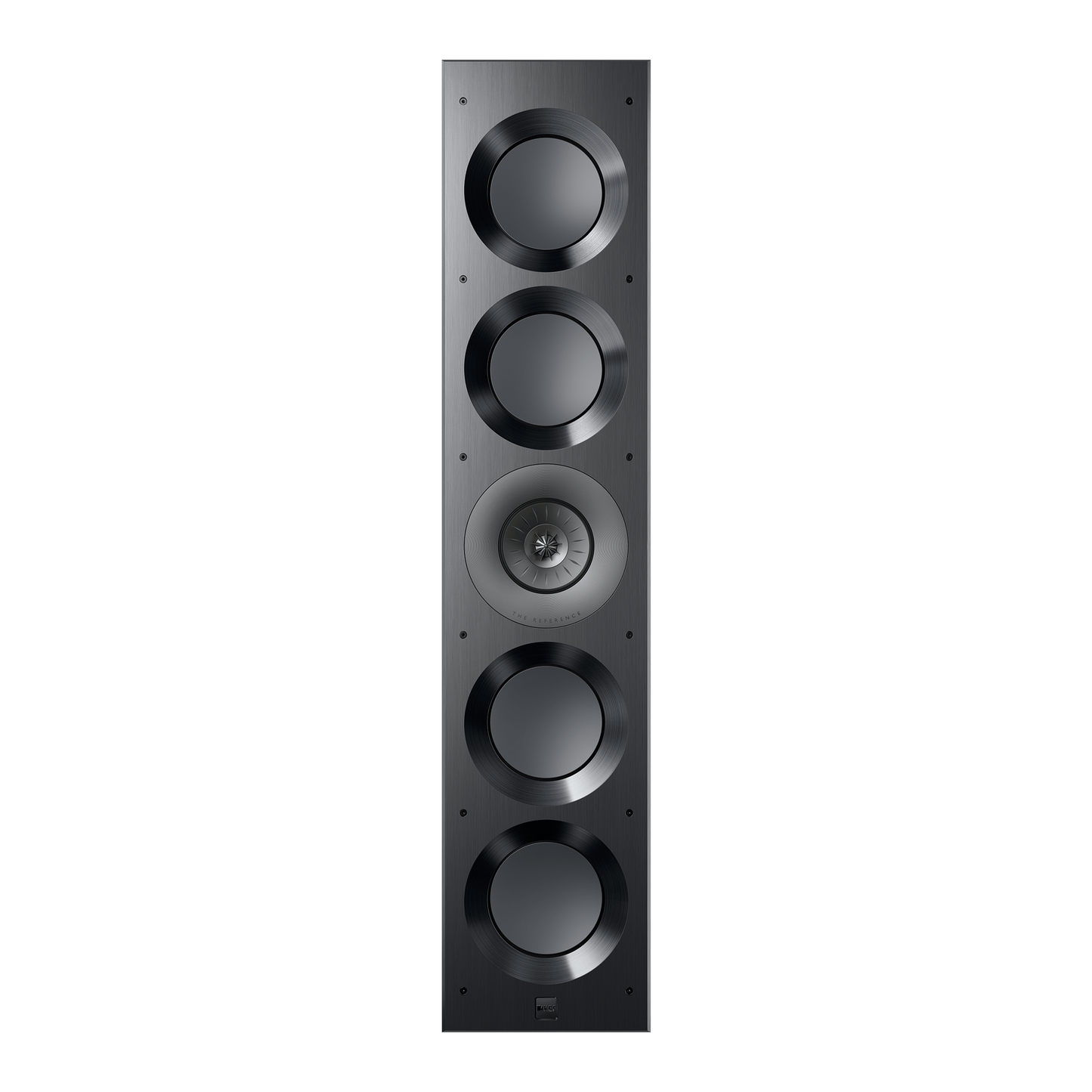

KEF Ci5160REFM-THX In-Wall Speaker
KEF Ci5160REFM-THX In-Wall Speaker
Couldn't load pickup availability
Share
Details
Description
KEF’s first THX® Certified Dominus speaker
Realistic, high-fidelity sound
Featuring four 160mm (6.5in.) bass drivers, Ci5160REFM-THX delivers a clean, rich and highly articulate bass response down to 32Hz. Together with the massive, vented motor system that was designed specifically for an in-wall environment, making Ci5160REFM-THX disappear into the room to leave an awe-inspiring, immersive experience.
THX® Certified Dominus
Ci5160REFM-THX is THX® Certified Dominus – the largest and most powerful THX® performance class, which is the closest approximation to a public cinema experience that one can achieve at home.
Metamaterial Absorption Technology
Absorbs 99% of the unwanted sound
Handcrafted in UK
As our high-end speakers, Ci-Reference is designed, engineered, and hand-built in Maidstone, UK
Uni-Q®
Acts as a single point source to enlarge the 'sweet spot' and disperse sound more evenly.
Finished to perfection
Available in Aluminium Black/Grey, a hairline finished aluminium baffle in black, with the Uni-Q driver array in grey.
Hide your speakers, not your sound
The paintable magnetic metal grille and optional black cloth grille ensure the speaker seamlessly blends into the environment.
Total attention to detail
The 11mm thick precision-machined aluminium baffle is engineered to eliminate vibration and provides a stoic platform for the powerful drivers to perform at their best.
Specifications
Specifications
| Nominal Impedance | 4Ω |
| Sensitivity (2.83V/1m) | 92dB |
| Frequency Response (±6 dB) open-backed | 40 - 28kHz |
| Frequency Range (-10 dB) | 32 - 45kHz |
| Nominal Coverage (degrees) | 150° |
| Crossover Frequency | 600Hz, 3000Hz |
| Drive Units | LF: 4 x 160mm (6.5in.) MF: 125mm (5.25in.) Uni-Q HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology |
| Recommended Amplifier Power | 50 - 500 W |
| Recommended High-pass Filter (Hz) | 35Hz - 80Hz |
| Product External Dimensions (H X W X D) | 1070 x 230 x 105.7mm (42.13 x 9.06 x 4.16in.) |
| Cut-out Dimensions (H X W) | 1052 x 209mm (41.42 x 8.23in.) |
| Net Weight | 21.7kg (47.8lbs.) |
| Mounting Depth From Surface | 99mm (3.9in.) |
| Optional Rough In Frame | RIF5160L |
| Ideal Rear Volume (L) | 90 |
| Minimum Rear Volume (L) | 40 |
| Max SPL (dB) | 116dB |
| Certification | THX Certified Dominus |
| Wall Thickness (Maximum) | 40mm (1.58in.) |
| Wall Thickness (Minimum) | 6mm (0.24in.) |
| Remarks | 1 Metamaterial Absorption Technology is a joint development with Acoustic Metamaterials Group. KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, and Ultra are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions. All rights reserved. |
