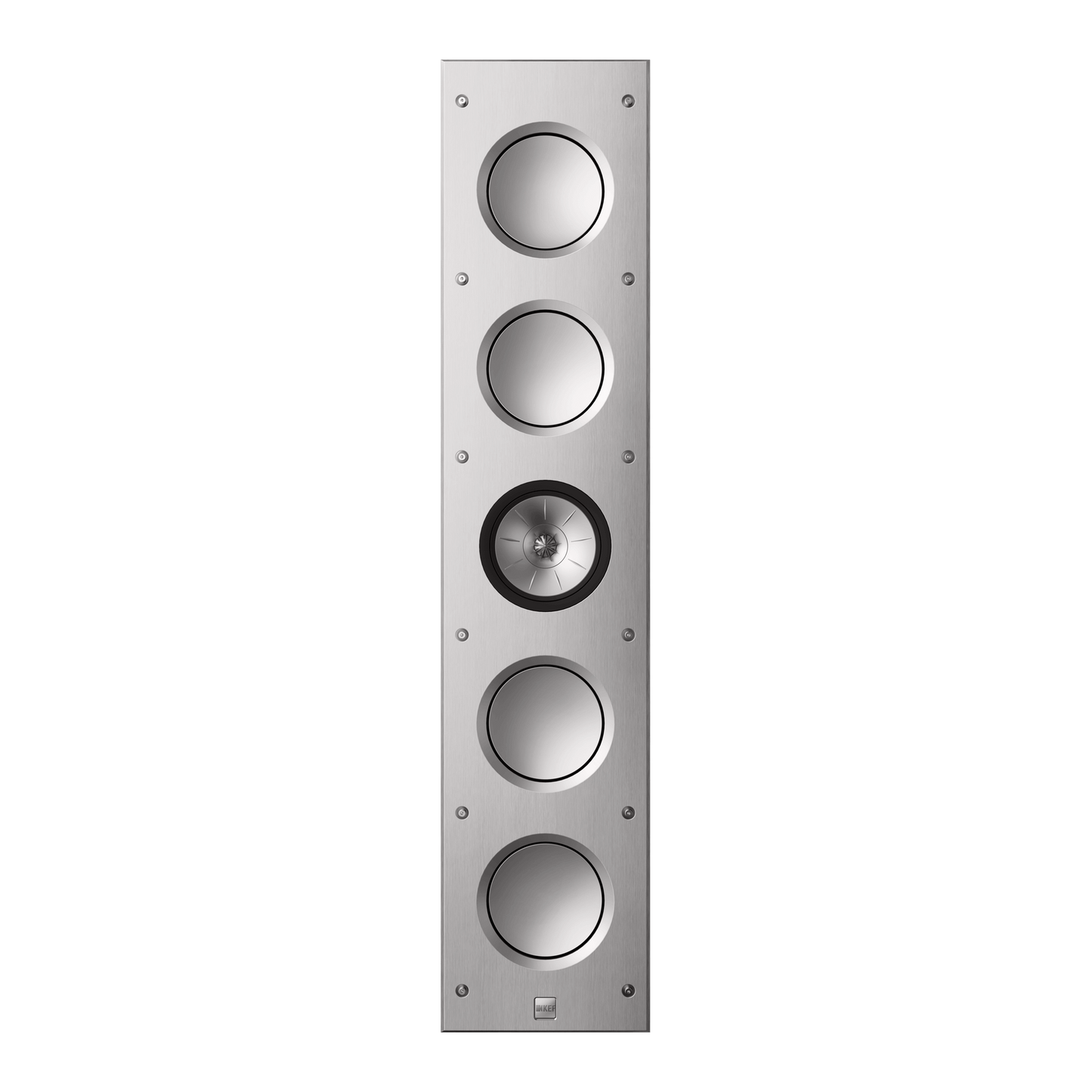

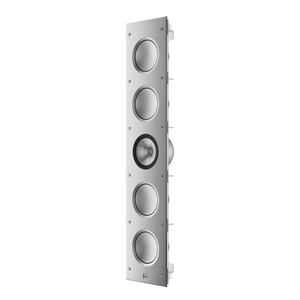

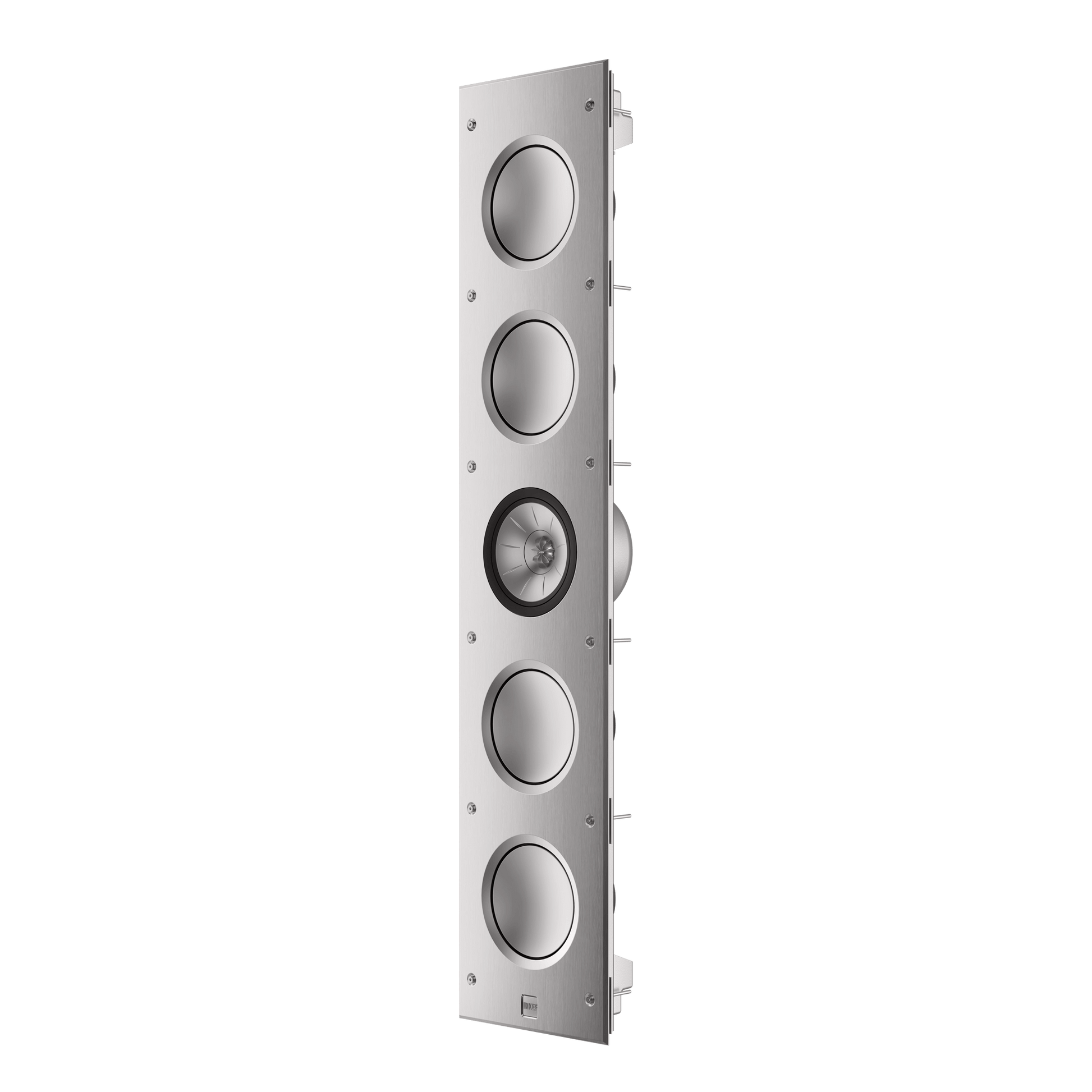

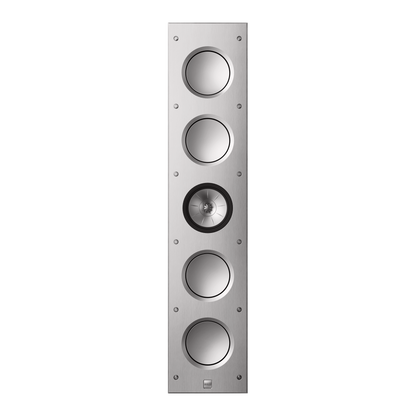

KEF Ci5160RLM-THX In-Wall Speaker
KEF Ci5160RLM-THX In-Wall Speaker
Couldn't load pickup availability
Share
Details
Description
Ultra-high performance architectural speaker with MAT™
Metamaterial Absorption Technology
Absorbs 99% of the unwanted sound
Uni-Q®
Acts as a single point source to enlarge the ‘sweet spot’ and disperse sound more evenly.
THX Certified
Ci5160RLM-THX delivers ultra-high performance with true theatre sound quality for large theatres and living rooms and it is THX® Certified Ultra.
True bass definition
Four hybrid aluminium bass drivers for tight, deep, controlled bass.
Total attention to detail
The 5.5 mm thick precision-machined aluminium baffle is engineered to eliminate vibration and provides a stoic platform for the powerful drivers to perform at their best.
Hide your speakers, not your sound

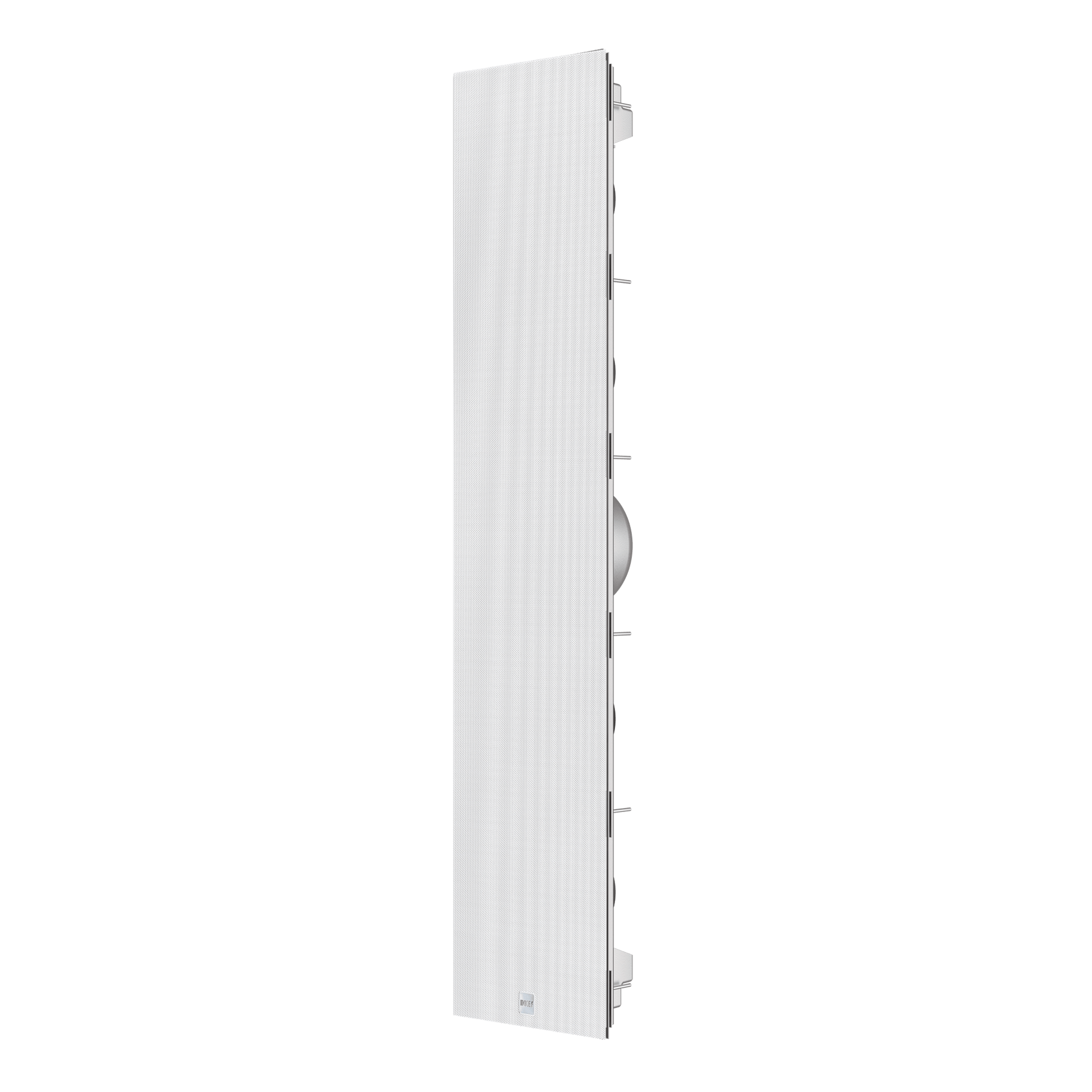

The paintable magnetic metal grille and optional black cloth grille ensure the speaker seamlessly blends into the environment.
Finished to perfection
Available in Aluminium Silver, including tone matched Uni-Q and bass drivers.
Specifications
Specifications
| Series | R Series |
| Nominal Impedance | 4Ω |
| Sensitivity (2.83V/1m) | 89dB |
| Frequency Response (±6 dB) open-backed | 40 - 28kHz |
| Frequency Range (-10 dB) | 32 - 45kHz |
| Nominal Coverage (degrees) | 150° |
| Crossover Frequency | 640Hz, 2.6kHz |
| Drive Units | LF: 4 x 160mm (6.5in.) MF: 160mm (6.5in.) Uni-Q HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology1 |
| Recommended Amplifier Power | 50 - 350 W |
| Recommended High-pass Filter (Hz) | 35Hz - 80Hz |
| Product External Dimensions (H X W X D) | 1070 x 230 x 105.7mm (42.13 x 9.06 x 4.16in.) |
| Cut-out Dimensions (H X W) | 1052 x 209mm (41.42 x 8.23in.) |
| Net Weight | 18.7kg (41.1lbs.) |
| Mounting Depth From Surface | 99mm (3.9in.) |
| Optional Rough In Frame | RIF5160L |
| Max SPL (dB) | 110dB |
| Certification | THX® Certified Ultra |
| Wall Thickness (Maximum) | 40mm (1.58in.) |
| Wall Thickness (Minimum) | 6mm (0.24in.) |
| Remarks | 1 Metamaterial Absorption Technology is a joint development with Acoustic Metamaterials Group. KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, and Ultra are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions. All rights reserved. |
