Ultimate flagship speaker cables
LUXMAN’s flagship 15000 series cables have been engineered to optimize the wide range of breakthrough technologies developed,and know-how gained, from decades of experience in developing class leading audio amplifiers.

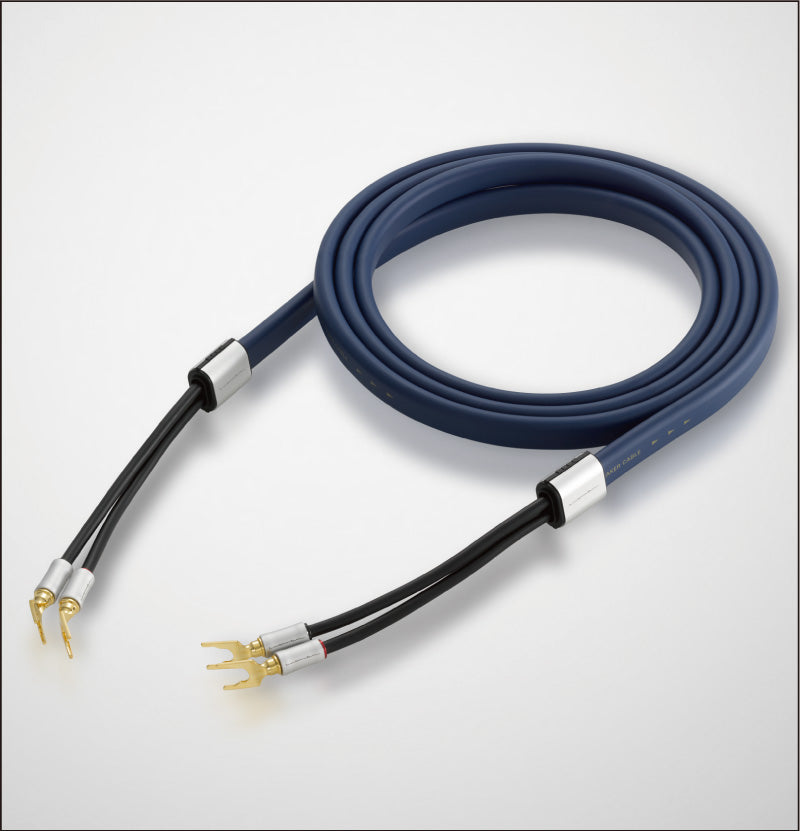

JPS-15000
The LUXMAN 15000 series speaker cable features large diameter core utilizing high-purity 7N CLASS D.U.C.C. (99.99998%+ pure copper* ) to ensure lower impedance. Each JPS-15000 conductor is comprised of 60 strands of 7N Class D.U.C.C and 40 strands of Oxygen-free copper (OFC). This structure ensures crystal-clear, pure, relaxed high range characteristics and accurate, rich bass characteristics.The non-twisted structure of binding hot and cold lines in parallel eliminates unwanted inductance. JPS-15000 features newly developed, easy to mount, high quality Y-lug terminals constructed of high conductivity materials. A newly developed adjustable branch holder with integral aluminum cover allows the length from the terminal to the holder to be easily adjusted without compromising the structural performance or appearance.
* 7N-Class D.U.C.C.(Dia Ultra Crystallized Copper): Using the world's highest purity of copper, while keeping the same crystal size of conventional high-purity conductors, D.U.C.C. allows for an even higher grade conductor with optimized alignment of the crystal structure resulting in significantly improved conductivity dedicated for high end audio cables. D.U.C.C. is a registered trademark of Mitsubishi Cable Industries, Ltd.
Specifications
Specifications
Structure | Non-twisted construction |
Core wire | High-purity copper (7N CLASS D.U.C.C.)wire |
Φ0.26mm x 60pcs, | |
Oxygen-free copper (OFC) wire, Φ0.26mm x 40pcs | |
Insulator / Sheath | Polyethylene (red, primary color)/PVC(blue) |
Drain wire | Oxygen-free copper (OFC) wire, Φ0.08mm x 30pcs |
Conductor resistance
|
4mΩ/m or less (at 20°C) |
Insulation resistance | 5000MΩ/m or more (at 20°C) |
Capacitance | 86pF/m or less |
Withstand voltage | 1,000VAC (for 1 minute) |
Cable outside diameter | 10.5mm x 20mm |
