Lyngdorf Audio

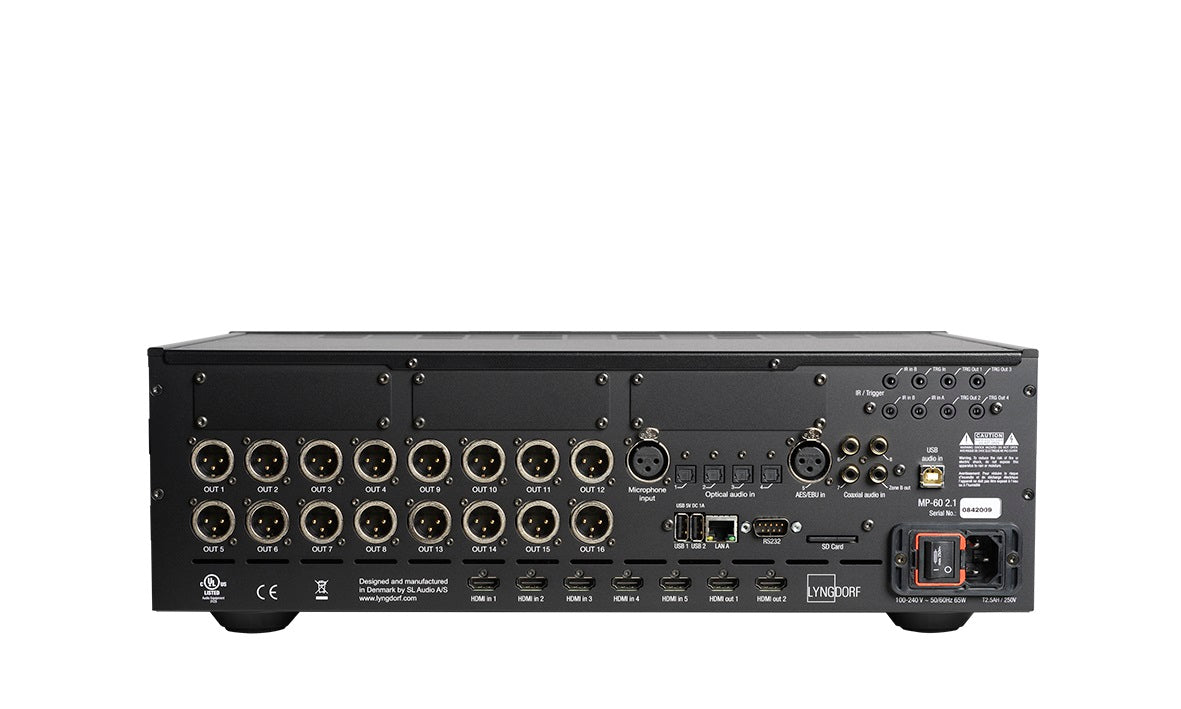

Lyngdorf MP60 2.1 Surround Sound Processor
Lyngdorf MP60 2.1 Surround Sound Processor
Couldn't load pickup availability
- Free Delivery
- Demo Available
- Trade-in Available
Share
Details
Description
Lyngdorf MP-60 2.1
MP-60 2.1 is equipped with all the advanced technologies for which Lyngdorf Audio is known, including the renowned room correction system RoomPerfect and the unsurpassed quality in digital signal processing. Together with the Steinway Lyngdorf version, the P300, the MP-60 2.1 is developed at the group headquarters in Skive, Denmark.
State-of-the-art HDMI processing
The MP-60 2.1 processor is intuitive to use and offers extraordinarily easy installation. It decodes up to 16 native audio channels which can be mapped out intelligently through the sleek website interface. The MP-60 2.1 offers full support of the latest immersive surround formats including Dolby Atmos®, DTS:X® Pro and AURO-3D®.
With five HDMI inputs and two outputs, this new masterpiece from Lyngdorf Audio now supports HDMI 2.1 including features eARC, Dynamic Lip-Sync and QMS (Quick Media Switching) as well as the latest decoding and post-processing formats. The MP-60 2.1 supports 40 Gbps fixed rate link (FRL) and 18 Gbps transition minimized differential signaling (TMDS) video rates. The MP-60 2.1 supports Variable refresh rate (VRR), Quick Frame Transport (or Fast Vactive), and auto low latency mode (ALLM) sup- port and high dynamic range (HDR) metadata passthrough for HDMI dynamic HDR, HDR10+, and Dolby VisionTM.
eARC will allow for a full Dolby Atmos audio bitstream being returned to the processor from the television, ensuring full audio quality from the TV’s built-in media players.
Specifications
Specifications
| Decoding | Dolby Atmos® Dolby Digital EX & Plus Dolby TrueHD DTS:X PRO DTS ES Discrete 6.1 DTS ES Matrix 6.1 DTS 96/24 DTS-HD High Res. Audio DTS-HD Master Audio AURO 3D® 16 native channels |
|---|---|
| Post processing options | Dolby Surround AURO-MATIC® DTS Virtual:X DTS Neural:X |
| Audio inputs | 8 x HDMI™ (≤192kHz/24bit) 1 x AES/EBU S/P-DIF input (≤192kHz/24bit) 3 x S/P-DIF coaxial inputs (≤192kHz/24bit) 4 x S/P-DIF optical inputs (≤96Hz/24bit) 1 x USB audio input (≤192kHz/32bit) 1 x microphone input (XLR) for RoomPerfect™ |
| Audio outputs | 16 x XLR analog outputs (5.0 Vrms) 1 x SPDIF coax digital ZONE output (Fix 96kHz/24bit) |
| Audio specifications | Frequency response: ±0,5dB from 20 to 20,000 Hz Total harmonic distortion: 0.005% max from 20 to 20,000 Hz |
| EQ | RoomPerfect™ Subwoofer level assistant 32 x adjustable voicings holding ≤8 shelving high/low pass or parametric filters with adjustable gain and Q |
| Media player | Internet radio (vTuner) Airplay Spotify Connect Roon Endpoint (awaiting certification) DLNA Support of FAT32 based media storage |
| Video inputs | 8 x HDMI™ (2.0b – HDCP 2.2) accepts 3D 30Hz, 4K 60Hz (18 Gbps) accepts HDR Dolby Vision and HLG |
| Video outputs | 2 x HDMI™ (HDCP 2.2) 1 x HDBaseT™ |
| Video scaling | Upscaling of all video to 4K ultra high definition, no downscaling of 4K video |
| Control interfaces | 1 x DB9 RS232 connector 2 x IR sensor inputs 1 x IR output (loop from one of the sensor inputs) 1 x trigger input 4 x trigger outputs 1 x RJ45 ethernet LAN connector 2 x USB A connectors 1 x SD card slot (Backup – storage for system software and settings) |
| Accessories included | RoomPerfect™ microphone Microphone stand Microphone cable RF remote control |
| Optional module | 16 channel DCI-compliant digital AES/EBU input for movie servers (≤192kHz/32bit) / DB25) 16 channel digital AES/EBU speaker output channels (Fix 97,565kHz/24bit / DB25) 16 channel AES67 digital AES/EBU speaker output channels (Fix 48kHz/24bit / RJ45) |
| Placement options | Rack mount and freestanding |
| Dimensions (H x W x D) | 147 x 450 x 370mm |
| Weight | 9 kg |
