Meet the madVR Envy Core
The most advanced, highest quality video processing for more modest budgets
The all-new madVR Envy Core brings the same cutting-edge video processing features as our award-winning Envy lineup to a broader audience. Designed for versatility, the Envy Core is perfect for more modest home theaters, media rooms, and living spaces at an affordable price. It delivers our best-in-class awarded 4K HDR dynamic tone mapping, truly instant aspect ratio handling, subtitle management, next-generation non-linear stretch for scope and 16:9 screens, stunning 4K upscaling, specialized sharpening and detail enhancement, support for 1D and 3D LUT calibration, IP based control system support, and much more. For an even more enhanced experience, the aftermarket Core Premium Package adds additional features and doubles the warranty to four years.
SPECIFICATIONS
| Model | Envy Core |
| HDR Dynamic Tone Mapping (DTM) | |
| Frame by Frame 4K HDR Dynamic Tone Mapping | ✔ |
| Preset HDR "Looks" to Choose From, Based on Your Preferences | ✔ |
| Easily Adjustable Highlight and Global Saturation for HDR | ✔ |
| Contrast Recovery. Maximises Contrast Based on HDR Histogram | ✔ |
| Highlight Recovery. Maximises Fine Detail in Bright Image Areas | ✔ |
| Shadow Detail Recovery, Maximises Shadow Detail | ✔ |
| Motion Handling and Scaling | |
| Ring Free and Artifact Free Chroma Upscaling | ✔ |
| Sharp and Ring Free High Quality Downscaling | ✔ |
| AI Based Upscaling | ✔ |
| AI Based Upscaling to 5K24/50/60, 8K24/60, and Any Custom Resolution up to 8K60 1 | - |
| MotionAITM: Per-pixel, AI Based Motion Interpolation | - |
| Aspect Ratios Management | |
| Bidirectional Non Linear Stretch For Scope Screens, Remove or Reduce Side Bars | ✔ |
| Bidirectional Non Linear Stretch for 16:9 Screens, Remove or Reduce Top or Bottom Bars | ✔ |
| Define and Fit Content to Any Aspect Ratio Screen, Including Custom ARs | ✔ |
| Image Shift For CIW Projection. Shift Black Bars on 16:9 Screens To Top or Bottom | ✔ |
| Convergence Correction | ✔ |
| Automatic, Truly Instant Aspect Ratio and Black Bar Detection, Including IMAX Format | ✔ |
| AI Based Anamorphic Stretch Upscaling | ✔ |
| Subtitle Management, Fit Subtitles by Dynamically Resizing The Image | ✔ |
| Dynamic Subtitle Overlay, Reposition Subtitles WithoutResizing The Image | - |
| Automatic Activation of JVC and Sony Lens Memories, Via IP Control | - |
| Geometry Correction, For A-lens Barrel Distortion, Curved Screens, Off-Axis PJ Installs | - |
| Artifact Reduction and Edge/Texture Enhancement | |
| Sharpening and Edge Enhancement | ✔ |
| Texture Detail Enhancement | ✔ |
| AI Based Compression Artifact Reduction | - |
| AI Based Grain and Noise Reduction | - |
| Banding Reduction | - |
| Ringing Reduction | - |
| General | |
| 96bit Per Pixel Floating Point Using 4:4:4 For All Algorithms | ✔ |
| Extreme Quality Dithering Algorithm | ✔ |
| Smooth Motion Algorithm For Displays With no or Poor 24 FPS Support | ✔ |
| Automatic Optimisation of Algorithm Quality Levels | ✔ |
| Advanced 3D LUT Calibration 3 | ✔ |
| Massive 3D and 1D LUTs, Up to 256^3 3D and 4,096 Point 1D, 12 Bit Precision | ✔ |
| Free Access to The Envy Academy Online Course of 50 Lessons | ✔ |
| Firmware Update Notices, With One Touch Download and Installation From Envy Menu | ✔ |
| Remote Technical Assistance From Authorised Dealers With madAssist | ✔ |
| Highly Intuitive User Interface, True Plug and Play Installation in Minutes | ✔ |
| Frame Packed 1080p24 3D Support | ✔ |
| IP Control: Crestron, Crestron Home, Control4, Savant, RTI, Others | ✔ |
| Direct AV Gear Integration AVRs, Displays, Masking) - no Control System Needed 5,10 | - |
| SmartMenus (Instantly Return to Previous Menu Option) | - |
| 3D Luminance Boost. Up to 4 x Brighter to Compensate for Active Shutter Glasses | - |
| Desired SDR Luminance Option To Limit SDR Brightness | - |
| Maximum Number of Profiles | 50 |
| Built In Test Patterns | Standard |
| Fan Curves For Cooling and Noise Reduction | Silent, Balanced, Rack |
| Supported Max Output Resolutions and Frame Rates | All up to 4K120 |
| Supported Max Input Formats | 60 Hz: 4096x2160 in 12 bit 4:2:0, 4:2:2 or 8 bit 4:4:4, RGB |
| 30 Hz: 4096x2160 in 12 bit 4:2:0, 4:2:2 or 12 bit 4:4:4, RGB | |
| Product Roadmap | |
| AI Based 4K HDR Dynamic Tone Mapping Processing | ✔ |
| Gaming Mode. Lower Latency Processing | ✔ |
| AI Based Motion Adaptive Deinterlacing | ✔ |
| Additional Undisclosed Basic Algorithms and Features | ✔ |
| Multi Zone Convergence Correction | - |
| Advanced Native Gamut Calibration | - |
| Additional Undisclosed AdvancedAlgorithms and Features | - |
| Additional Undisclosed Basic AI BasedAlgorithms and Features | - |
| Additional Undisclosed Advanced AI Based Algorithms and Features | - |
| AI Based Motion Compensate Video Deinterlacing | - |
| AI Based Motion Compensated Multi Frame Noise Or Grain Reduction | - |
| AI Based Grain Agnostic Sharpening | - |
| ChromaAI: Next Generation Chroma Upscaling | - |
| Hardware and Miscellaneous | |
| Paid Option For Future Hardware Upgrades | - |
| CPU Processing Power (Cores / Threads) | 4 / 8 |
| RAM6 | Standard, Single Channel |
| General Graphics Processing Power (GFLOPS) | 11,200 |
| Specialised AI Graphics Processing Power (Tensor core GFLOPS) | 60,500 - 121,000 |
| HDMI 2.0b HDCP 2.2 18.0 Gbps Input Ports | 1 |
| HDMI 2.1 HDCP 2.3 48.0 Gbps Output Ports | 1 |
| HDMI 2.0b HDCP 2.2 18.0 Gbps Zero Latency Passthrough | 1 |
| Additional Outputs via DisplayPort 1.4a, HDCP 2.3, 32.4 Gbps. Future Expansion | 1 |
| Power | Power Consumption: 60W to 205W |
| AC Power Input: 100V to 240V | |
| AC Power Frequency: 50Hz to 60Hz | |
| Rack Units | 2U |
| Dimensions | With Feet: |
| Height: 104 mm / 4.1" | |
| Width: 438mm / 17.25" | |
| Depth: 343mm / 13.5" | |
| Included | Rack mount ears and screws |

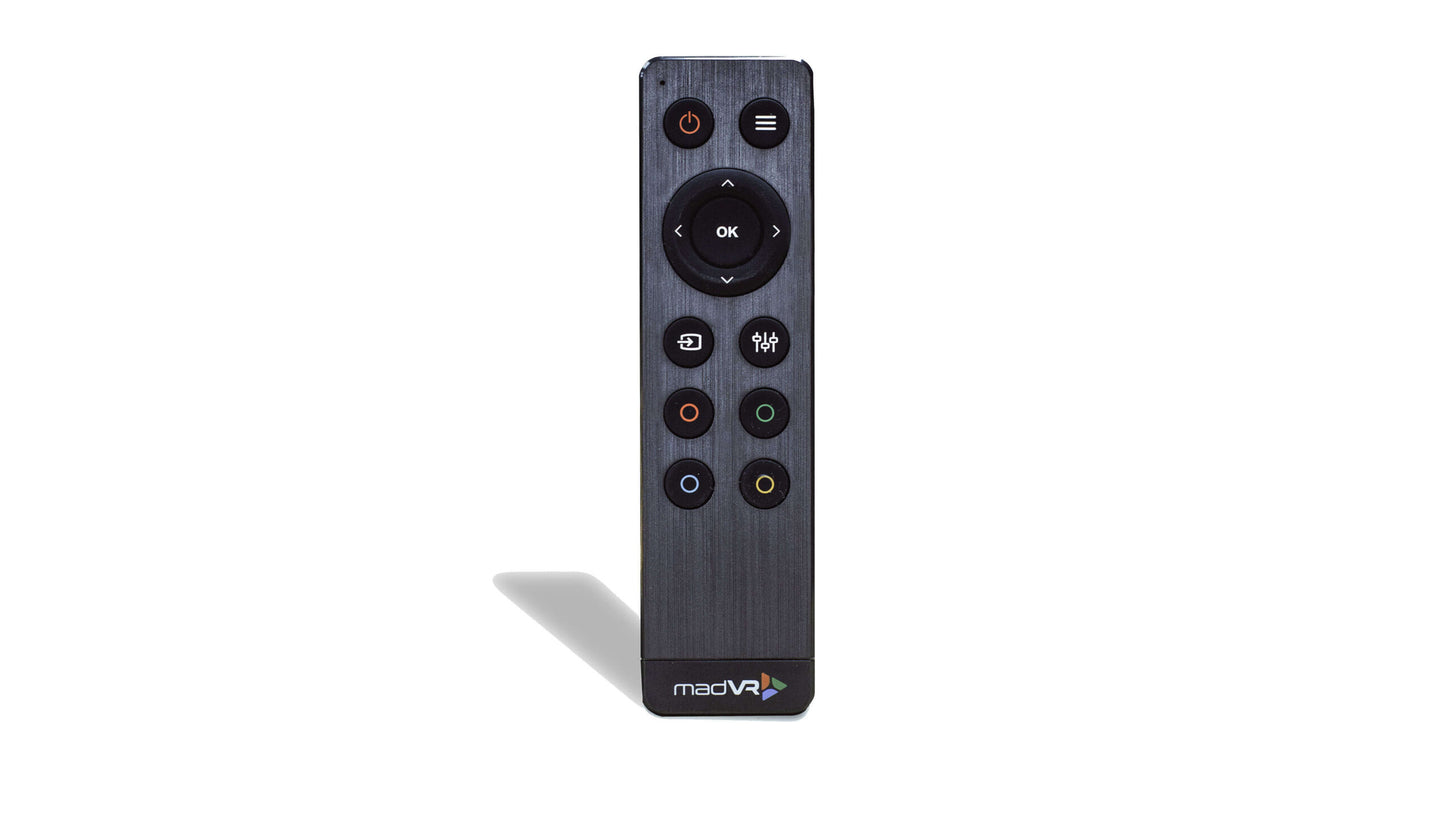

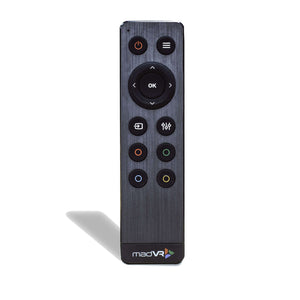

| Remote Control: RC1 Standard Remote (RF) | |
| Warranty | On parts and labour: 2 years |
