Marantz AMP 10 - 10 Channel Power Amp
Marantz AMP 10 - 10 Channel Power Amp
Couldn't load pickup availability
Share
Details
Description
AMP 10
Engineered with best-in-class technologies, AMP 10 cleverly combines very high-power output and high channel count to create a master reference-level amplifier for ultimate home theater performance.
- Crafted in Shirakawa, Japan
- 16 Channels
- 200 Watts per Channel
- Custom HDAM
- Custom Switching Amplifiers
- Selectable Output Modes
- 5 Year Warranty
The Apex of Home Cinema
AMP 10

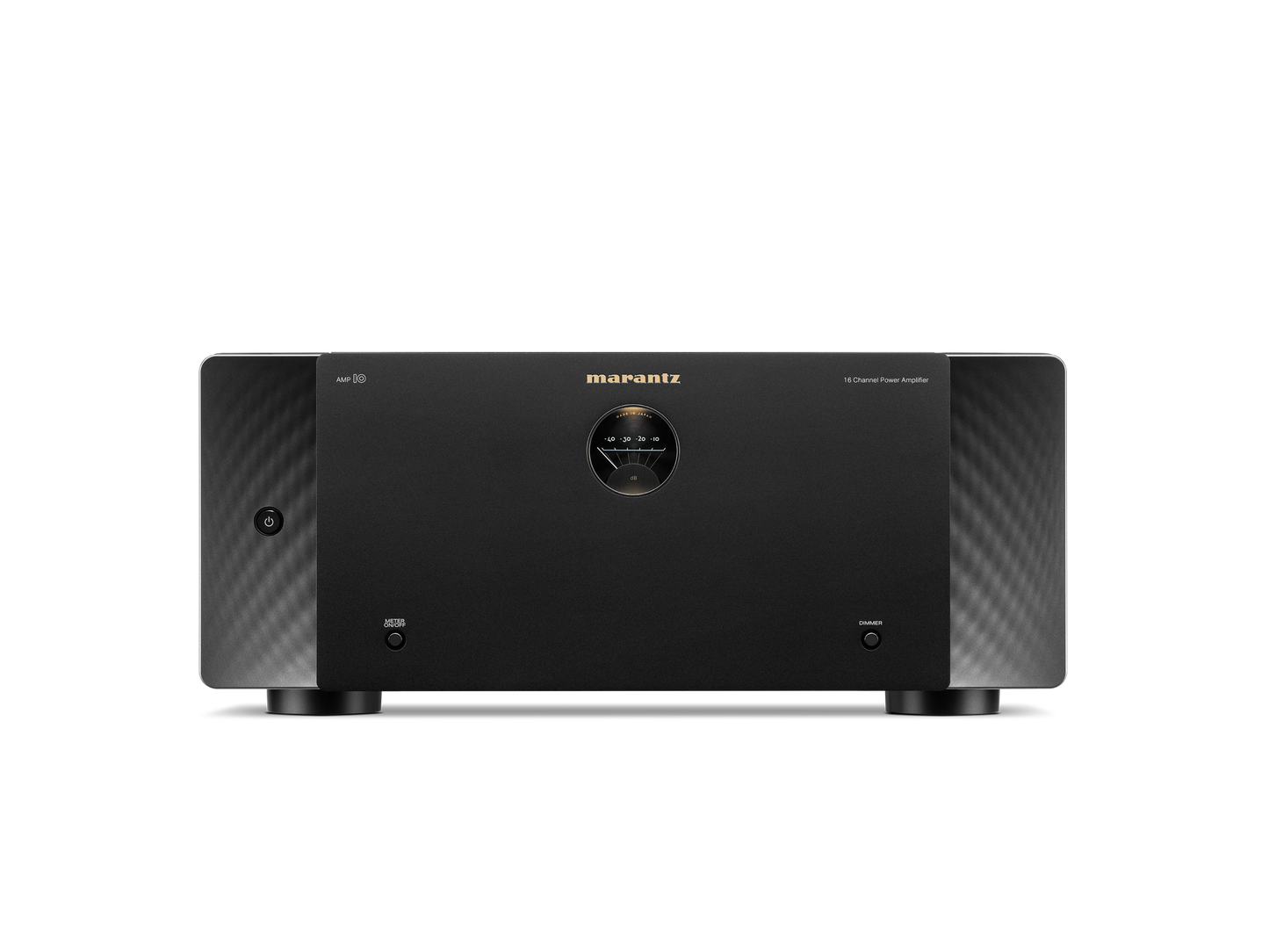

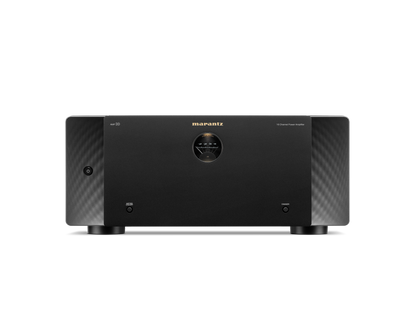

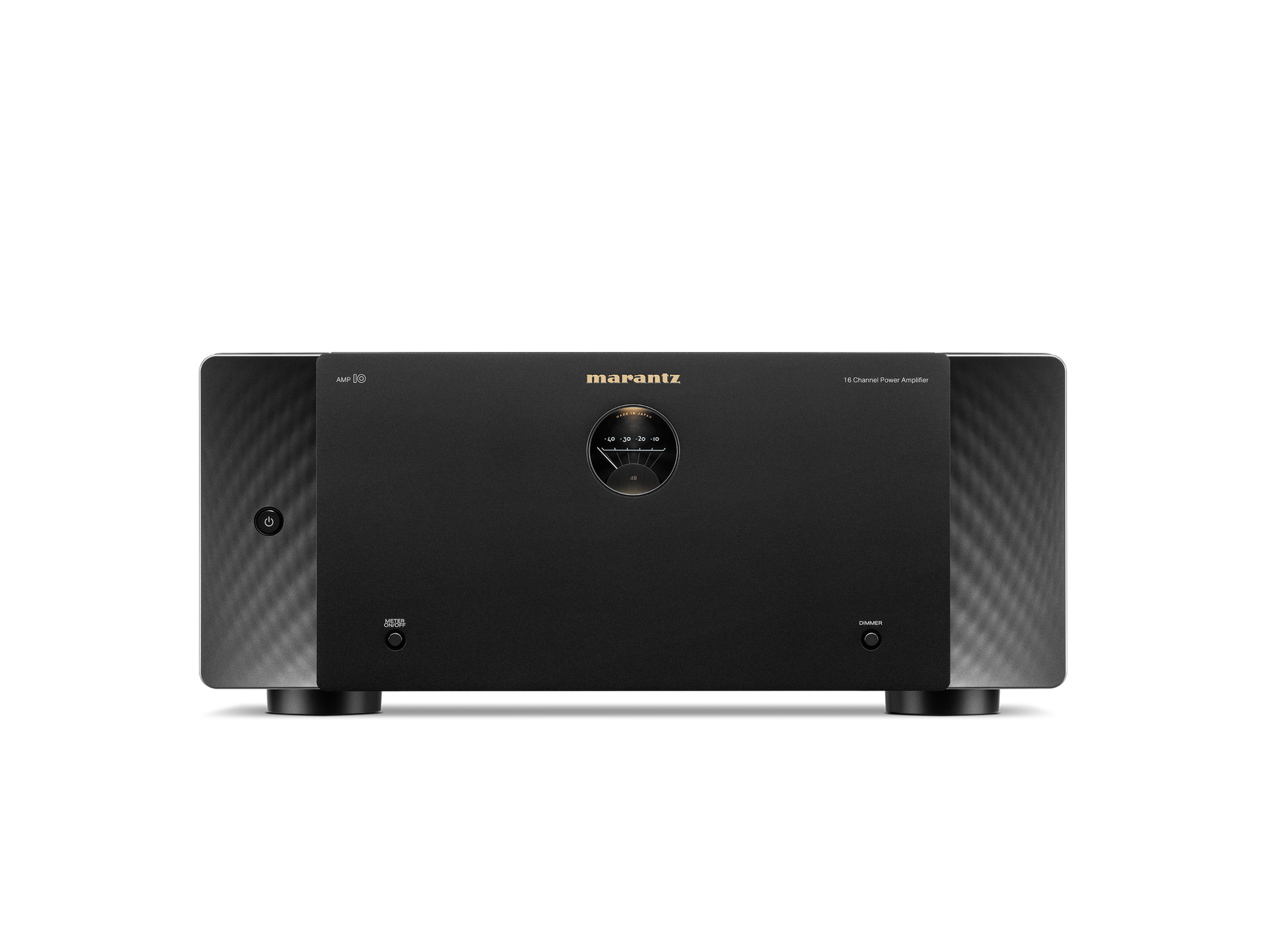

A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.
We developed custom Class D amplifiers and refined our own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.
The Marantz Sound Master meticulously tuned AMP 10 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.
AMP 10 is engineered using best-in class technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.
Specifications
Specifications
| Multi-Room CI | |
|---|---|
| IP Control / RS232 Control / Web Control / App Control | No / Yes / No / No |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Input/ Output | 1 / 1 |
| Others | |
| Front Display | Level Meter |
| Firmware Update by Network / USB / RS232C | No / No / No |
| Auto Power off | Yes |
| Inputs Outputs | |
| Main Amplifier in | Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.) |
| Speaker Terminal | SPKT-1+ |
| Number of Speaker Terminals | 16 |
| Bi-Amp Drive /BTL Drive | Yes / Yes |
| Level Meter | Yes |
| Chasiss | Copper Plated |
| Specifications | |
| Number of poweramps | 16 |
| Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL | 200W / 400W |
| Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal | 400W |
| Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal | 200W |
| 70% Guarantee(Normal/Bi-Amp/BTL) | Yes |
| 100% Guarantee(Normal/Bi-Amp) | Yes |
| General | |
| Metal Front Panel | Yes |
| Pre-Programmed / Learnable / LCD Display | No / No / No |
| Power Consumption in W | 500 |
| Power Consumption No-Sound in W | 140W |
| Standby Consumption in W | 0.2 |
| Maximum Dimensions | 【 17.4 x 19.2 x 7.4 】 |
| Weight in lbs. | 43.7 |
| What's in the box | Main unit, quick start guide, AC cord, Amp control cable, Remote control cable, SP terminal wrench |
| UPC code | No Value |
