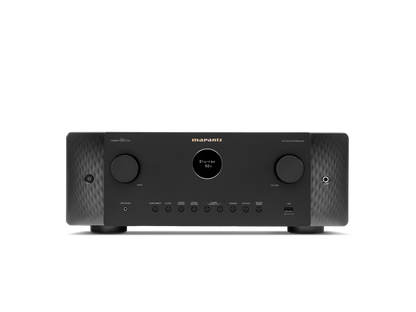

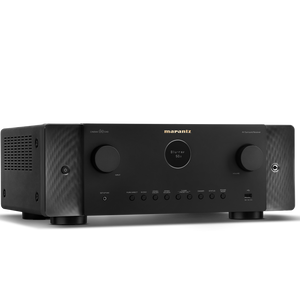

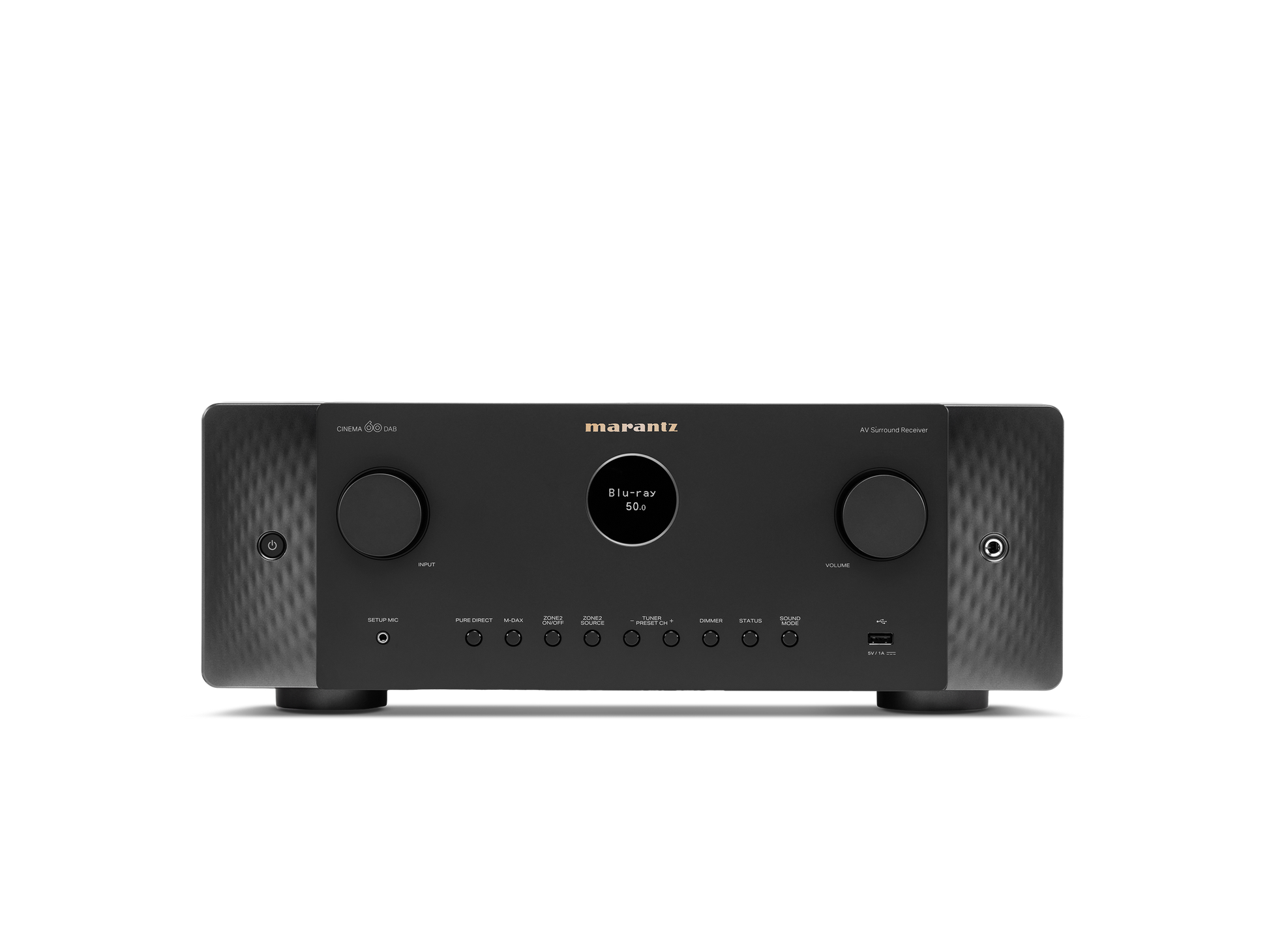

Marantz CINEMA 60DAB AV Receiver
Marantz CINEMA 60DAB AV Receiver
Couldn't load pickup availability
- Pay in 3
Share
Details
Description
CINEMA 60DAB
CINEMA 60 raises the standard of foundational luxury home theater with its timeless design and wide array of immersive audio formats. Marantz Sound Master tuned, and engineered with proprietary technologies, this AV receiver delivers warm, rich, and spacious sound.
- Artisanal Design
- 7.2 Channels
- 100 Watts per Channel
- 6 HDMI Inputs plus eARC
- 8K & Dolby Atmos
- HEOS Built-in
Engineered To Perform
CINEMA 60DAB

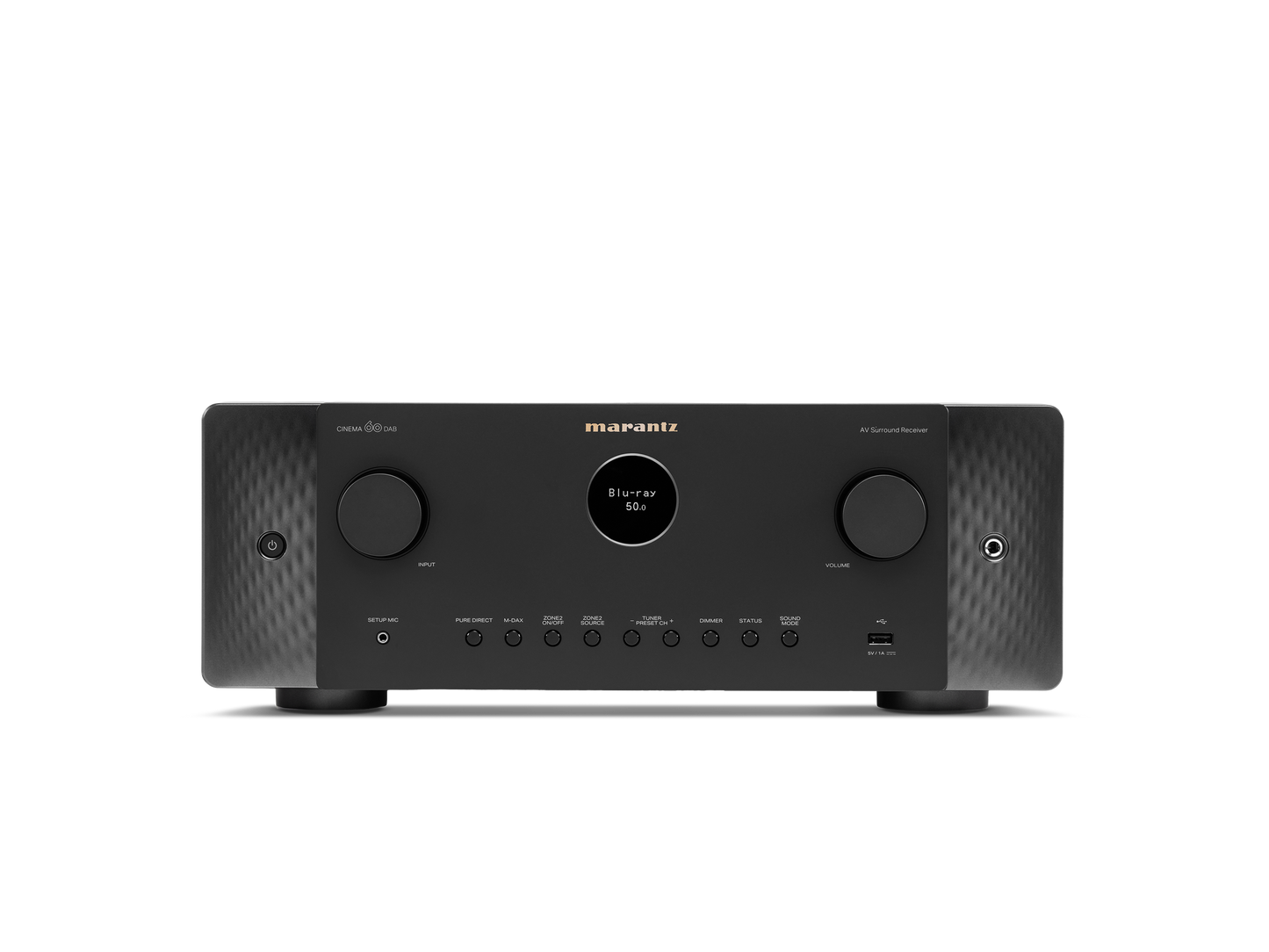

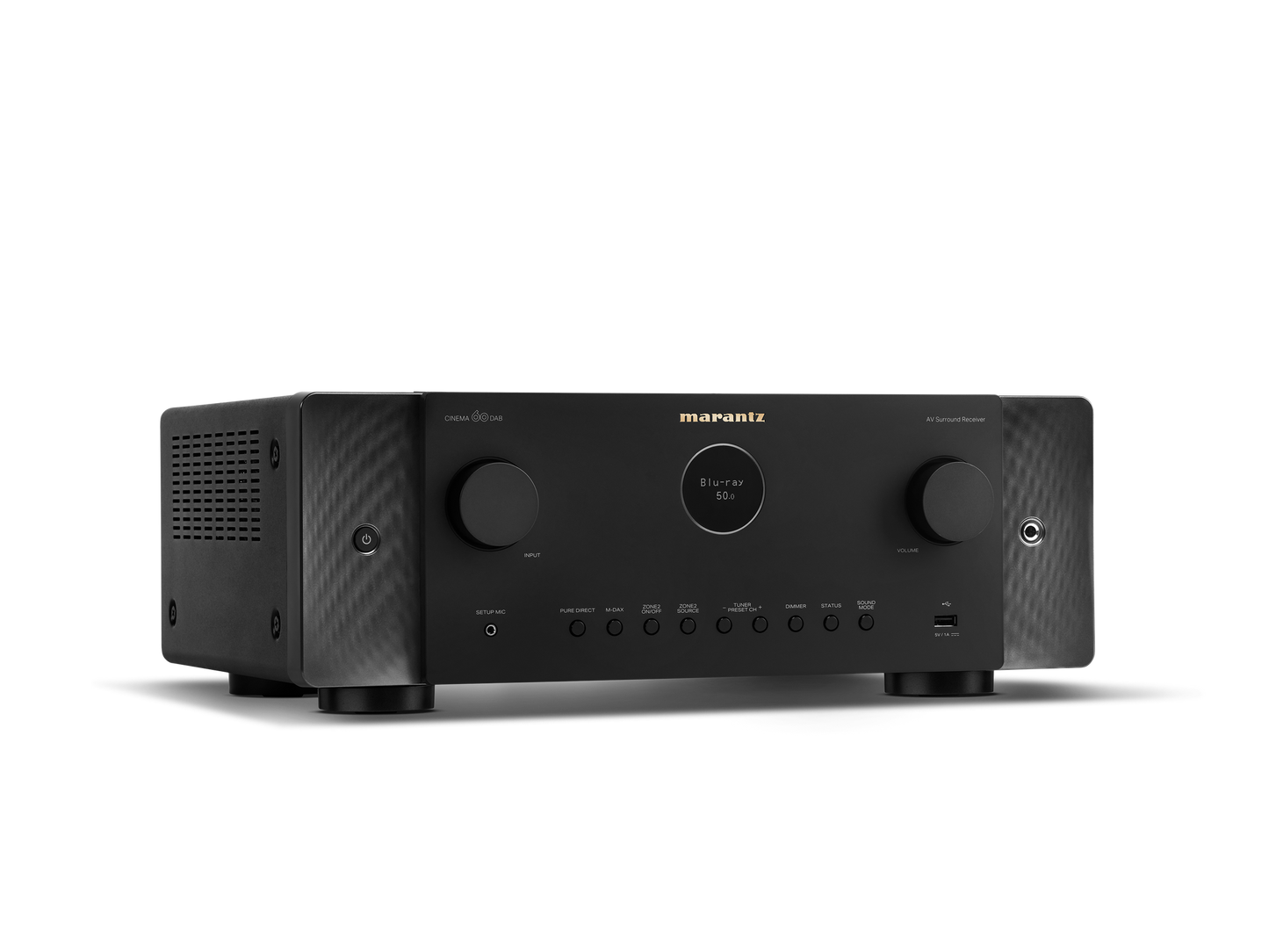

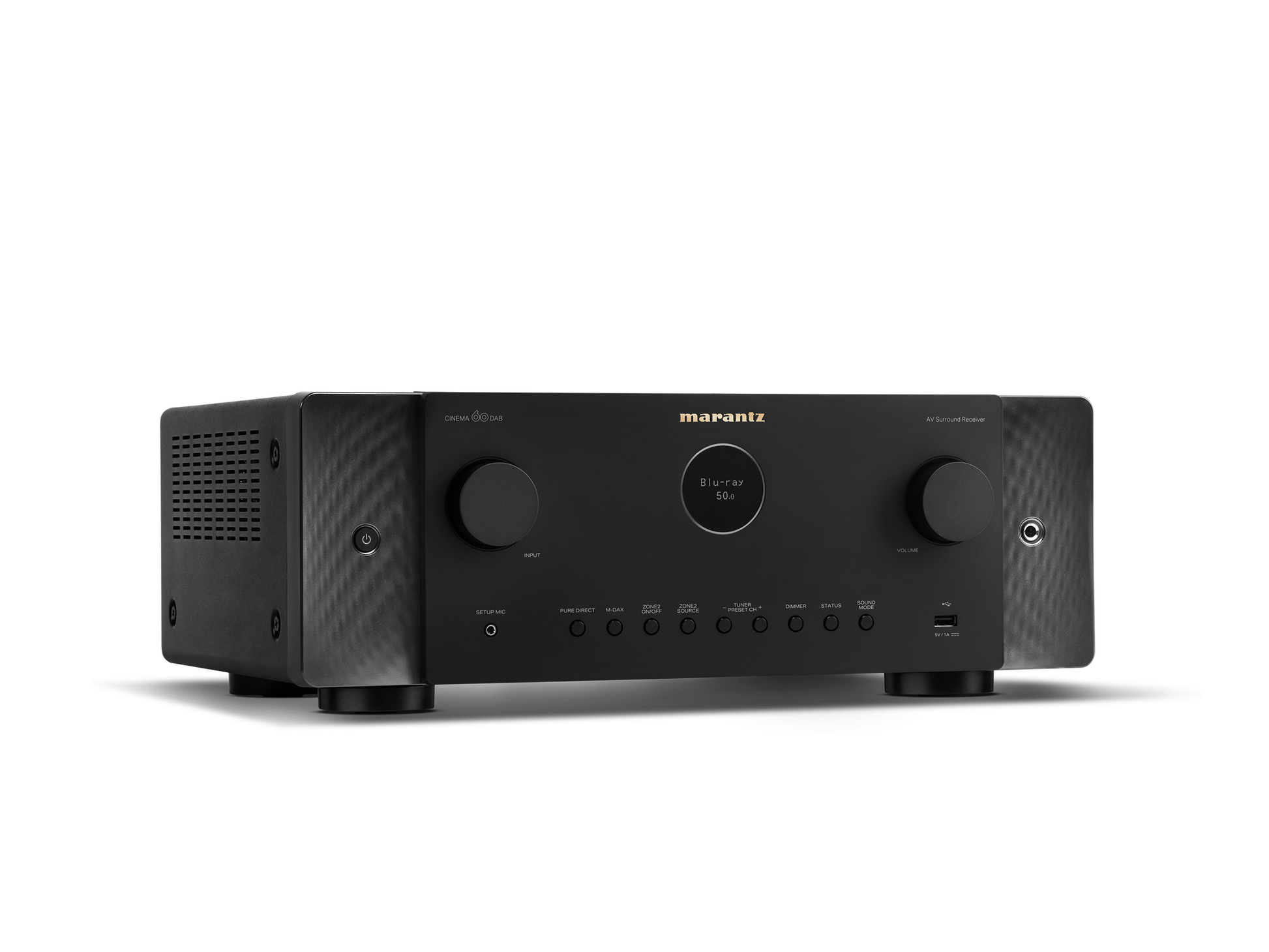

A modern expression of timeless design principles, CINEMA 60DAB includes our iconic porthole, symmetry, and visual cues representing legendary Marantz quality.
Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.
The Marantz Sound Master meticulously tuned CINEMA 60DAB for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.
CINEMA 60DAB comes complete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.
Specifications
Specifications
| Power Amplifier | |
|---|---|
| Number of Powered Channels | 7 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | 100 W |
| Discrete Power Amplifier | Yes |
| Amplifier Topology | Class A/B |
| Current Feedback Topology | Yes |
| Bi-Amp Drive | assignable |
| Multichannel Surround Technologies | |
| DTS | DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X |
| Dolby | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
| Other | |
| Multichannel Stereo | Yes |
| Max Number of Processing (Preamp) Channels | 7.1 |
| Inputs Outputs | |
| HDMI In / Out | 6 / 2 |
| Multi-Room Video Out via HDMI | Yes |
| Analog In / Fixed Level Out | 4 in / 0 out |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-Room Out: analog / digital | 1 / 0 |
| Multichannel Preamp Out | 7.2 |
| Subwoofer Out | 2 |
| 7.1 multichannel input | No |
| Number of Speaker Terminals | 7 |
| Speaker A / B | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs | |
| USB-A | Yes |
| USB Audio | Yes |
| FM/DAB+ Tuner | Yes |
| HDMI | |
| Total HDMI Inputs / No. Support 8K | 6 / 3 |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main / Zone | 2 / 0 |
| HDMI Upscaling | 1080p/4K to 8K |
| Max Resolution / Frame Rate | 1080p/4K to 8K |
| Audio Return Channel | eARC |
| Video Dynamic Range | HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| HDMI Pass-Through in Standby Mode | Yes |
| CEC | Yes |
| Auto LipSync | Yes |
| Performance Technologies | |
| Copper Plated Chassis | No |
| Toroidal Power Supply Transformer | No |
| Hyper Dynamic Amplifier Modules (HDAM) (List version) | Yes |
| Pure Direct Mode | Yes |
| Gold Plated RCA Terminals | Yes |
| Clock Jitter Reducer | No |
| Acoustic Room Correction | |
| Audyssey | MultEQ XT |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | No |
| Dirac Live Support | No |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | No |
| Streaming Services | |
| HEOS Multi-room and Streaming | Yes |
| AirPlay Audio Streaming | AirPlay 2 |
| Internet Radio | TuneIn |
| Spotify* | Spotify Connect |
| Other Streaming Services * | Amazon Music / TIDAL / Deezer / Napster / SoundCloud / Mood Mix |
| Roon tested | Yes |
| Supported file formats | MP3 / WMA / AAC FLAC / ALAC / WAV (192/24) DSD (up to DSD5.6) |
| Network Connectivity | |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth Re-transmit for Bluetooth headphones | Yes |
| Smart Home Integration and Control | |
| Voice Assistant Compatibility | Alexa / Google Voice Assistant / Apple HomePod |
| App for Smart Phones & Tablets (iOS & Android) | Marantz AVR Remote App |
| HEOS Multi-Room Integrated | Yes |
| Multi-Room zones | 2 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | 2 Ch / 2Ch / Yes / Yes |
| Zone Audio Output: Speaker / Preout | Yes / Yes |
| Control Connectivity | |
| IP Control / RS232 Control / Web Control / App Control | |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Output | 1 |
| HDMI Diagnostics | Yes |
| Others | |
| Front Display | port hole OLED |
| GUI Languages | 9 |
| Setup Assistant | Yes |
| Smart Select on Remote | Yes |
| Firmware Update by Network / USB | Yes / Yes |
| ECO Mode | Yes |
| Auto Power off | Yes |
| Sleep Timer | Yes |
| General | |
| Metal Front Panel | No |

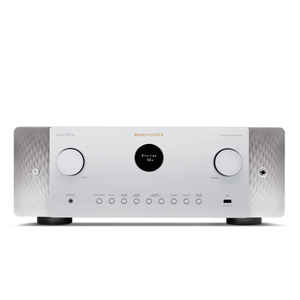

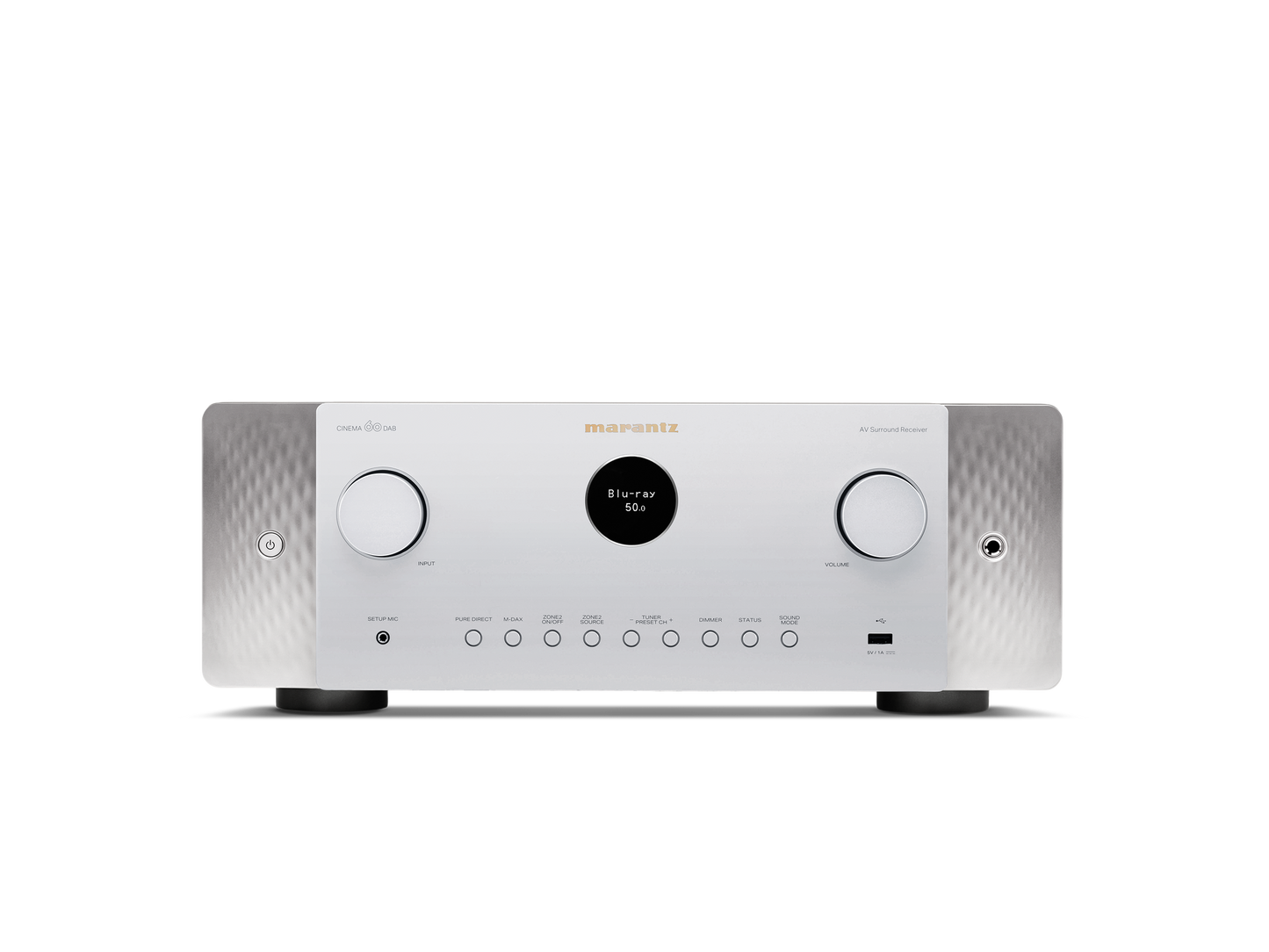

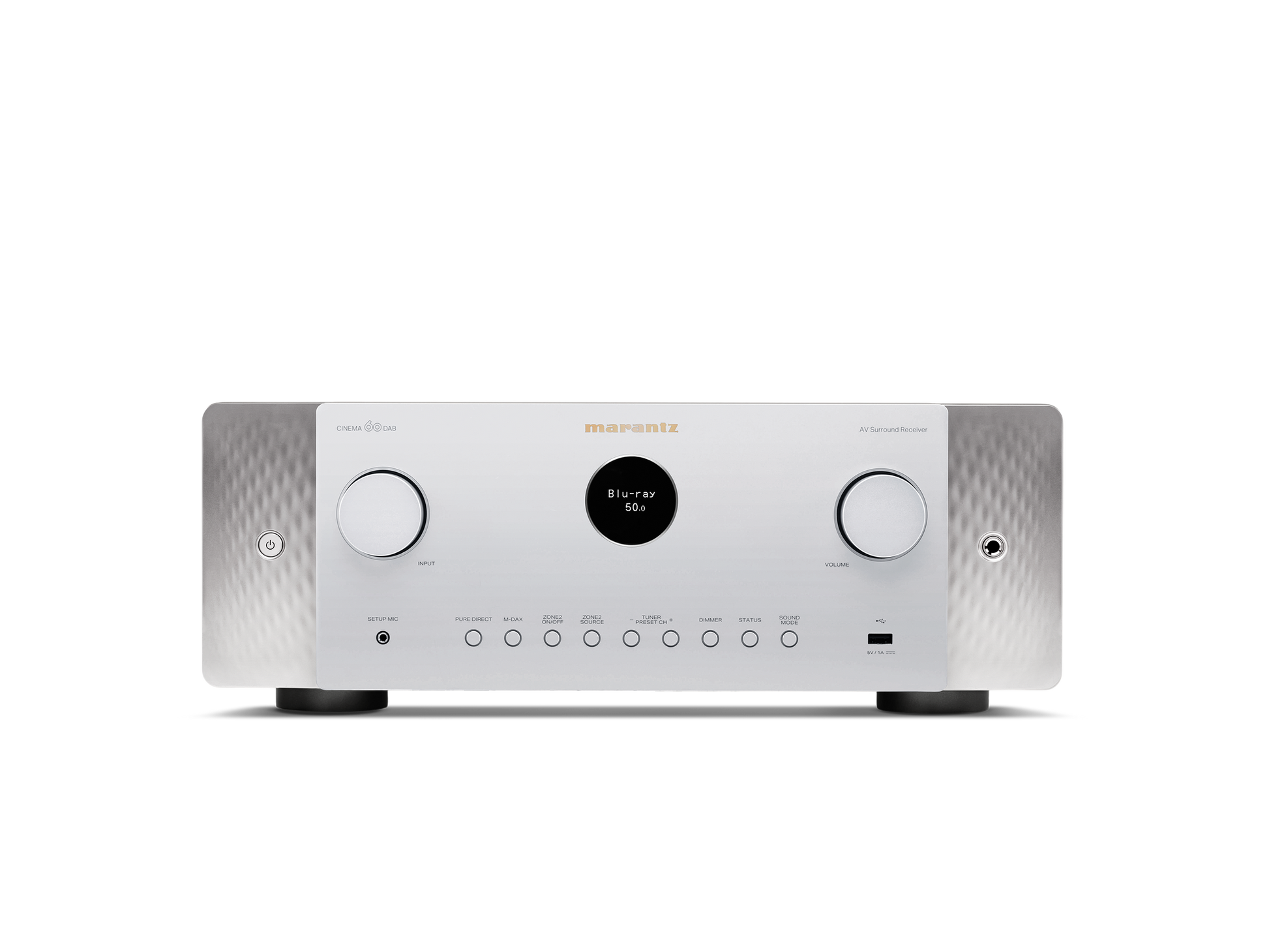

| Colour options | Black / Silver-Gold |
| System Remote Control | RC-049SR |
| Power Consumption in W | 650 |
| Power Consumption No-Sound in W (ECO on/off) | 45 W / 75 W |
| Standby Consumption in W | 0.2 W |
| CEC Standby Consumption in W | 0.5 W |
| Maximum Dimensions | |
| Antenna:Horizontal:(W x D x H) in mm | 442 x 354 x 165 |
| Antenna:Vertical :(W x D x H) in mm | ( 442 x 354 x 235 ) |
| W/o Antenna:(W x D x H) in mm | 【 442 x 343 x 165 】 |
| What's in the box | |
| Main unit, remote control, batteries, FM/DAB antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord | |
| Weight in kg | No Value |
