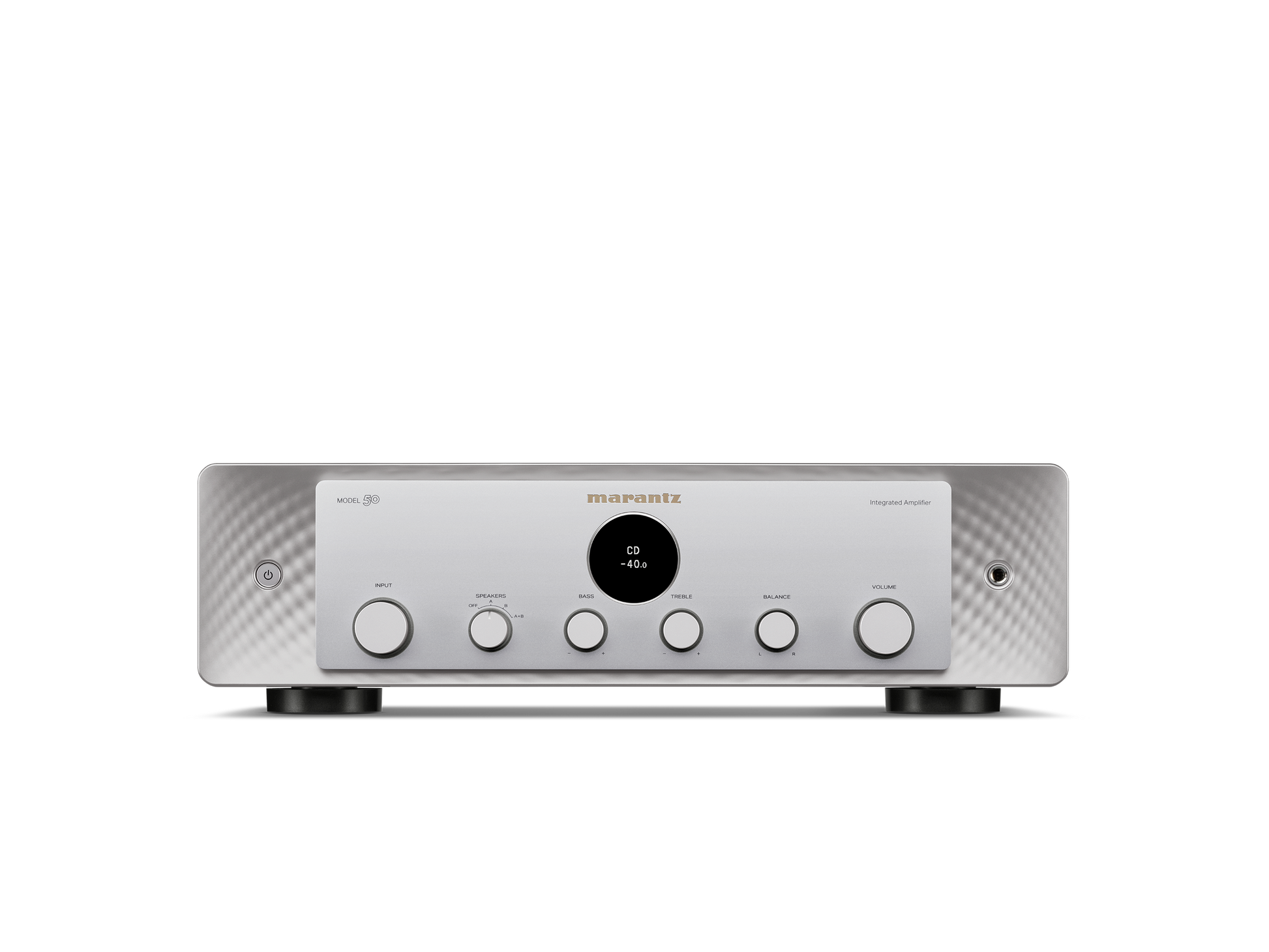

Marantz MODEL 50 - Premium Integrated Stereo Amp
Marantz MODEL 50 - Premium Integrated Stereo Amp
Couldn't load pickup availability
- Pay in 3
Share
Details
Description
MODEL 50
MODEL 50 was designed and engineered to be thoroughly modern, yet timeless. Engineered with Marantz proprietary technologies, this integrated amplifier pushes the boundaries of audio equipment design to reveal the musicality in all your stereo source components.
- Artisinal Design
- 2.2 Channels
- 70 Watts Per Channel
- Custom HDAM
- 5 Year Warranty
An Evolution 70 Years in the Making
MODEL 50
We designed MODEL 50 to be thoroughly modern, yet timeless. Hallmark aesthetic cues like symmetry, warmth, and tactile satisfaction push the boundaries of audio equipment design inspired by icons of our past.
Specifications
Specifications
| Features | |
|---|---|
| Channels | 2 |
| Current Feedback Topology | Yes |
| Phono EQ: Standard / Marantz Musical / Marantz Musical Premium | - / Yes / - |
| Digital in: USB-B / optical / coaxial / USB-A | - / - / - / - |
| HDAM version | SA3, SA2 |
| Power Transformer: Toroidal / El | Yes / - |
| High Grade Audio Components | Yes |
| Customised Components | Yes |
| Symmetric PCB Layout | Yes |
| Aluminium extrusion heat sink | Yes |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / - |
| Others | |
| Linear Drive Power Supply | Yes |
| Liniear volume control | Yes |
| Schottky diodes | Yes |
| Input buffer amp (all inputs / CD only) | - / - |
| Solid Heat Sinks | Yes |
| System block shielding: Copper / metal / none | none |
| Bottom Plate | triple |
| Low noise OLED display | Yes |
| Source Direct | Yes |
| Power Amp direct | Yes |
| Inputs Outputs | |
| Audio Inputs | 6 |
| Digital in: USB-B / optical / coaxial / USB-A | - / - / - / - |
| Phono Input: MM / MC | Yes / - |
| Audio Outputs | 1 |
| Balanced In / Out | - / - |
| Pre-out / Main-in | Yes + subwoofer / - |
| Power Amp Direct IN | Yes |
| Gold Plated Cinch | Yes |
| Speaker A / B | Yes |
| Speaker Terminals | Marantz SPKT-1+ |
| Number of terminals | 4 |
| D-Bus | Yes |
| Headphone Out | Yes |
| Specifications | |
| Power Output (8 / 4 Ohm RMS) | 70 W / 100 W |
| Frequency Response | 5 Hz–100 kHz |
| Total Harmonic Distortion | 0.02 % |
| Damping Factor | 100 |
| Input Sensitivity: MM | 1.4 mV / 47 kΩ |
| Signal to Noise Ratio: MM/MC | 87 dB / - |
| Input Sensitivity: High level | 185 mV / 16 kΩ |
| Signal to Noise Ratio: High level | 116 dB (2 V input) |
| Input Sensitivity: Power Amp Direct IN | 1.5 V / 15 kΩ |
| Signal to Noise Ratio: Power Amp Direct IN | 125 dB |
| Treble Control | ± 10 dB at 15 kHz |
| Bass Control | ± 10 dB at 50 Hz |
| General | |
| Available Colors: Gold / Silver / Black / Silver-Gold | - / - / Yes / Yes |
| Metal Front Panel | Yes |
| Power Consumption in W | 220 |
| Standby Consumption in W | 0.3 |
| Auto Power off | Yes |
| Detachable Power Cable | Yes |
| Remote Control | RC003PMND |
| System Remote Function | Yes |
| Maximum Dimensions (W x D x H) in mm | 442 x 431 x 130 |
| Weight in kg | 14.2 |
| Carton Maximum Dimensions (W x D x H) in mm | 527 x 517 x 255 |
| Carton Weight (inc. product) in kg | No Value |
