Marantz

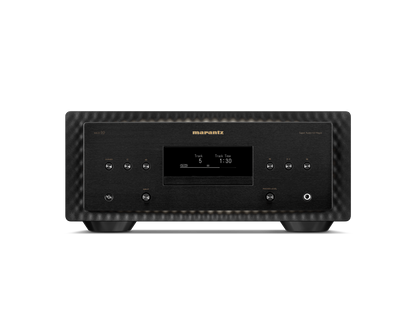

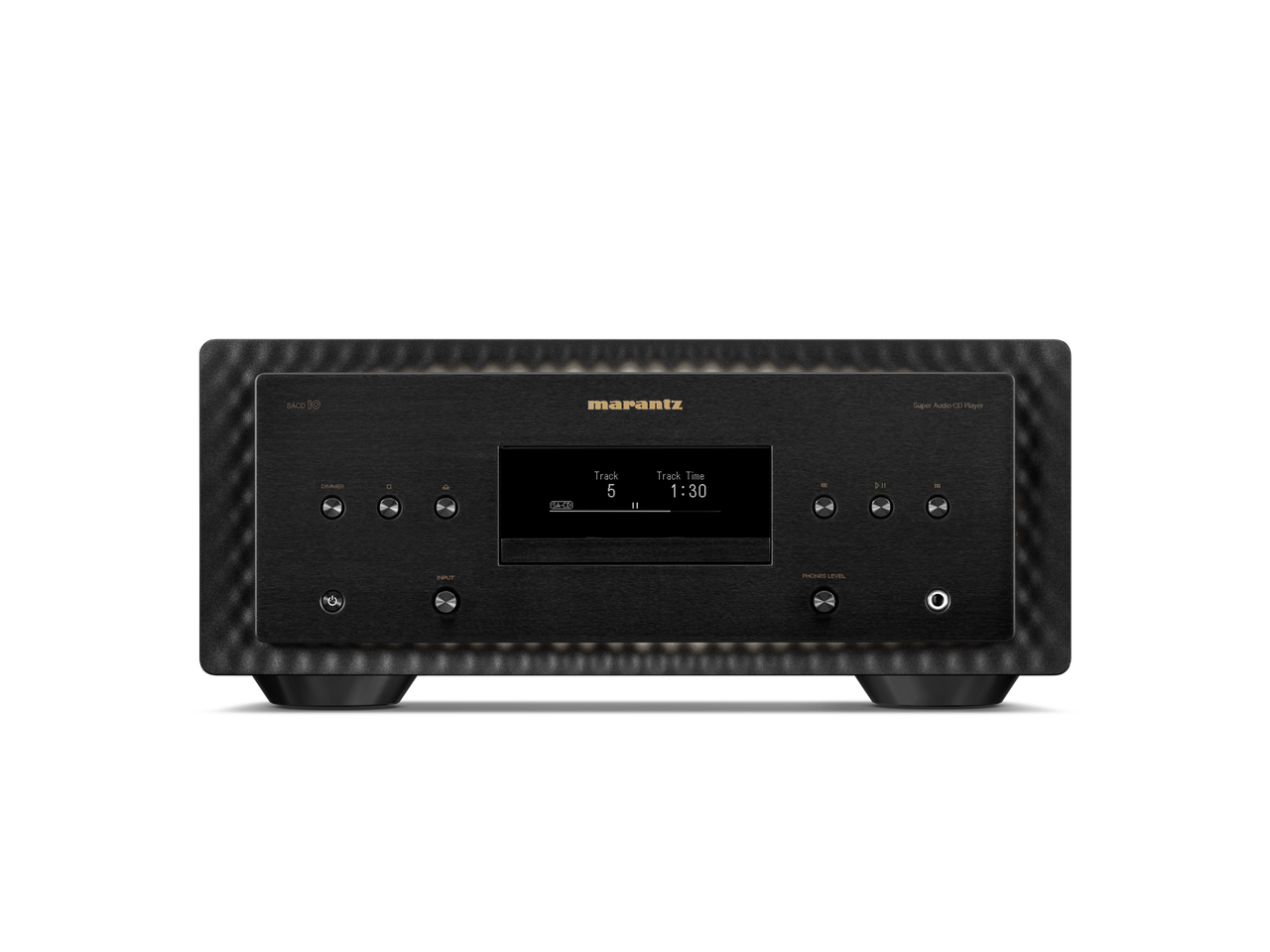

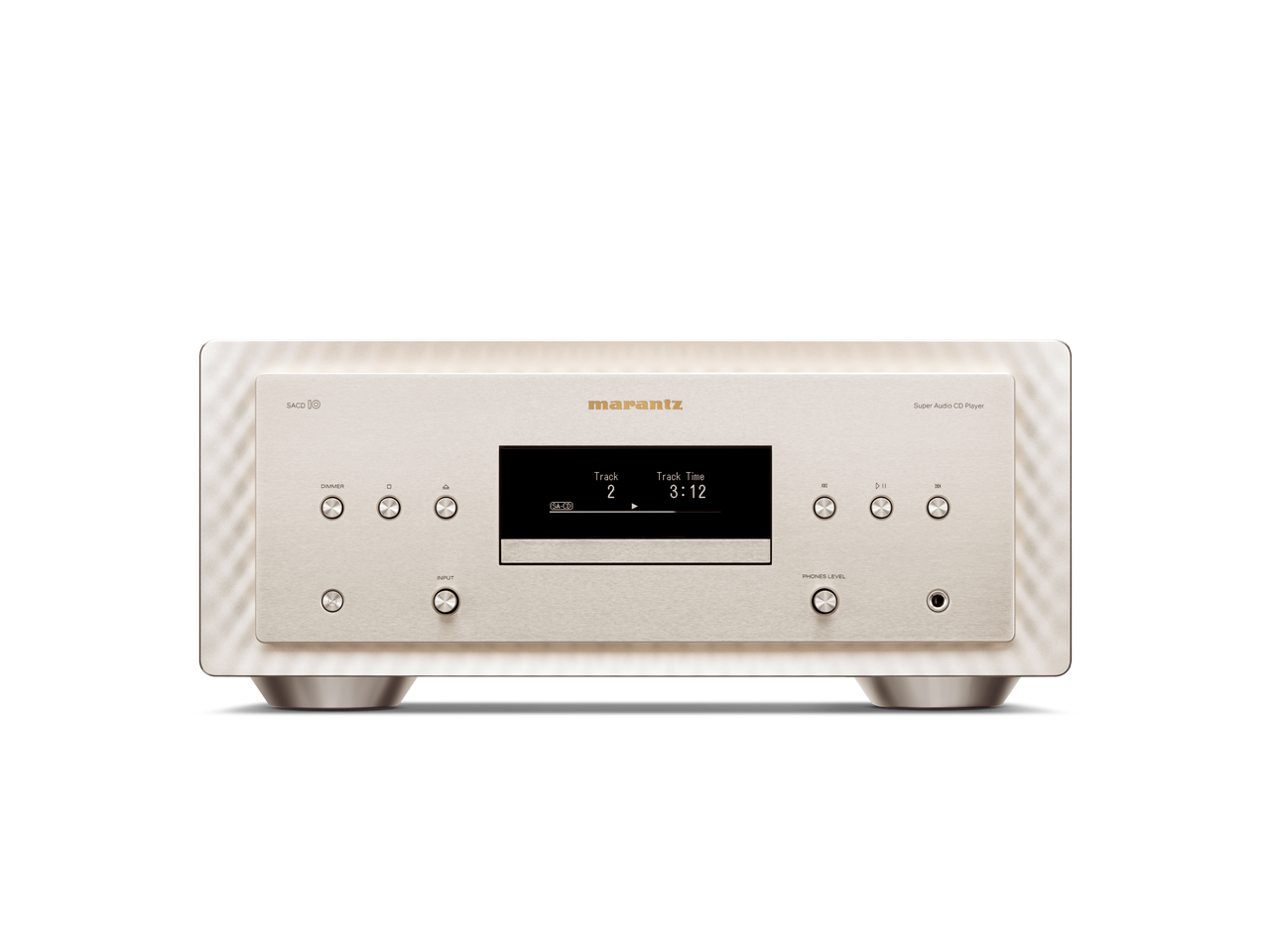

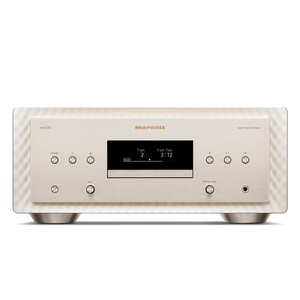

Marantz SACD 10 Reference SACD Player
Marantz SACD 10 Reference SACD Player
Couldn't load pickup availability
Share
Details
Description
SACD 10
High-Performance Reference SACD Player with SACDM-3 transport mechanism
The reference-standard SACD 10 is crafted to be the very best using a fully Marantz designed SACDM-3 transport mechanism for maximum rejection of resonance.
- Marantz SACDM-3 transport mechanism
- DSD 256 and PCM 384 / 32 support
- Headphone amplifier
- Dual power supplies with toroidal transformers
- OLED display
- Marantz Industrial Design
Inspired by our past, engineered for our future
Specifications
Specifications
| General | |
|---|---|
| Unit (W × H × D mm) | 440 × 192 × 442 |
| Cabinet Size | 440 × 192 × 422 |
| Net weight | 33.0kg |
| Packaging Dimensions (W × H × D mm) | 600 × 379 × 540 |
| Packaging gross weight | 38.4kg |
| Carton Color | 1 Color (Material color: Brown Printing: Black) |
| Panel Color | Black / Marantz Champagne |
| Front (Center) Panel | Aluminum |
| Back-shell | Aluminum |
| Front panel illumination | Yes (All sides, Dimmer) |
| Side cover | Aluminum (Thickness: Max 15.8mm) |
| Top cover | Aluminum (Thickness: 12mm) |
| Bottom Layer / Bottom plate | Triple layer copper-plated |
| Foot | Solid aluminum with Copper |
| Audio | |
| Frequency Response | SACD: 2Hz–50kHz (-3dB) CD: 2Hz–20kHz (±1.0dB) |
| Harmonic distortion | SACD: 0.0004% CD: 0.0015% |
| S/N | SACD: 118dB CD: 116dB |
| Dynamic range | SACD: 112dB CD: 98dB |
| Line Output Level | UNBALANCED: 2.0Vrms BALANCED: 4.0Vrms |
| Headphone Output Level | 130mW / 32 ohms |
| Power Consumption | 55W Less than 0.3W (at Standby) |
| Audio Feature | |
| Output Circuit | New HDAM |
| Power Transformer | Toroidal |
| Headphone Circuit | Discrete |
| H/P Amp Gain Setting | Yes (Low / Mid / High) |
| H/P On-Off Setting | H/P Off automatically, when in use |
| DAC Circuit | New MMM-Conversion |
| Dither | MMM-Stream (Dither 1, 2, Off) |
| Noise Shaper | MMM-Stream (Balanced, Natural, Dynamic Music, Dynamic Voice) |
| Digital Filter | MMM-Stream (Filter 1, 2 Selectable) |
| Jitter Reducer | Yes |
| DAC Master Clock Design (SACD, USB-A, USB-DAC) | Yes |
| Asynchronous mode (for USB-B input) | Yes |
| Isolator (for USB-B input) | Yes (Complete Isolation System Duo) |
| Connectivity | |
| Fixed Analog Output (RCA) | Cinch × 1 Thick nickel plated Maching copper L/R independent terminals |
| Fixed Balanced XLR Output | 1 |
| Optical input / output (Maximum Support) | 2 / 1 44.1 kHz - 192 kHz |
| Coaxial input / output (Maximum Support) | 2 / 1 44.1 kHz - 192 kHz |
| Headphone Output | Yes (φ6.3 × 1) |
| Remote Control Bus Terminal | Yes |
| Remote Internal / External Switch | Yes |
| AC Inlet | Yes |
| Accessory Box | Yes |
| Remote Controller | RC004PMND |
| Battery | Yes (AAA ×2) |
| Power Cord | Yes (ALL region : Audio Grade : OFC) |
| Other | Stereo RCA Cable ×1 Remote connector cable ×1 CoA card |
