Details
Description
There are 10 analog inputs on the MA12000 consisting of 2 balanced and 6 unbalanced inputs, plus 1 Moving Coil and 1 Moving Magnet input for connecting a turntable. Both phono inputs feature adjustable loading for fine tuning the MA12000 to your specific turntable configuration so your vinyl collection sounds just right. All the unbalanced analog connectors are constructed from premium gold-plated solid brass for superior signal handling and grounding. The MA12000 also has 1 balanced and 1 unbalanced output if you ever want to connect to an additional amplifier that's used in a different part of your residence.
The fully loaded, hybrid MA12000 Integrated Amplifier is a product of uncompromising audio engineering and expert craftsmanship. Our most powerful integrated amplifier ever, the feature rich MA12000 offers 350 Watts per channel of clean, high performance power that produces a breathtaking home audio experience. You will think your favorite musicians are playing a live, in-person performance in your house.
The MA12000 gives you the best of all worlds with the warm nuances of a vacuum tube preamplifier (or valve preamplifier as some of our friends like to say) combined with the speed and raw power of a solid state amplifier, state-of-the-art digital audio capabilities, and enough analog audio connections for virtually any home music system.
The MA12000 is a hybrid design with the preamplifier section powered by (4) 12AX7A vacuum tubes (2 tubes per audio channel), while the 350 Watt power amplifier section employs a solid state design. Our Autoformer™ technology guarantees your speakers will always be capable of receiving that full 350 Watts whether they have 2, 4 or 8 Ohm impedance.
There are 10 analog inputs on the MA12000 consisting of 2 balanced and 6 unbalanced inputs, plus 1 Moving Coil and 1 Moving Magnet input for connecting a turntable. Both phono inputs feature adjustable loading for fine tuning the MA12000 to your specific turntable configuration so your vinyl collection sounds just right. All the unbalanced analog connectors are constructed from premium gold-plated solid brass for superior signal handling and grounding. The MA12000 also has 1 balanced and 1 unbalanced output if you ever want to connect to an additional amplifier that's used in a different part of your residence.
Specifications
Specifications
ELECTRONIC SPECIFICATIONS | |
Power Output per Channel | 350 Watts |
Number of Channels | 2 |
Speaker Impedance | 2, 4, or 8 Ohms |
Rated Power Band | 20Hz to 20kHz |
Total Harmonic Distortion | Preamplifier: 0.03% |
Amplifier: 0.005% | |
Dynamic Headroom | 1.5dB |
Frequency Response +0,-0.5dB | 20Hz to 20kHz |
Frequency Response, +0, -3dB | 10Hz to 100kHz |
Sensitivity Phono (Moving Coil) | 0.30mV |
Sensitivity Phono (Moving Magnet) | 3.0mV |
Sensitivity High Level (Balanced / Unbalanced) | 600mV/300mV |
Sensitivity (Power Amp input) | 1.7V |
Signal To Noise Ratio (Moving Coil) | 75dB |
Signal To Noise Ratio (Moving Magnet) | 77dB |
Signal To Noise Ratio (High Level) | 95dB |
Signal To Noise Ratio (Power Amp input) | 114dB |
Input Impedance (Balanced / Unbalanced) | 44K/22K |
Damping Factor | >40 |
Maximum Output (Balanced / Unbalanced) | 8V Unbalanced |
16V Balanced | |

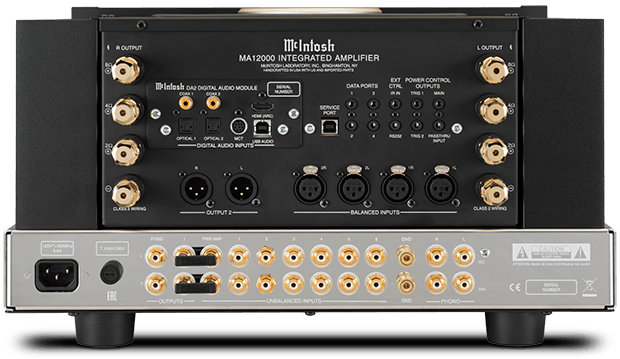

CONNECTIVITY | |
Balanced Input | 2 |
Unbalanced Input | 6 |
Phono Input Moving Coil | 1 (adjustable loading) |
Phono Input Moving Magnet | 1 (adjustable loading) |
Upgradeable Digital Audio Module | Yes: DA2 |
Digital Coaxial Input | 2 |
Digital Optical Input | 2 |
Digital MCT (DIN) Input | 1 |
Digital USB Input | 1 |
HDMI (ARC) Input | 1 |
Balanced Variable Output | 1 |
Unbalanced Fixed Output | 1 |
Unbalanced Variable Output | 1 |
Headphone Output | 1/4" High Drive with Headphone Crossfeed Director (HXD®) |
Subwoofer Output | 0 |
AM/FM Tuner option | No |
Home Theater PassThru | Yes |
Unbalanced Analog Connector Type | Premium gold-plated solid brass |
Speaker Binding Post Type | Patented Solid Cinch™ Speaker Binding Posts |
Service Port | 1 |
DIGITAL AUDIO SPECIFICATIONS | |
Digital-to-Analog Converter (DAC) Type | 8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced |
Digital Coaxial Input Sample Rate | 24-bit/44.1kHz to 192kHz |
Digital Optical Input Sample Rate | 24-bit/44.1kHz to 192kHz |
Digital MCT (DIN) Input Sample Rate | 16-bit/44.1kHz (CD) |
DSD64 (SACD) | |
Digital USB Input Sample Rate | 32-bit/44.1kHz to 384kHz (PCM) |
DSD64, DSD128, DSD256, DSD512, DXD352.8kHz, DXD384kHz | |
CONTROL | |
Tone Controls | 8-Band |
Tone Bypass and Input Assign | Yes |
RS232 Control Input | Yes |
Power Control Output | 1 Main, 2 Trigger |
Rear Panel Data Port | 4 |
Rear Panel IR Sensor Input | Yes |
Input Level Match | Yes |
GENERAL SPECIFICATIONS | |
Vacuum Tube or Solid State | Preamplifier: Vacuum Tube |
Amplifier: Solid State | |
Output Type | Autoformer™ |
Output Meters | Yes |
Dual Layer Chassis | Yes |
Chassis Finish | Polished stainless steel & black painted steel |
McIntosh Monogrammed Heatsinks™ | Yes |
Power Requirement | 120V, 50/60Hz, 6.6A |
Standby Power Requirement | <0.25 Watts |
WEIGHTS & DIMENSIONS | |
Unit Dimensions (W x H x D) | 17-1/2” (44.5cm) x 9-7/16” (24 cm) x 19-3/4” (50.2cm) |
Unit Weight | 108 lbs (48.9kg) |
Shipping Weight | 141 lbs (63.9kg) |
