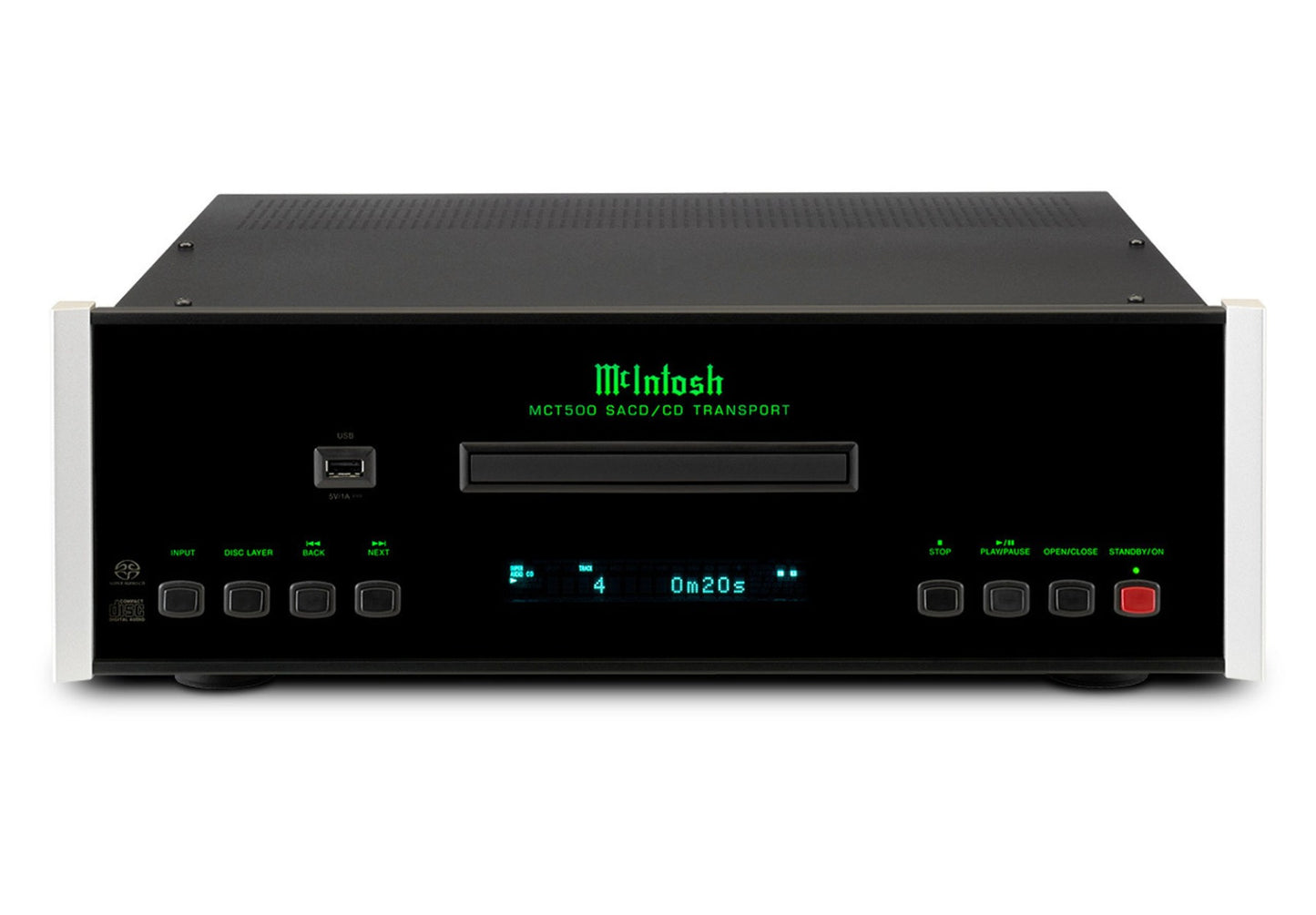

McIntosh MCT500 SACD/CD Transport

McIntosh MCT500 SACD/CD Transport

Regular price £6,995.00
Regular price Sale price £6,995.00
Sale Sold out
  • Free Delivery
  • Demo Available
  • Trade-in Available
  • 3 year Warranty
View full details

Details

Description

Be transported into your music with the MCT500 SACD/CD Transport.


Be transported into your music with the MCT500 SACD/CD Transport.

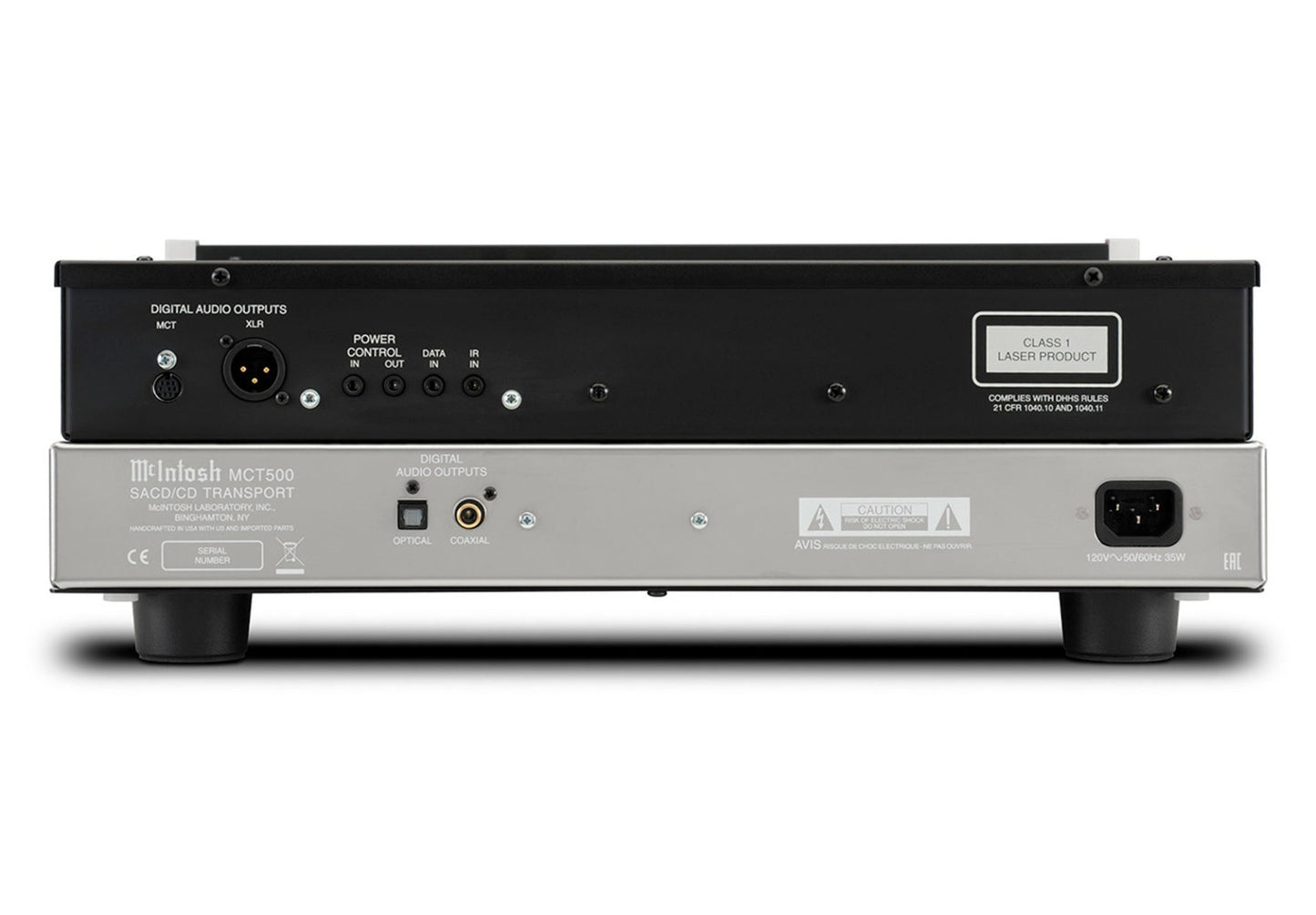

The MCT500 is a digital-only unit and features 4 digital outputs: industry standard balanced, coax and optical outputs plus our exclusive MCT connector. To enjoy your CDs, it can be paired with any product that has standard digital inputs and a digital-to-analog converter (DAC). This includes select McIntosh home theater processors, integrated amplifiers and preamplifiers.

For SACD playback, the MCT500’s proprietary MCT output needs to be connected (via the included cable) to a McIntosh product with an MCT input. This includes the D1100, C52, C2600, C47, and D150 preamplifiers, MA9000, MA8900, MA7200 or MA5300 integrated amplifiers or MAC7200 receiver. When the MCT500 is connected to one of these devices, a secure digital connection is created, allowing for the playback of the high definition audio found on SACDs. Regular CDs can also be played over the MCT connection.

All common disc types can be played on the MCT500, including SACD, CD, CD-R/RW and DVD-R. A twin laser optical pickup assures optimal disc reading. A USB input is conveniently located on the front panel for easy access. In addition to store-bought CDs and SACDs, popular file formats

such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA can be played from user-generated CD or DVD Data Discs and USB flash drives.

Disc handling is smooth and quiet thanks to an advanced disc transport with a precision die-cast aluminum tray. An advanced digital servo provides fast, quiet and accurate operation. A disc’s audio data is read at twice the normal rate insuring better disc tracking and error correction processing.

Integration with other McIntosh system components is achieved via the Power Control and data ports. The MCT500 is wrapped in classic McIntosh styling with a polished stainless steel chassis, black glass front panel, illuminated logo and aluminum end caps.

Specifications

Specifications

AUDIO SPECIFICATIONS
Number of Channels 2
Fixed Output Level N/A
Variable Output Level N/A
Output Impedance N/A
Frequency Response N/A
Signal To Noise Ratio N/A
Dynamic Range
N/A
Total Harmonic Distortion N/A
Channel Separation N/A
Headphone Output Impedance N/A
DIGITAL AUDIO SPECIFICATIONS
Digital-to-Analog Converter (DAC) Type N/A
Coaxial Sample Rate N/A
Optical Sample Rate N/A
USB Sample Rate N/A
Digital Coaxial Input N/A
Digital Optical Input N/A
Digital Output Sample Rate Coaxial: Up to 24-Bit/192kHz
Optical: Up to 24-Bit/192kHz
XLR: Up to 24-Bit/192kHz
MCT: Up to 24-bit/96kHz (CD); DSD128 (SACD and Data DVD)
Digital Optical Output -15dbm to -21dbm
Digital Coaxial Output 0.5V p-p/75 ohms
Digital Output Jitter ≤ 32ns with 1kHz test tone
Digital XLR Output 5V p-p/150 ohms
Digital MCT (DIN) Output 3V @110 ohms
CONNECTIVITY
Balanced Fixed Output 0
Unbalanced Fixed Output 0
Balanced Variable Output 0
Unbalanced Variable Output 0
Digital Coaxial Input 0
Digital Optical Input 0
Digital USB Input 1 (front)
Digital USB Input Type Type A
Digital Coaxial Output 1
Digital Optical Output 1
Digital XLR Output 1
Digital MCT (DIN) Output 1
Headphone Output 0
CONTROL
Rear Panel IR Sensor Input 1
Rear Panel Data Input 1
Power Control Input 1
Power Control Output 1
GENERAL SPECIFICATIONS
Disc Formats SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA
Disc Capacity 1
Laser Type Twin Beam
Laser Beam Wavelength 650nm (SACD)
790nm (CD)
Laser Power CLASS IIa/CLASS I
Standby Power Requirement <0.5 watt
WEIGHTS & DIMENSIONS
Unit Dimensions (W x H x D) 17-1/2" (44.45cm) x 6" (15.24cm) x 19" (48.3cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).
Unit Weight 26 lbs (11.8 kg)
Shipping Weight 40.5 lbs (18.4 kg)
