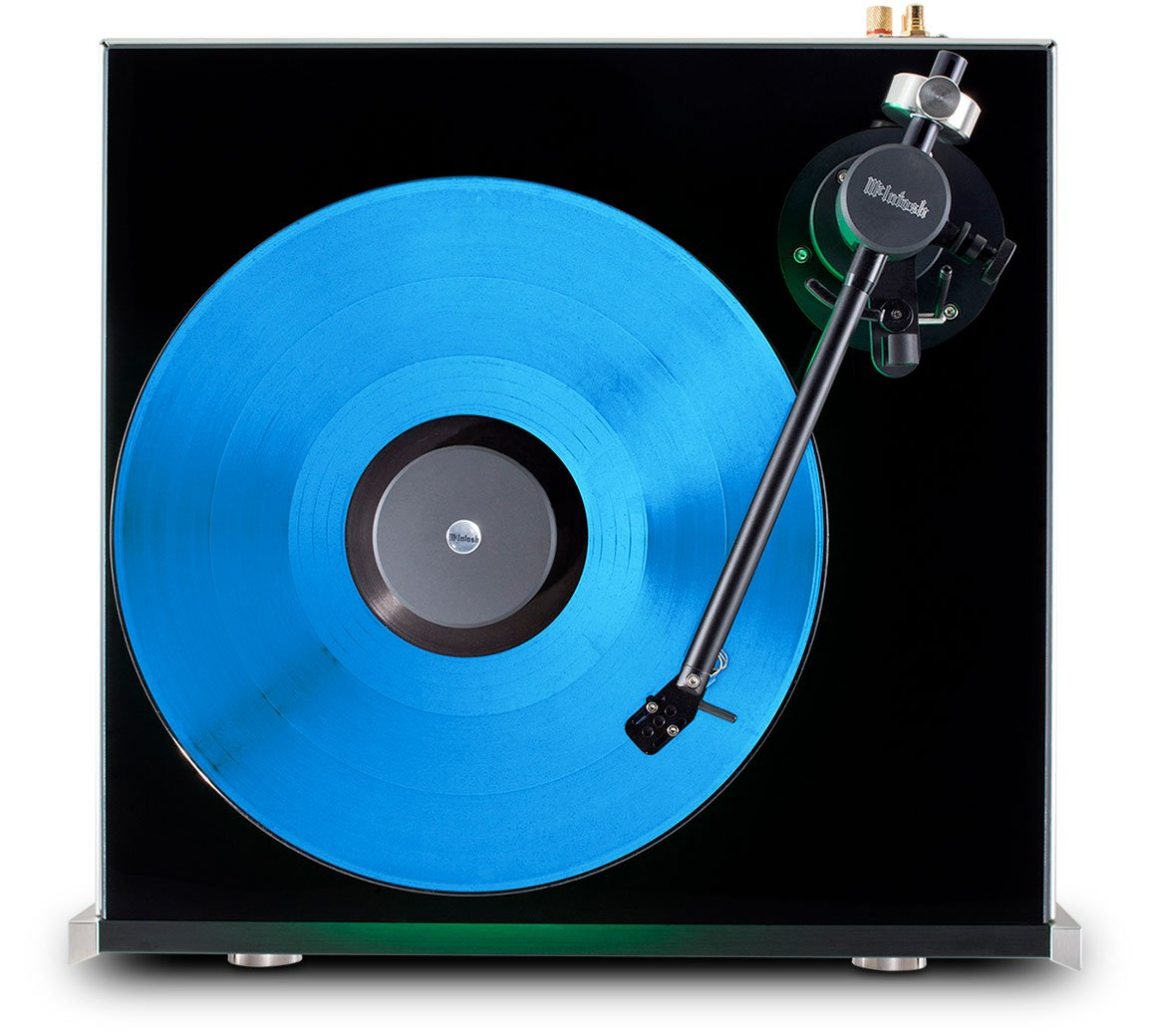

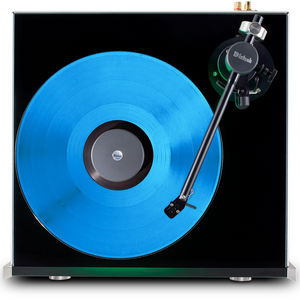

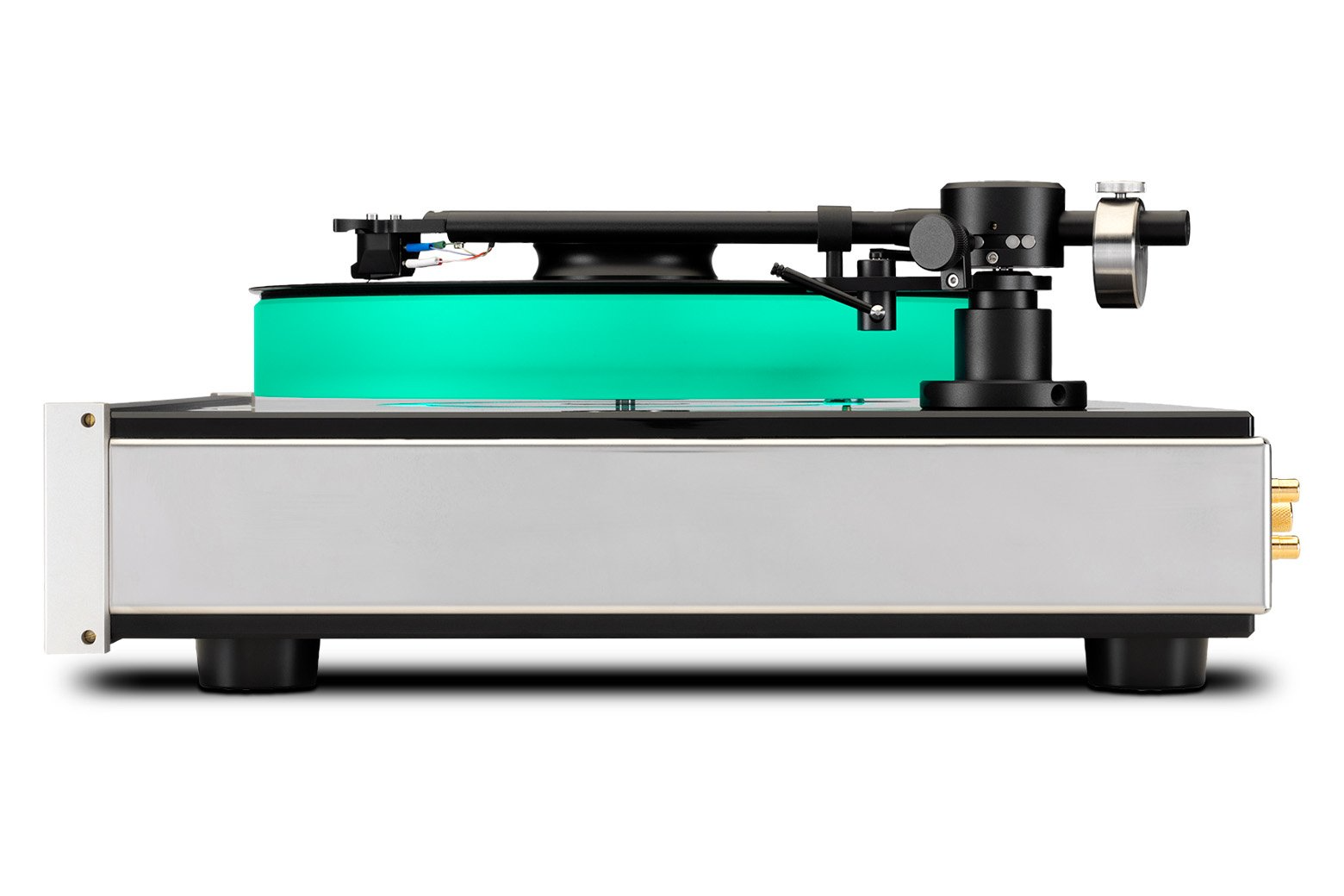

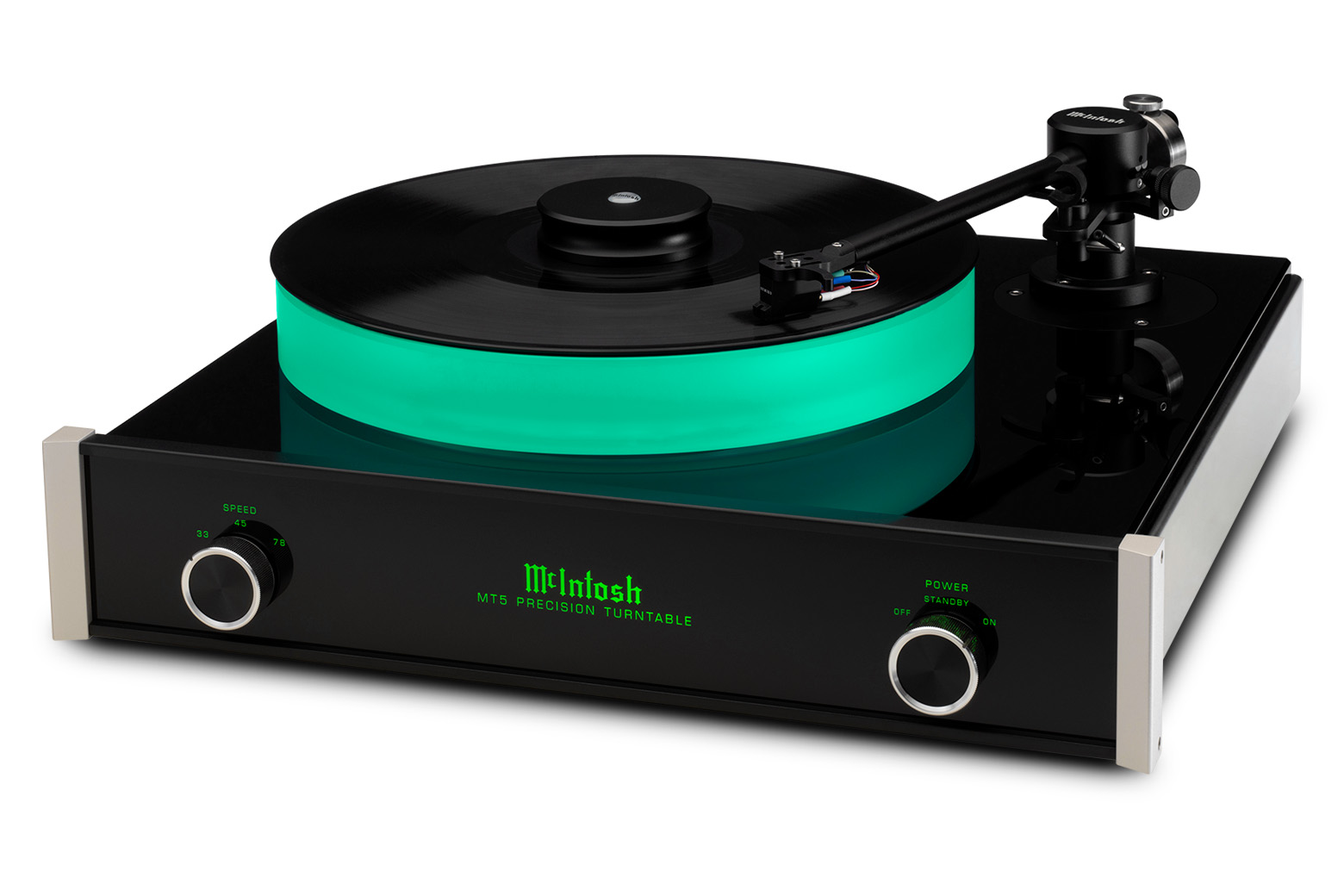

The McIntosh MT5 precision turntable is a complete turntable package that is more than the sum of its parts.
The McIntosh MT5 turntable is engineered to exacting McIntosh's exacting standards, each piece contributes to delivering a superb performance.

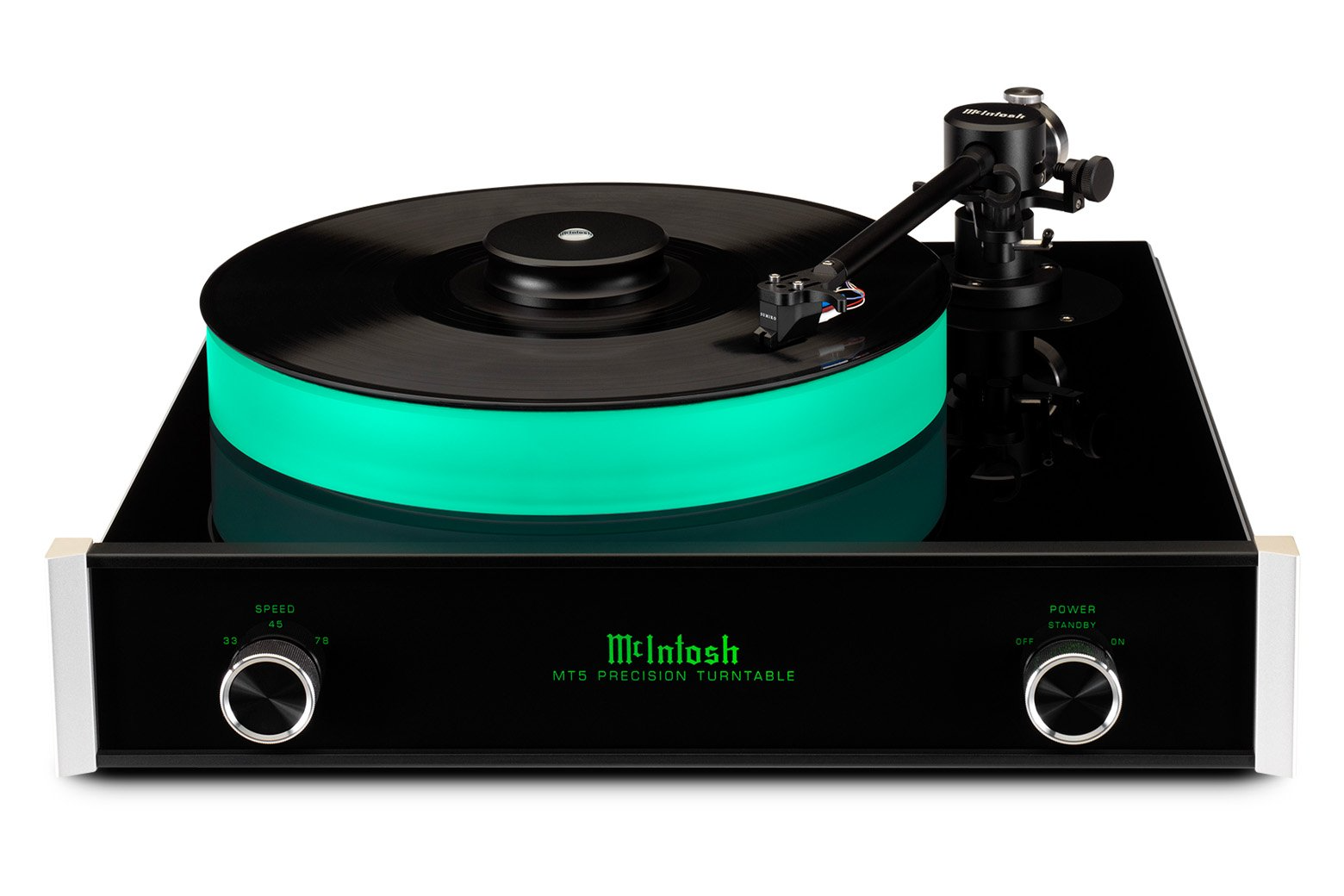

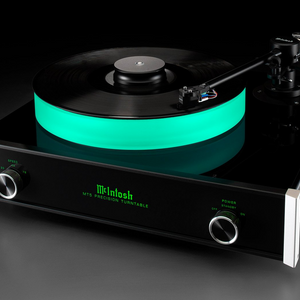

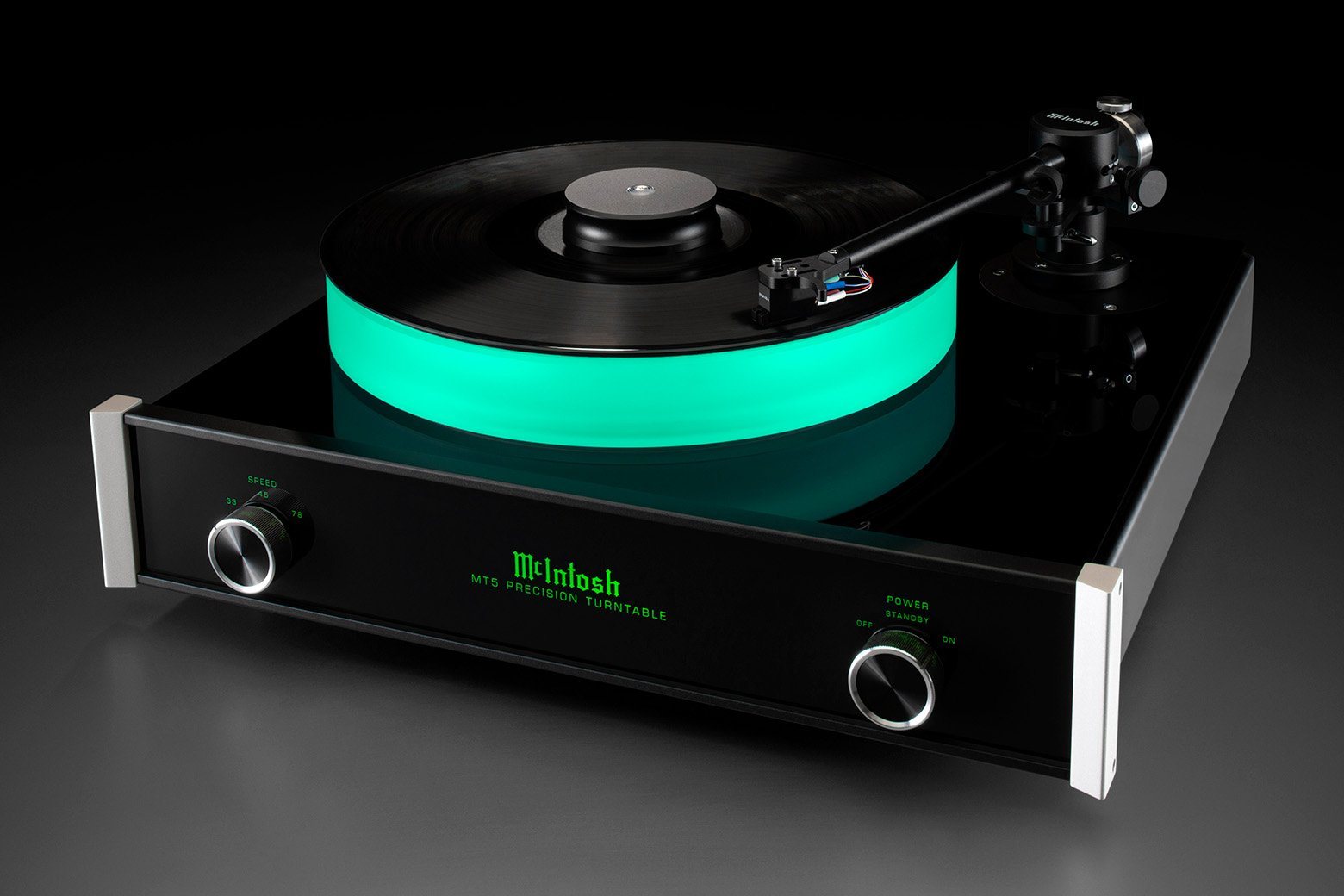

The MT5 comes equipped with a high-performance platter and motor drive assembly, precision tonearm and a high output moving coil cartridge that is also compatible with moving magnet inputs. The illuminated, magnetically suspended platter produces an inviting glow that's sure to be a conversation starter among friends and guests alike.
The MT5 is factory adjusted for perfect playback. Tracking force, anti-skate force, cartridge overhang and arm height are all preset for maximum performance. Advanced magnetic platter bearings and a precise belt drive motor spin records with absolute stability and quiet, assuring a pleasurable vinyl listening experience. The custom tonearm and matching moving coil cartridge track records with minimum friction using magnetic anti skate and horizontal, tone-arm bearings. While the construction of the MT5 is meticulous, the setup is simple. In a few easy steps, you’ll be ready to enjoy your favourite vinyl recordings.
While maintaining complementary McIntosh styling, the MT5 takes full advantage of the chassis materials used to suppress noise, resonance and colouration so the only sound produced is that which is on your records. A clear, form-fitting dust cover is included to protect the MT5's moving parts, along with your valued records. The MT5 turntable is compatible with any McIntosh stereo preamplifier or phono preamplifier and is a great piece to complete your two-channel stereo system. Contact your local dealer to learn more.
Specifications
Specifications
CARTRIDGE SPECIFICATIONS | |
Cartridge Type | Moving Coil, High Output |
Output Level | 2.5 mV at 5 cm/s |
Load Impedance | 1000 Ohms recommended (Preamp MC Input) |
Frequency Response | 20Hz to 50kHz |
Channel Separation | 35dB at 1kHz |
Compliance | 15 x 10-6 cm/dyne |
Recommended Tracking Force | 2.0 g |
Channel Difference | Less than 0.5 dB at 1kHz |
Total Mass | 6.3 g |
Stylus | Elliptical Diamond |
Cantilever Material | Aluminum |

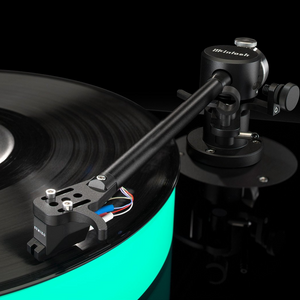

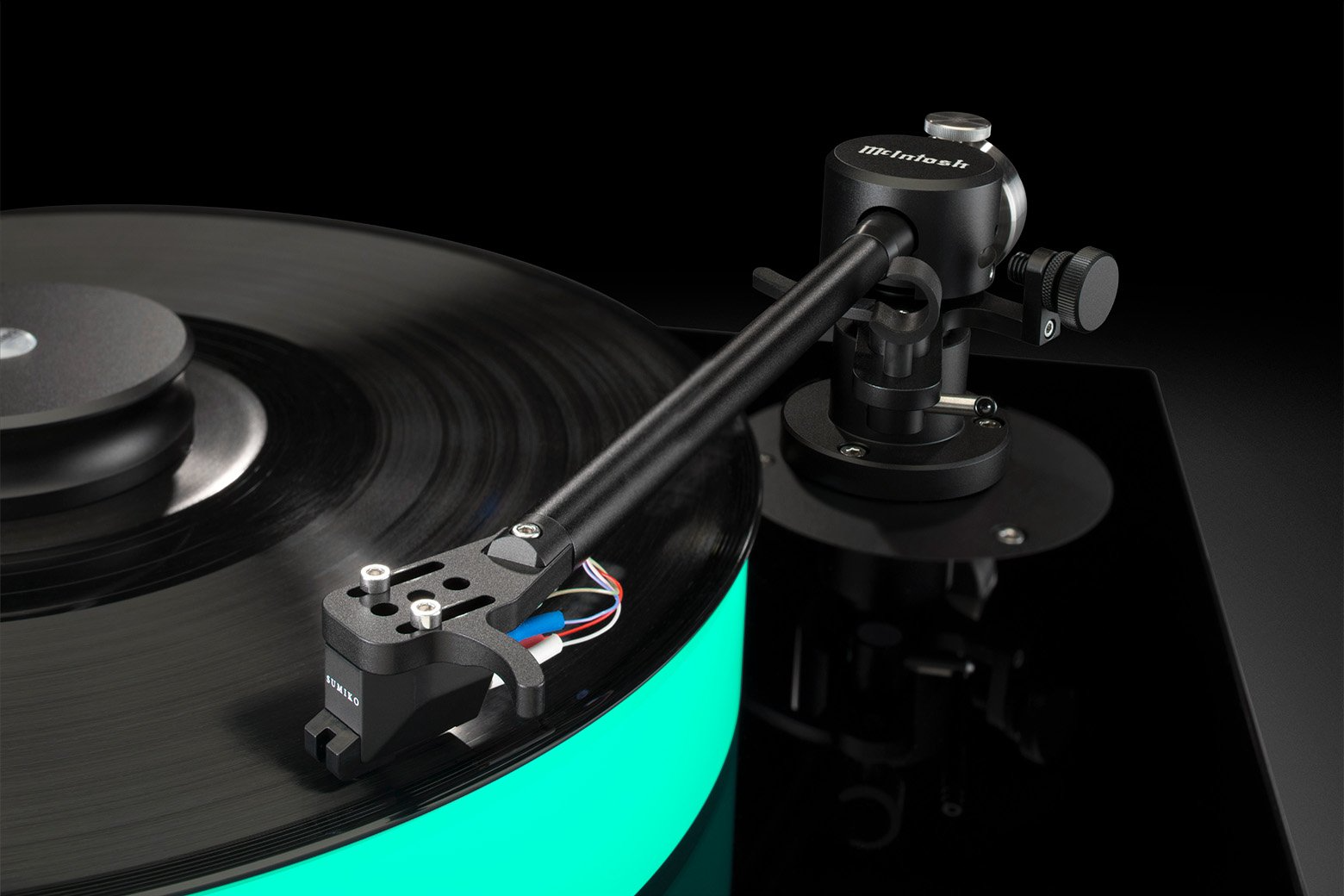

TONEARM SPECIFICATIONS | |
Bearing | Magnetic Sapphire and Ceramic |
Arm Tube | Dural-Aluminum |
Counterweight | Eccentric |
Adjustments | Vertical Tracking Angle, Antiskate, Azimuth |
TURNTABLE SPECIFICATIONS | |
Playback Speeds | 33 1/3, 45 and 78 rpm |
Motor Type | DC Motor with Stainless Steel Brushes |
Speed Control | Servo System |
Platter | Silicon Acrylic |
Platter Bearing | Magnetic Suspended Ceramic |

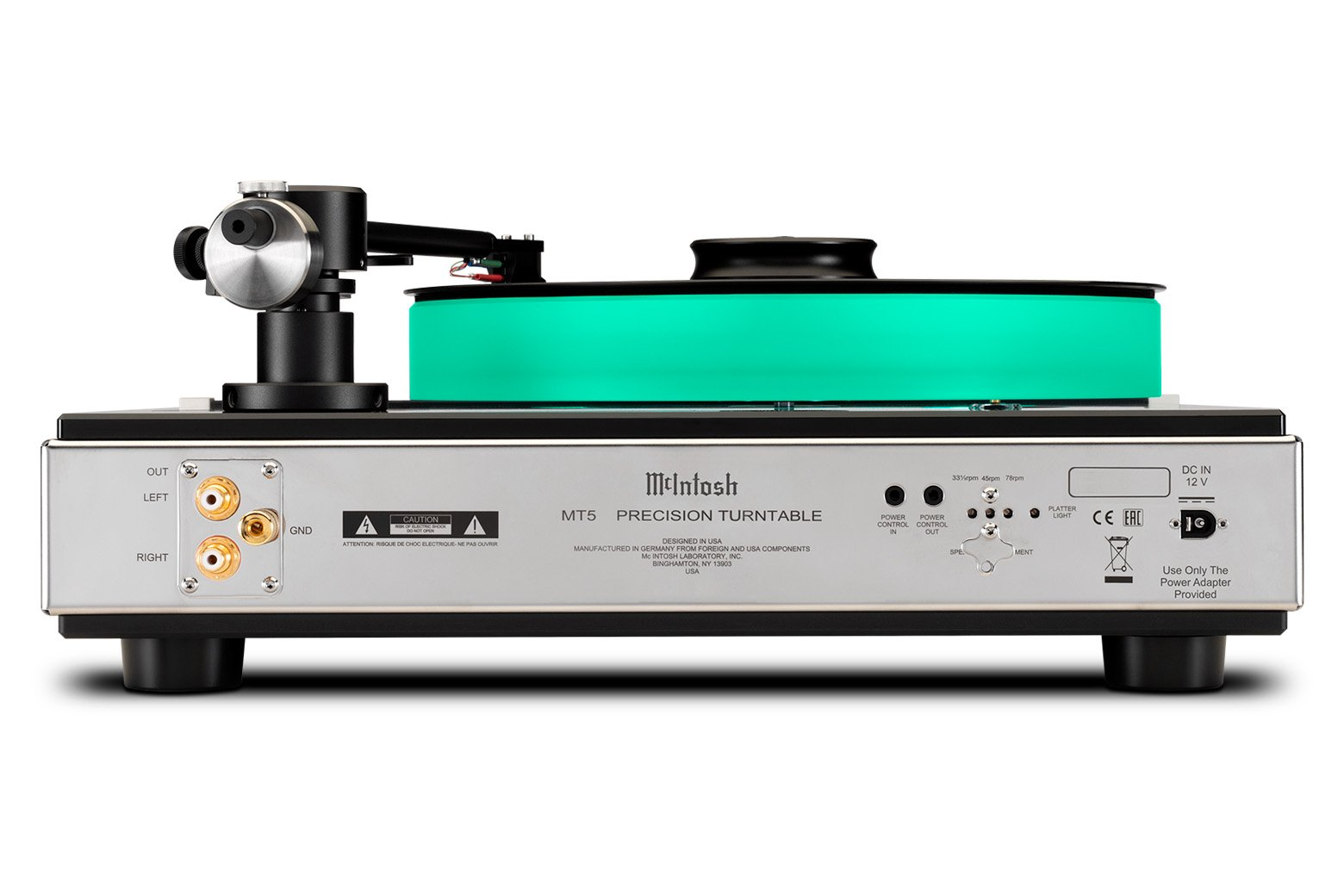

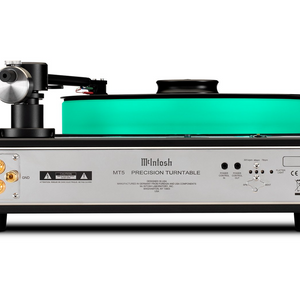

CONNECTIVITY | |
Stereo Outputs Unbalanced | 1 |
CONTROL | |
Power Control Input | 1 |
Power Control Output | 1 |
Platter Light | Yes |
Speed Control Fine Adjustment | Yes |
GENERAL SPECIFICATIONS | |
Dust Cover Included | Yes |
WEIGHTS & DIMENSIONS | |
Dimensions (W x H x D) | 17-1/2" (44.45cm) x 7" (17.8cm) (7-1/2" (19.0cm) with dust cover) x 19" (48.26cm) |
Note: Tone Arm Height will vary depending on the type of Cartridge installed. | |
Weight | 31.5 lbs (14.3 kg) |
Shipping Weight | 38 lbs (17.2 kg) |
