Details
Description

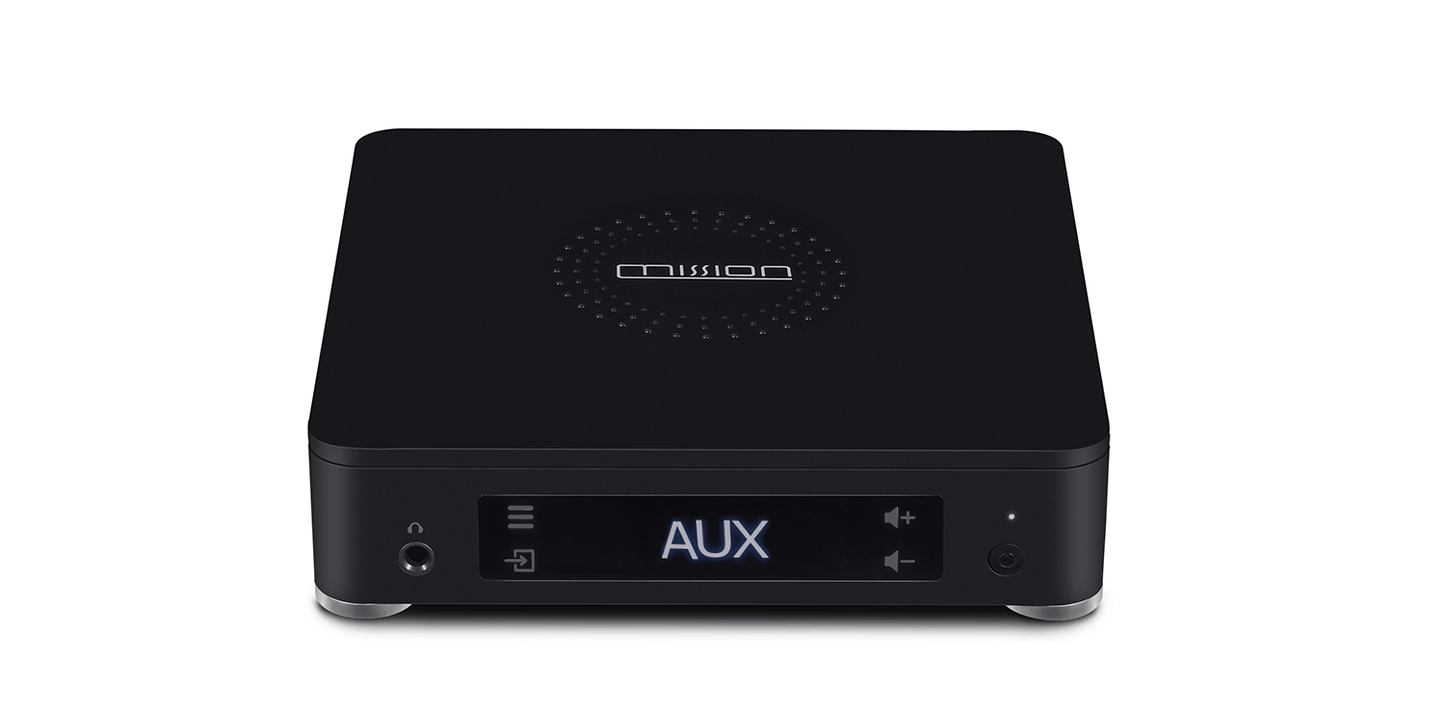

The Mission LX CONNECT DAC is a stand-alone digital-to-analogue converter, pre-amp and headphone amplifier, derived from the award-winning Mission LX CONNECT wireless speaker system. It fuses the Mission mantra of innovative, attractive design and class-leading performance with the latest audio technology, to enhance your audio experience.

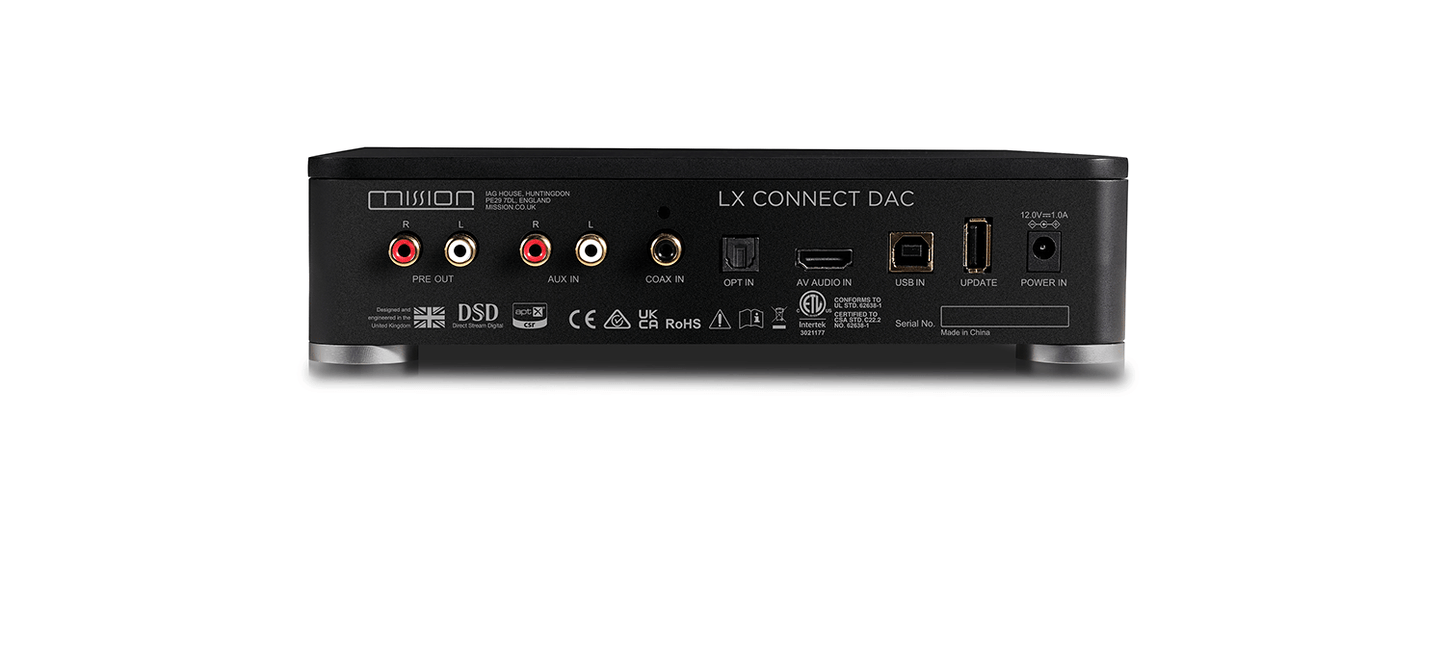

Designed to function as a central console for all your music sources, with analogue, optical and coax digital inputs, the Mission LX CONNECT DAC also features a dedicated HDMI ARC connection to bring high fidelity, true wireless performance for TV, movies and games. It is even equipped with a Bluetooth aptX receiver for wireless streaming of hi-resolution audio from tablets and smartphones. The LX CONNECT DAC is controlled gracefully via the touch-sensitive display, or for even more convenience you can use the included remote. The versatile connectivity options and compact form factor means it can be used as the all-encompassing DAC and pre-amp interface for any amplifier, active speakers, computer audio or head-fi system.
AUDIOLAB EXPERTISE
Mission has utilised the audio electronics expertise of sister-company Audiolab, maker of many award-winning DAC and amplifier components, to create the LX CONNECT DAC interface.
It incorporates a high-performance DAC stage based around the ES9018K2M DAC chip, from the Sabre32 Reference family. For ultra-low noise performance and high dynamic range, that ES9018K2M chip is accompanied by proprietary circuitry to make the most of ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator.
The LX CONNECT DAC supports hi-res PCM files up to 32-bit/384kHz over USB and 24-bit/192kHz via the coaxial and optical inputs; DSD (up to DSD256) is also supported over USB. An RCA-stereo output is provided with fixed and variable output options, fed by a high-quality analogue stage.
A high-quality headphone amp is also included, again derived from Audiolab – with its current-feedback circuitry, excellent gain bandwidth and high slew rate, a dynamic and detailed performance with all manner of headphones is assured.
ROON TESTED
The Roon platform has become the standard-bearer for high-quality digital music management and streaming. The LX CONNECT DAC is officially ‘Roon Tested’, meaning it has been put through its paces rigorously by Roon and certified for use in a Roon audio environment – for example, when connected to a PC or Mac running Roon software.
As a standalone desktop DAC / headphone amp / pre-amp solution, there aren’t many single units that offer a performance and specification to match LX CONNECT DAC, in this price segment.
SPECIFICATIONS
| Model | LX CONNECT DAC |
| General Description | Digital-to-Analogue Convertor, Headphone Amplifier and Pre-amp |
| Analogue Input | RCA (AUX) |
| Digital Input | OPT, COAX, PC USB, Bluetooth, AV Audio |
| Analogue Output | RCA Pre Out |
| Pre Amplifier | |
| Input Sensitivity | 300mV (AUX IN, volume = MAX) |
| Input Impedance | 13K (AUX IN) |
| Variable Output Voltage | 0 – 3.2V |
| Output Impedance | 100 ohm |
| Frequency Response | 20Hz-20kHz (+/-0.3dB) |
| Signal-to-noise Ratio (S/N) | >100dB (AUX IN, A-weighted) |
| >110dB (digital Inputs, A-weighted) | |
| Total Harmonic Distortion | < 0.001% (digital sources) |
| < 0.005% (analogue sources) | |
| Sampling Rate | 24bit - 192kHz (OPT, COAX) |
| 32bit - 384kHz (USB, PCM) | |
| 2.8M for DSD64, 5.6M for DSD128, 11.2M for DSD256 (USB, DSD) | |
| Digital Filters | Fast Roll-off, Slow Roll-off, Minimum Phase |
| Dimensions | |
| Height (on feet) | 55mm |
| Width | 225mm |
| Depth (with terminals) | 231mm |
| System | |
| Outer Packaging | 418 x 280 x 85mm |
| Net Weight | 1.75kg |
| Finish | Black |
| Power Requirements | Adapter - Input: 100-240Vac (50/60Hz) Output: 12V 1A |
