Description

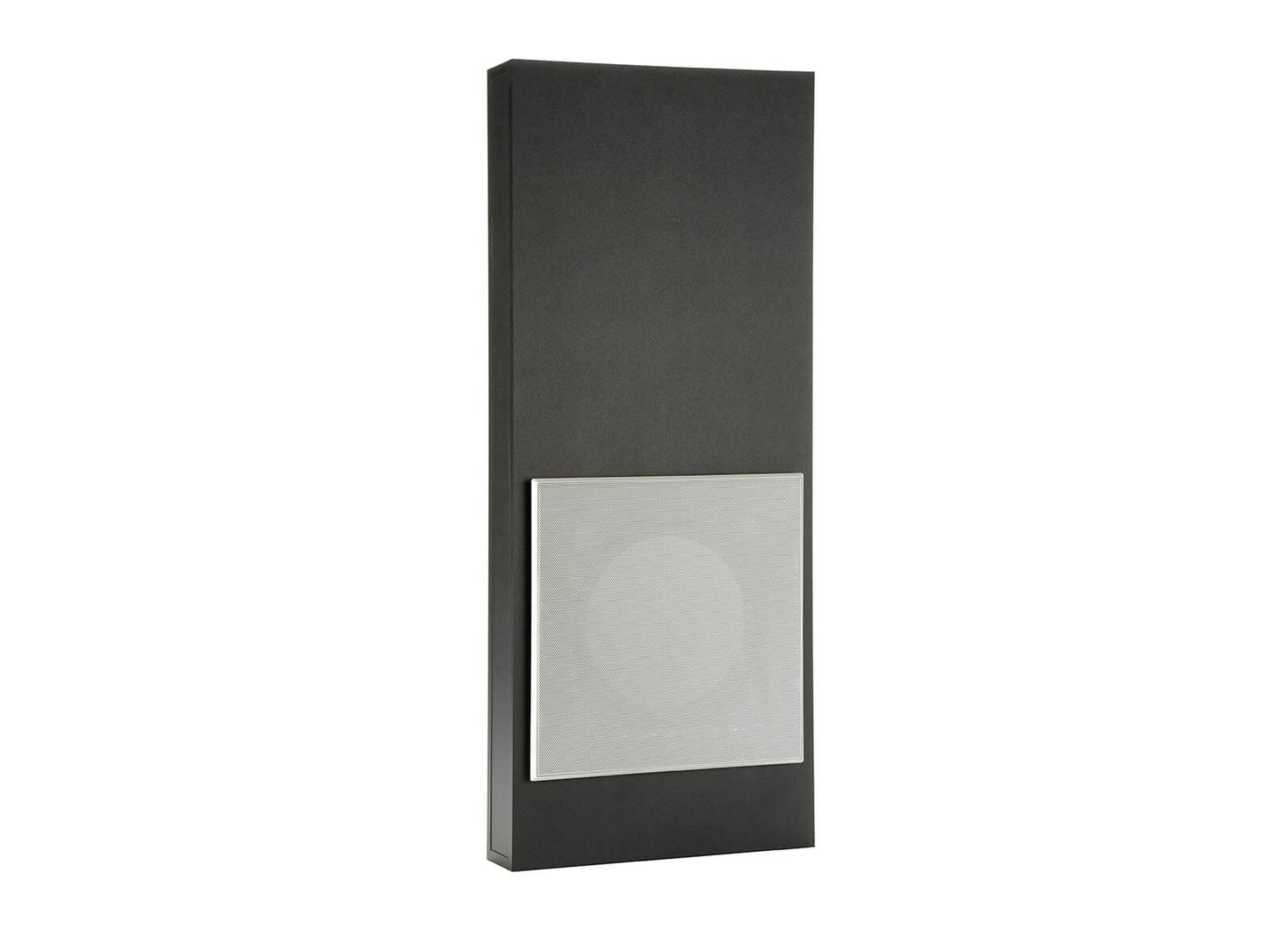

The IWS-10 is specified to produce excellent bass quality in a range of wall, ceiling, even floor locations, ideally but not exclusively with its IWB-10 back box.

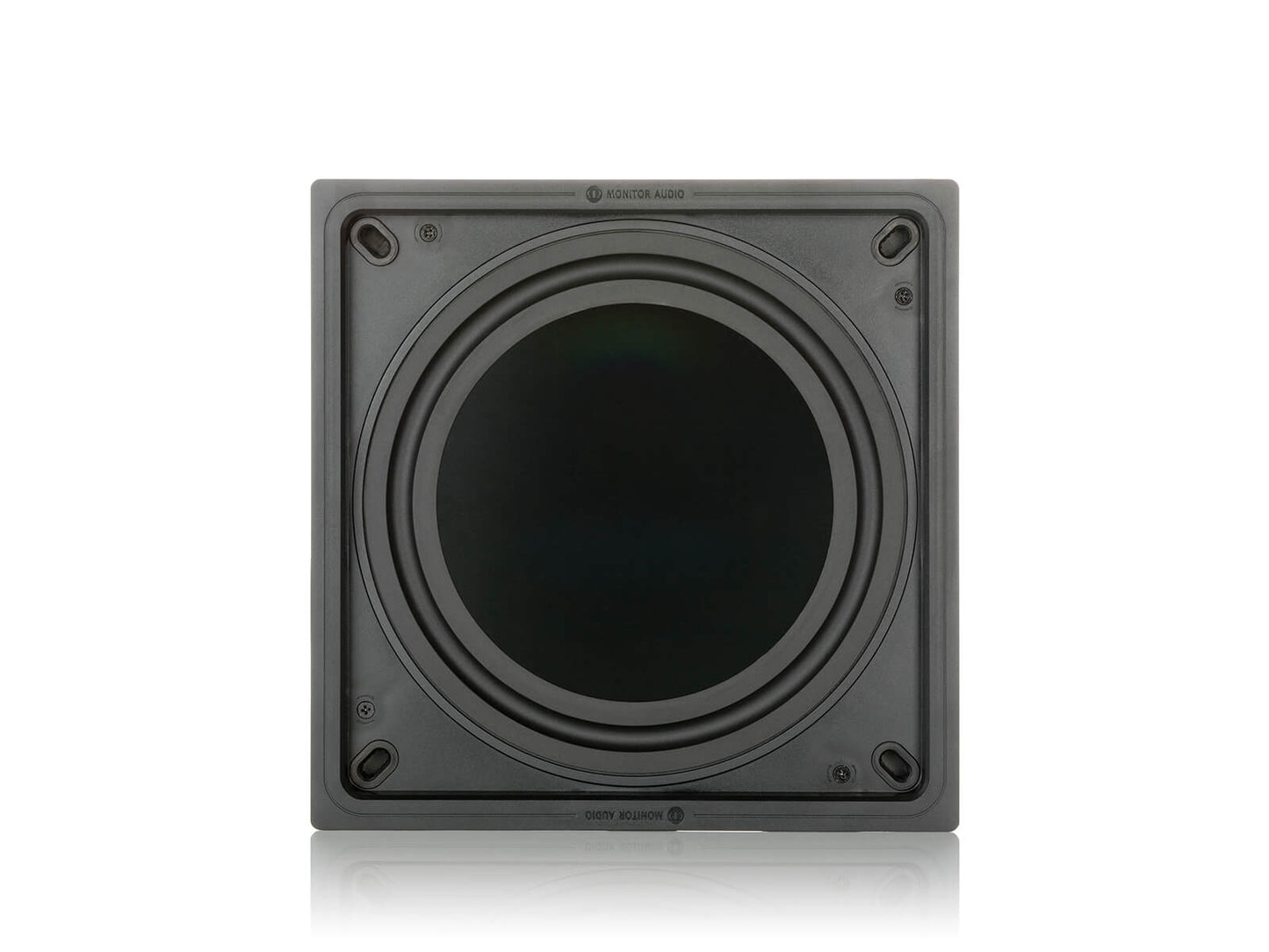

The IWS-10 subwoofer driver employs a rigid, flat 10” surface of 10 mm (3/8") RDT material derived from Monitor audio’s acclaimed ‘Platinum’ series of high-end speakers. A large vented pole helps to move air quickly, reducing power compression and increasing heat dissipation.

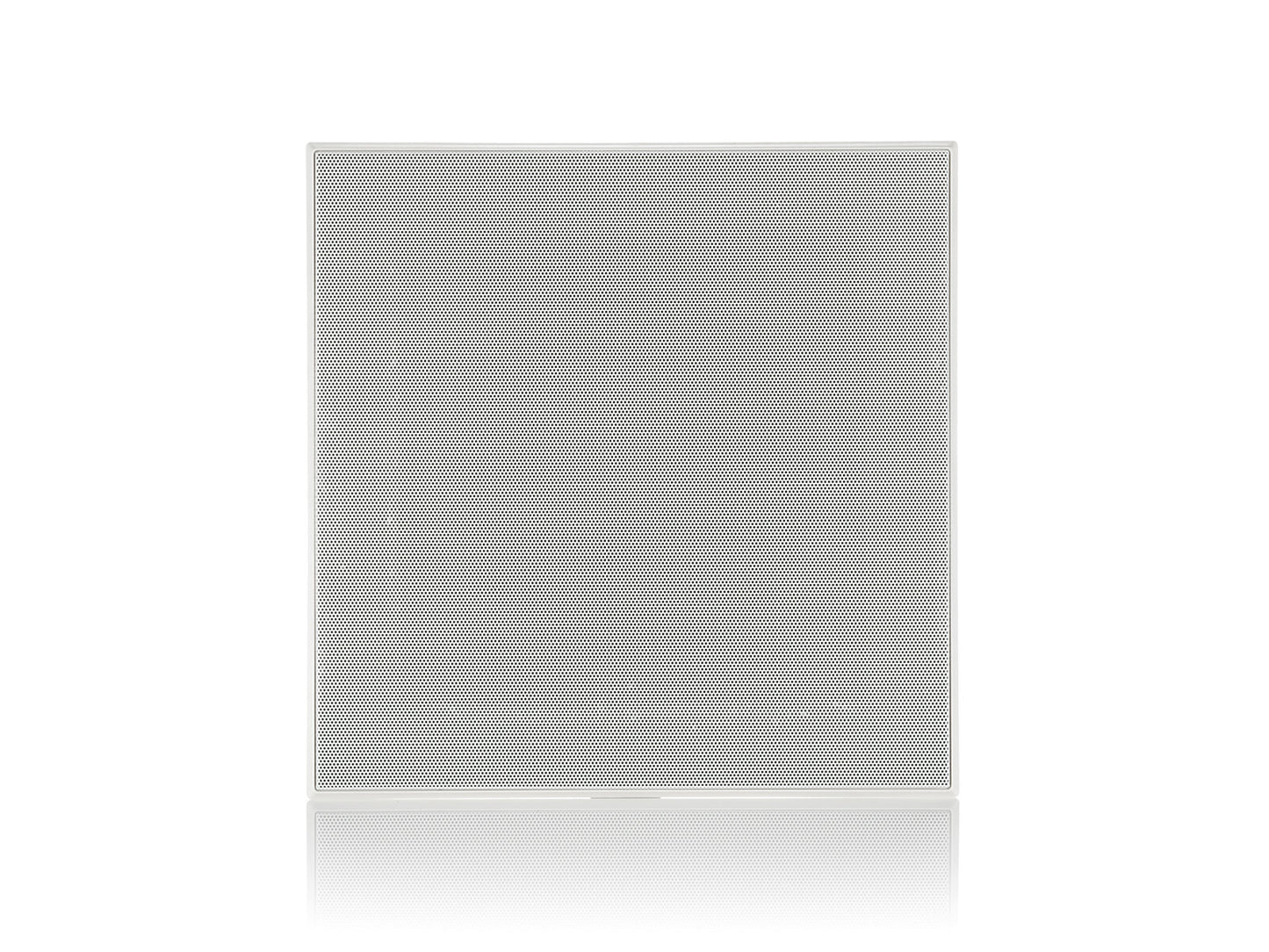

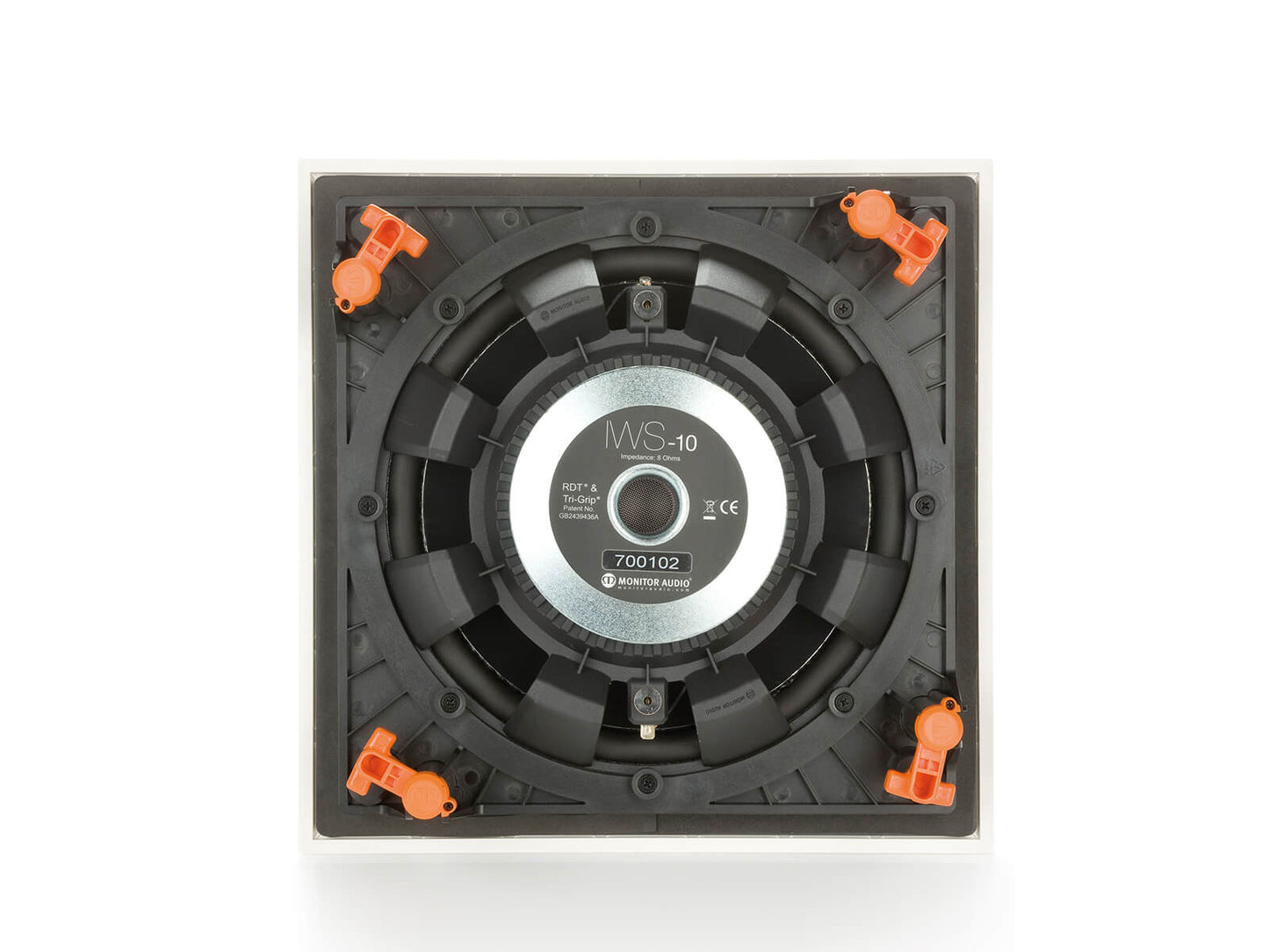

It features Monitor Audio’s patented Tri-Grip clamping system and paintable trim-less grille and frame edge.
Specifications
Specifications
Frequency Response | 28 Hz — 120 Hz (when mounted in optimum enclosure) |
Sensitivity (1W@1M) | 86 dB |
Nominal Impedance | 8 ohms |
Maximum SPL | Single unit 109.8 dB; Pair 115.8 dB |
Power Handling (RMS) | 150 W |
Cut-Out Dimensions | 280 x 280 mm (11 x 11") |
Mounting Depth | 89.98 mm (3 1/2") |
Fixing Type | 4 position Tri-Grip dog leg fixings |
Connection | Gold plated "push" type terminals |
Construction Material | Mineral Filled ABS Plastic (RoHS2 Compliant) |
Overall Dimensions (H x W x D) | 302 x 302 x 92.28 mm (11 7/8 x 11 7/8 x 3 5/8") |
Overall Dimensions (Including Grille (H x W x D)) | 314.21 x 314.21 x 100.78 mm (12 3/8 x 12 3/8 x 3 15/16") |
Weight | 3.8 kg (8 lb 6 oz) |
Sold As | Single Unit |
