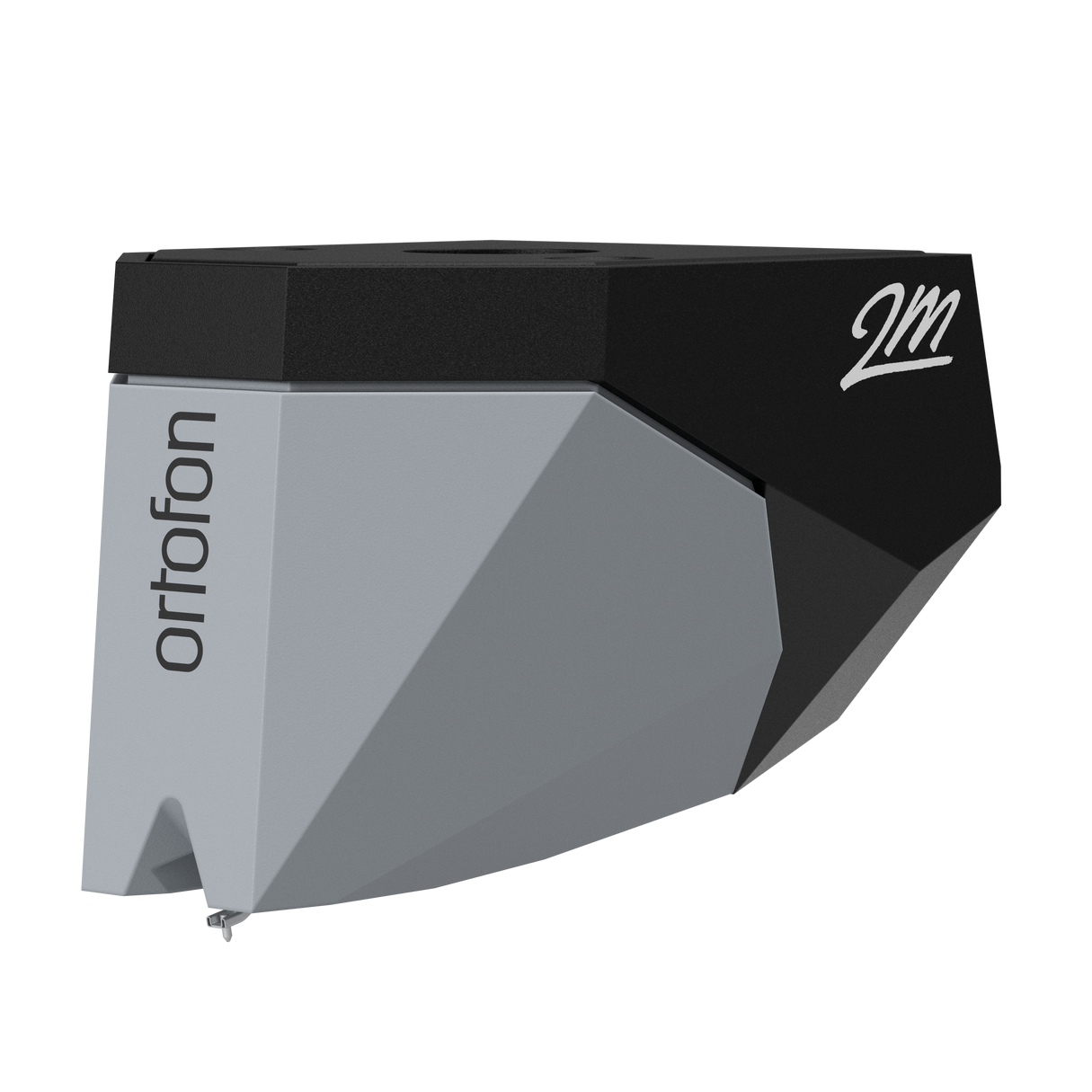

Ortofon 2M 78 MM Cartridge

Name: Ortofon 2M 78 MM Cartridge
Brand: Ortofon
SKU: 2M 78
Price: 119 GBP
Availability: InStock

£119.00

Sale Sold out

Product variants

Quantity

Trade in Available Book a Demo

Pay in 3

View full details

Details

Description

2M 78

Journey back in time with the 2M 78 Mono Cartridge, specially designed for playing 78 rpm shellac records. Immerse yourself in the authentic nostalgia of mono vinyl records brought to life with unparalleled precision and fidelity.

Made for Mono

Stylus

The 2M 78 features a stylus' tip with a Spherical diamond, perfect for playback of 78 rpm shellac records. These unique records necessitate a larger stylus profile, and the 2M 78 flawlessly accommodates this requirement, ensuring optimal playback quality and preserving the authenticity of your cherished collection.

Enjoy true mono

Output

The 2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Universal fit

Compatibility

The 2M Series is designed for easy mounting of the cartridge, and for the weight and size to fit the most common turntables on the market today.

The 2M Series are available in four different product variant configurations: the 2M for most common turntables on the market; the 2M Premounted, for customers who wish direct and easy mounting and replacement on their S-shaped tonearm; the 2M Verso, for bottom mount headshells; and the 2MR, which is designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

Specifications

Output voltage at 1 kHz, 5cm/sec	4 mV
Frequency response	20 Hz - 20 kHz
Frequency response tolerance	3 / - 1 dB
Tracking ability at 315 Hz	70 µm
Compliance, dynamic, lateral	18 µm/mN
Cantilever material	Aluminium
Stylus type	Spherical
Stylus tip radius	R 65 µm
Tracking force range	1.6-2.0g (16-20 mN)
Tracking force, recommended	1.8 g (18 mN)
Tracking angle	20°
Internal impedance, DC resistance	700 Ohm
Cartridge colour	Black/Grey
Cartridge weight	7.2 g
Premounted cartridge weight	16.7 g
Recommended load resistance	47 kOhm
Internal inductance	350 mH
Recommended load capacitance	150-300 pF
