Details
Description
Features
-

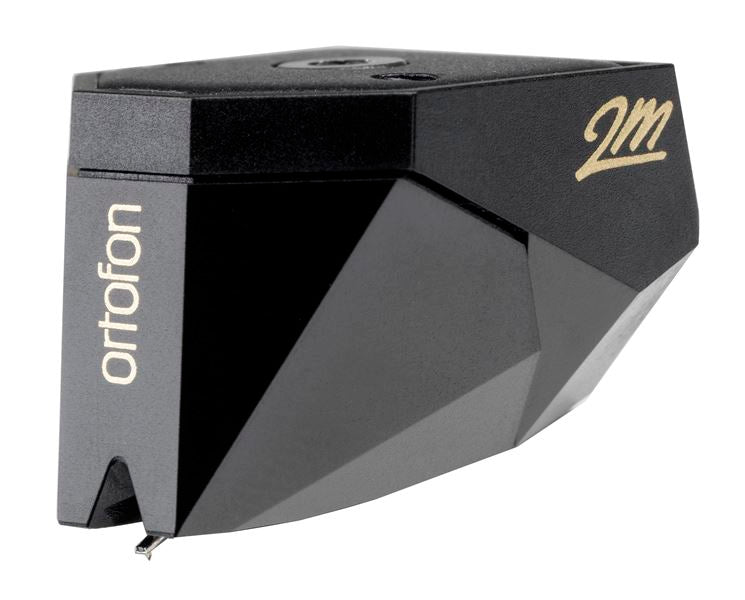

The 2M Black is graced with a Shibata diamond which slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the most high frequency groove information.
- The cartridge body is manufactured fromHopelex,an environment-friendly material which ensures high rigidity while eliminating unwanted resonances.
- The 2M Black usesa special upgraded engine, featuring split pole pins with a silver plated copper wire.
We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.
APPLICATIONS
2M standardmodel for top mount headshells. We have optimized the design for ease of mounting the cartridge; the weight and dimensions fit the most common turntables on the market today.
2M Versoconfiguration for bottom mount headshells. 2M Verso allows for easy mounting on tonearms which do not allow the screws to pass through the top of the headshell.
Maitenance Set included the package
2M Black Maintenance Set included the package:
Stylus brush, carbon fibre
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7
1 x Stylus pressure gauge
2M Black Verso Maintenance Set included the package*:
1 x Stylus brush, carbon fibre
1 x Allen key Torx 6
1 x Allen key Torx 8
2 x Screw M2,0 x 6
1 x Stylus pressure gauge
1 x Socket spanner
Specifications
Specifications
TECHNICAL DATA |
2M Black 2M Black Verso |
Output voltage at 1 kHz, 5cm/sec. | 5mV |
Channel balance at 1 kHz | 1 dB |
Channel separation at 1 kHz | 26 dB |
Channel separation at 15 kHz | 15 dB |
Frequency range at -3 dB | 20-31,000 H |
Frequency response |
20-20,000 Hz +2/-0 dB |
Tracking ability at 315 Hz at recommended tracking force |
80 µm |
Compliance, dynamic, lateral | 22 µm/mN |
Stylus type | Nude Shibata |
Stylus tip radius | r/R 6/50 µm |
Tracking force range | 1.4-1.7 g (14-17 mN) |
Tracking force, recommended | 1.5 g (15 mN) |
Tracking angle | 20° |
Internal Impedance, DC resistance | 1.2 kOhm |
ternal inductance | 630 mH |
Recommended load resistance | 47 kOhm |
Recommended load capacitance | 150-300 pF |
Cartridge colour, body/stylus | Black/Black |
2M / 2M Verso cartridge weight without screws |
7.2 g |
Replacement stylus unit | 2M Black |
Interchangeable with | 2M Bronze |
