Details
Description

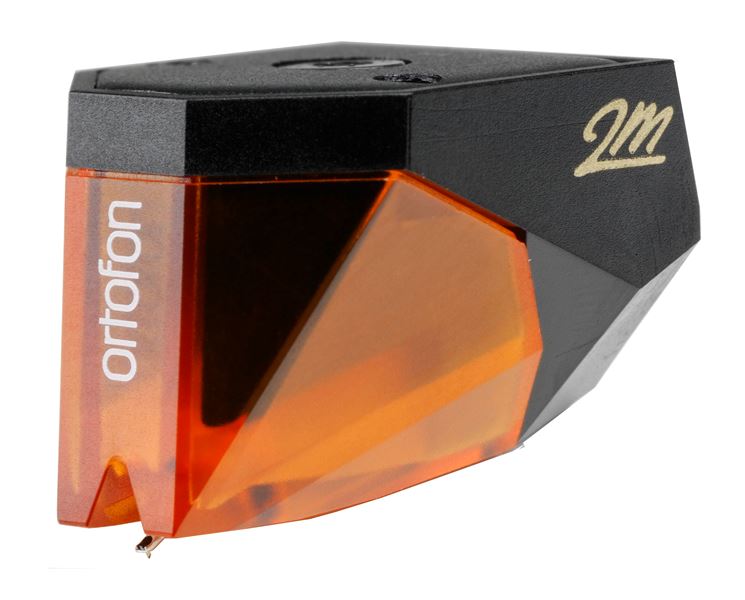

2M Bronze
The 2M Bronze features aNude Fine Line diamond, which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally, its larger footprint ensures reduced distortion and record wear.
The cartridge body is manufactured from Hopelex, a material which ensures high rigidity while eliminating unwanted resonances. The 2M Bronze uses aspecial upgraded engine, featuring split pole pins with a silver plated copper wire.
We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today.The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.
APPLICATIONS
2M standardmodel for top mount headshells. We have optimized the design for ease of mounting the cartridge; the weight and dimensions fit the most common turntables on the market today.
2M Versoconfiguration for bottom mount headshells. 2M Verso allows for easy mounting on tonearms which do not allow the screws to pass through the top of the headshell.
Maintenance Set included the package
2M Bronze Maintenance Set included the package:
1 x Stylus brush
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7
1 x Stylus pressure gauge
2M Bronze Verso Maintenance included the package*:
1 x Stylus brush
1 x Allen key Torx 6
1 x Allen key Torx 8
2 x Screw M2,0 x 6
1 x Stylus pressure gauge
Specifications
Specifications
TECHNICAL DATA |
2M Bronze 2M Bronze Verso |
Output voltage at 1 kHz, 5cm/sec. | 5mV |
Channel balance at 1 kHz | 1 dB |
Channel separation at 1 kHz | 26 dB |
Channel separation at 15 kHz | 15 dB |
Frequency range at -3 dB | 20-29,000 H |
Frequency response |
20-20,000 Hz +2/-0 dB |
Tracking ability at 315 Hz at recommended tracking force |
80 µm |
Compliance, dynamic, lateral | 22 µm/mN |
Stylus type | Nude Fine Line |
Stylus tip radius | r/R 8/40 µm |
Tracking force range | 1.4-1.7 g (14-17 mN) |
Tracking force, recommended | 1.5 g (15 mN) |
Tracking angle | 20° |
Internal Impedance, DC resistance | 1.2 kOhm |
ternal inductance | 630 mH |
Recommended load resistance | 47 kOhm |
Recommended load capacitance | 150-300 pF |
Cartridge colour, body/stylus | Black/Bronze |
2M / 2M Verso cartridge weight without screws |
7.2 g |
Replacement stylus unit | 2M Bronze |
Interchangeable with | 2M Black |
