Ortofon

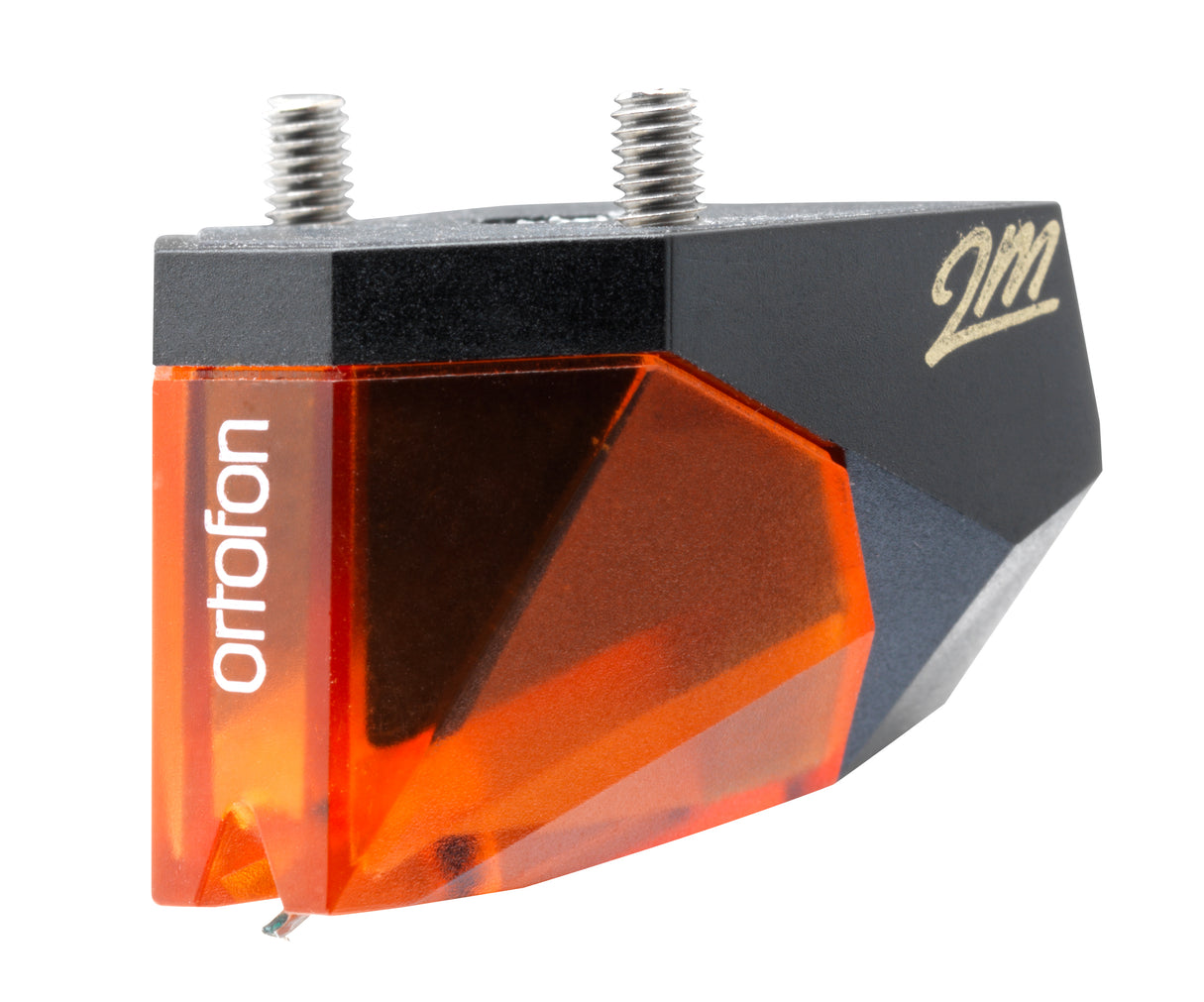

Ortofon 2M Bronze Verso MM Cartridge

Name: Ortofon 2M Bronze Verso MM Cartridge
Brand: Ortofon
SKU: 2M Bronze Verso
Price: 359 GBP
Availability: InStock

£359.00

Sale Sold out

Product variants

Quantity

Trade in Available Book a Demo

Pay in 3

View full details

Details

Description

2M Bronze Verso

The 2M Bronze Verso model is an alternative product for bottom mount headshells. Listening to your records with the 2M Bronze is like hearing them for the first time, and you get to fall in love with the songs all over again. That is what hi-fi means to us, and that is what you get with the 2M Bronze.

Rediscover your records

Accuracy level

To us, hi-fi is more than a fancy label. High fidelity is the goal of everything we do. The 2M Bronze is designed to give the music a whole new dimension of precision. Listening to your records with the 2M Bronze is like hearing them for the first time, and you get to fall in love with the songs all over again. That is what hi-fi means to us, and that is what you get with the 2M Bronze.

Nude Fine Line

Stylus

The 2M Bronze features a Nude Fine Line diamond particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information.

Split pole pin technology

Features

The 2M Bronze uses a special engine featuring Ortofon’s very own invention: split pole pins upgraded with a silver-plated copper wire.

Get on a journey with Leif Johanssen

Discover the 2M Series

In this video, Leif Johannsen takes you on a journey through the highly acclaimed Ortofon 2M series. Joining Ortofon in 2007, Leif Johannsen collaborated with then-Chief Engineer Per Windfeld on the development of the 2M Series. Together, their efforts led to the completion of the 2M Series, which now includes the 2M Red, 2M Blue, 2M Bronze, and 2M Black, and has since become an icon for Ortofon.

Leif Johanssen provides an informative walkthrough of Ortofon's color-coding system, offers insights into the distinct characteristics of each 2M model, and suggests potential upgrades within the 2M series.

Universal fit

Compatibility

The 2M Series is designed for easy cartridge mounting, weight, and size to fit the most common turntables today.

The 2M Series are available in four different product variant configurations: the 2M for most common turntables on the market; the 2M Premounted, for customers who wish direct and easy mounting and replacement on their S-shaped tonearm; the 2M Verso, for bottom mount headshells; and the 2MR, which is designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

How to replace M2.0 mm screws on 2M Verso

Replacement guide

Remove the stylus with the stylus protection guard from the cartridge body to avoid damaging the diamond.
Using the Torx 8 key, unscrew the black screw from the Verso top plate.
Gently detach the top plate by pulling the screws.
Remove the two countersunk screws from the top plate.
Insert the two M2.0 mm screws in the top plate.
Attach the top plate to the cartridge body by flipping it 180 degrees.
Mount the black screw in the top plate and tighten with appropriate force.
Mount the cartridge on the tonearm using the enclosed tool.
Mount the stylus with the stylus protection guard on the cartridge body.

Specifications

Channel balance at 1 kHz	1 dB
Output voltage at 1 kHz, 5cm/sec	5 mV
Channel separation at 1 kHz	26 dB
Frequency response 20 Hz - 20 kHz	2 / - 0 dB
Tracking ability at 315 Hz	80 µm
Compliance, dynamic, lateral	22 µm/mN
Stylus type	Nude Fine Line
Stylus tip radius	r/R 8/40 µm
Tracking force range	1.4-1.7 g (14-17 mN)
Tracking force, recommended	1.5 g (15 mN)
Tracking angle	20°
Internal impedance, DC resistance	1.2 kOhm
Cartridge colour	Black/Bronze
Cartridge weight	7.2 g
Premounted cartridge weight	16.7 g
Recommended load resistance	47 kOhm
Internal inductance	630 mH
Recommended load capacitance	150-300 pF
