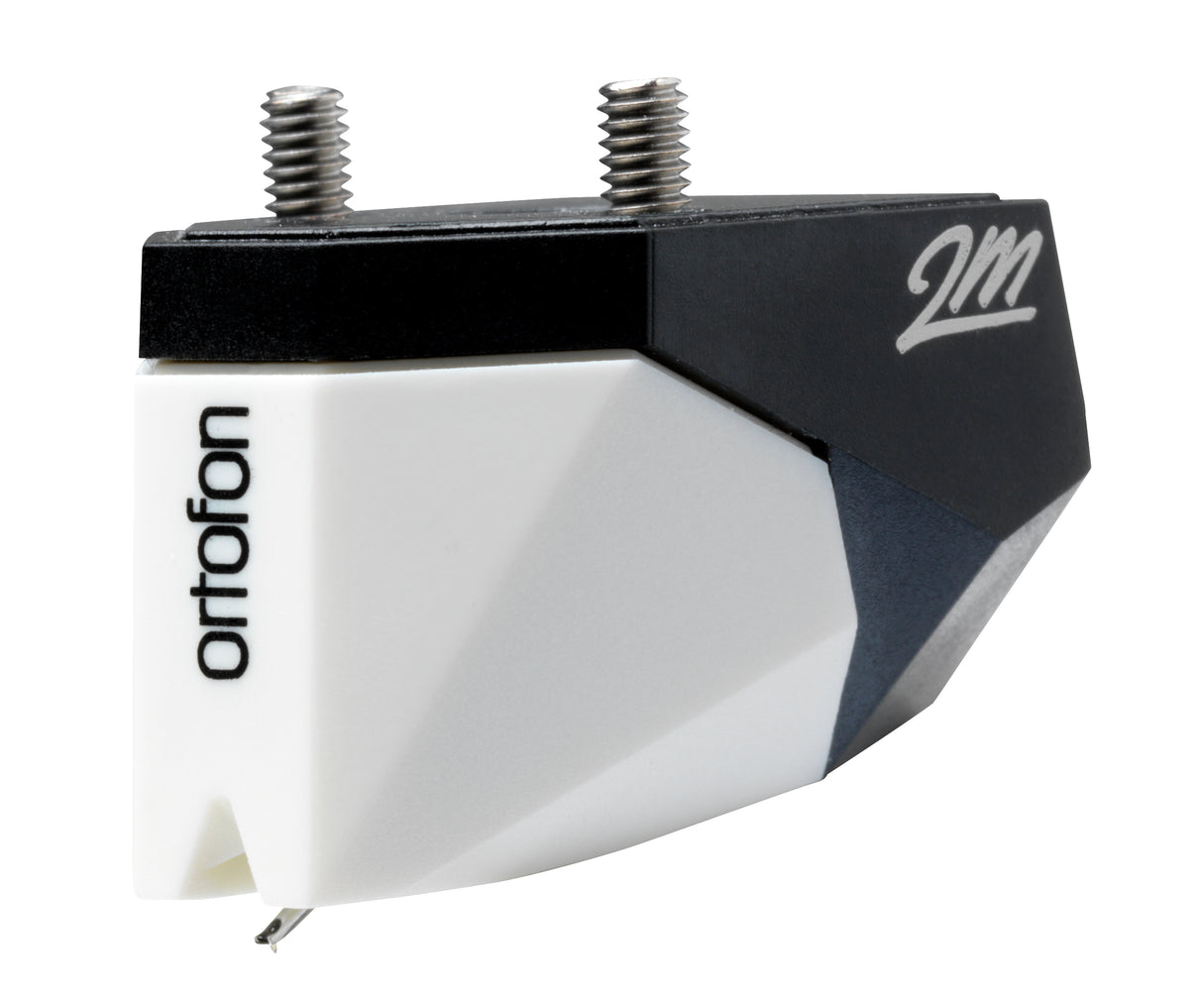

Ortofon 2M Mono Verso MM Cartridge

Name: Ortofon 2M Mono Verso MM Cartridge
Brand: Ortofon
SKU: 2M Mono Verso
Price: 349 GBP
Availability: InStock

£349.00

Sale Sold out

Product variants

Quantity

Trade in Available Book a Demo

Pay in 3

View full details

Details

Description

2M Mono Verso

The 2M Mono Verso model is an alternative product for bottom mount headshells. Step into an Era of Authenticity with the 2M Mono Cartridge, thoughtfully crafted to perfectly suit the intricacies of playing mono microgroove LP vinyl records. Immerse yourself in the authentic nostalgia of mono vinyl records brought to life with the 2M Mono.

Brings out the best in your mono records

Stylus

Embark on an Elevated Mono Experience with the 2M Mono Cartridge. Designed to bring out the best in your mono microgroove LP vinyl records, it features a stylus tipped with an R 18µm Nude Spherical diamond. This engineered feature is an optimal solution for playing mono microgroove LP vinyl records and is ideal for achieving exceptional playback quality and capturing the essence of vintage mono soundscapes.

Enjoy true mono

Output

The 2M Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Universal fit

Compatibility

The 2M Series is designed for easy mounting of the cartridge and for the weight and size to fit the most common turntables on the market today. The 2M Mono is available in three different product variant configurations: 2M, 2M Premounted, for customers who wish direct and easy mounting and replacement on their S-shaped tonearm, and 2M Verso, for bottom mount headshells.

How to replace M2.0 mm screws on 2M Verso

Replacement guide

Remove the stylus with the stylus protection guard from the cartridge body to avoid damaging the diamond.
Using the Torx 8 key, unscrew the black screw from the Verso top plate.
Gently detach the top plate by pulling the screws.
Remove the two countersunk screws from the top plate.
Insert the two M2.0 mm screws in the top plate.
Attach the top plate to the cartridge body by flipping it 180 degrees.
Mount the black screw in the top plate and tighten with appropriate force.
Mount the cartridge on the tonearm using the enclosed tool.
Mount the stylus with the stylus protection guard on the cartridge body.

Specifications

Output voltage at 1 kHz, 5cm/sec	4 mV
Frequency response 20 Hz - 20 kHz	3 / - 1 dB
Tracking ability at 315 Hz	70 µm
Compliance, dynamic, lateral	18 µm/mN
Stylus type	Nude Spherical
Stylus tip radius	R18 µm
Tracking force range	1.6-2.0 g (16-20 mN)
Tracking force, recommended	1.8 g (18 mN)
Tracking angle	20°
Internal impedance, DC resistance	700 Ohm
Cartridge colour	Black/White
Cartridge weight	7.2 g
Premounted cartridge weight	16.7 g
Recommended load resistance	47 kOhm
Internal inductance	350 mH
Recommended load capacitance	150-300 pF
