Ortofon

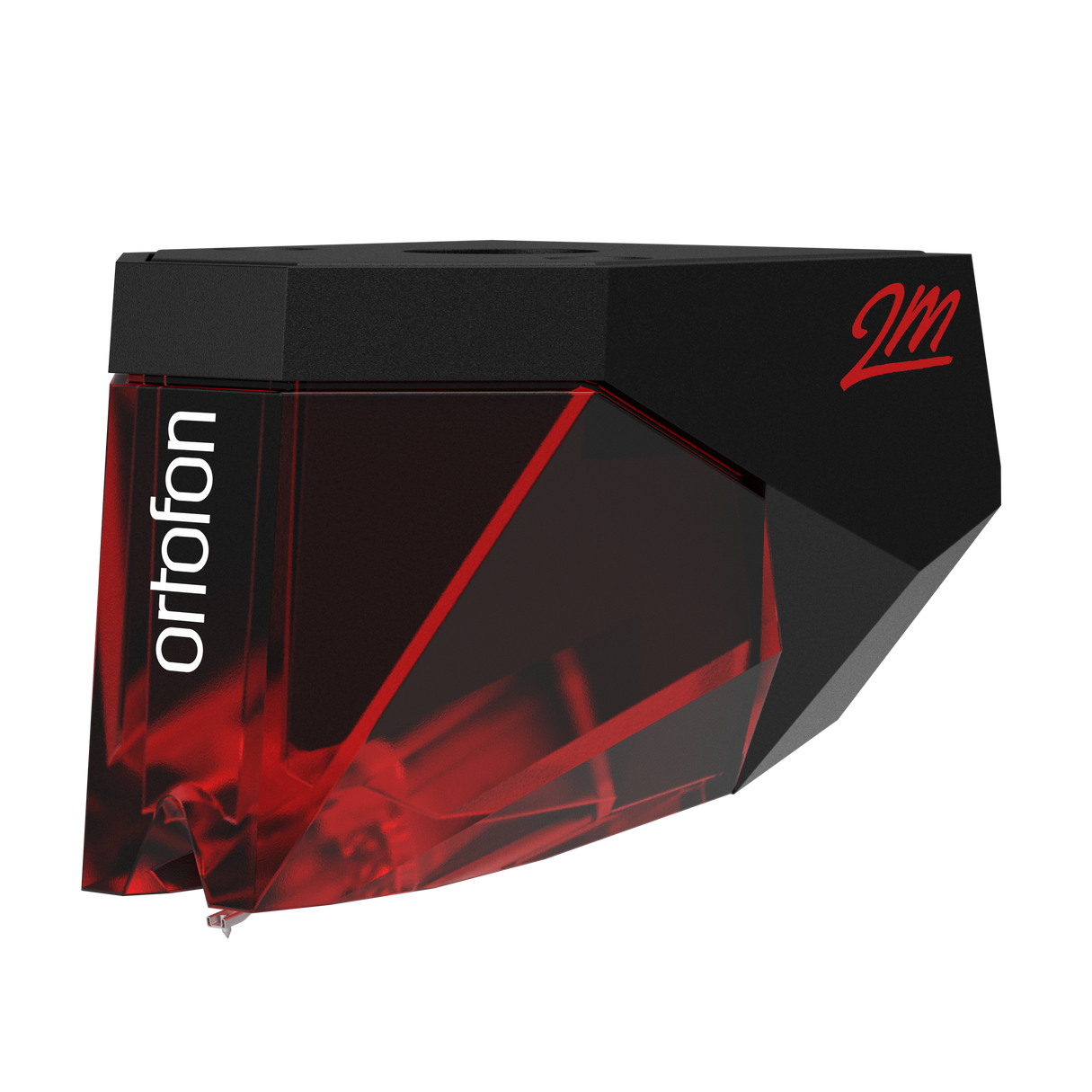

Ortofon 2M Red MM Cartridge

Ortofon 2M Red MM Cartridge

No reviews

Regular price £95.00
Regular price Sale price £95.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Free Delivery
  • Demo Available
  • Trade-in Available
View full details

Details

Description

Features

The 2M Red features a tipped Elliptical diamond and split pole pins with a copper wire.

An improved engine provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy.

The cartridge body is manufactured fromHopelex, which ensures high rigidity while eliminating unwanted resonances.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.

APPLICATIONS

2M standard model for top mount headshells. We have optimized the design for ease of mounting the cartridge; the weight and dimensions fit the most common turntables on the market today.

2M Verso configuration for bottom mount headshells. 2M Verso allows for easy mounting on tonearms which do not allow the screws to pass through the top of the headshell.

Maintenance Set included the package

2M Red Maintenance Set included the package:

1 x Stylus brush
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7

2M Red Verso Maintenance Set included the package*:

1 x Stylus brush
1 x Allen key Torx 6
1 x Allen key Torx 8
2 x Screw M2,0 x 6

Specifications

Specifications

TECHNICAL DATA

2M Red

2M Red Verso

Output voltage at 1 kHz, 5cm/sec. 5.5 mV
Channel balance at 1 kHz 1.5 dB
Channel separation at 1 kHz 22 dB
Channel separation at 15 kHz 15 dB
Frequency range at -3 dB 20-22,000 Hz
Frequency response

20-20,000 Hz

+3/-1 dB

Tracking ability at 315 Hz
at recommended tracking force
70 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 1.6-2.0 g (16-20 mN)
Tracking force, recommended 1.8 g(18 mN
Tracking angle 20°
Internal Impedance, DC resistance 1.3 kOhm
ternal inductance 700 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 150-300 pF
Cartridge colour, body/stylus Black/Red
2M / 2M Verso cartridge weight
without screws
7.2 g
Replacement stylus unit 2M Red
Interchangeable with 2M Blue
