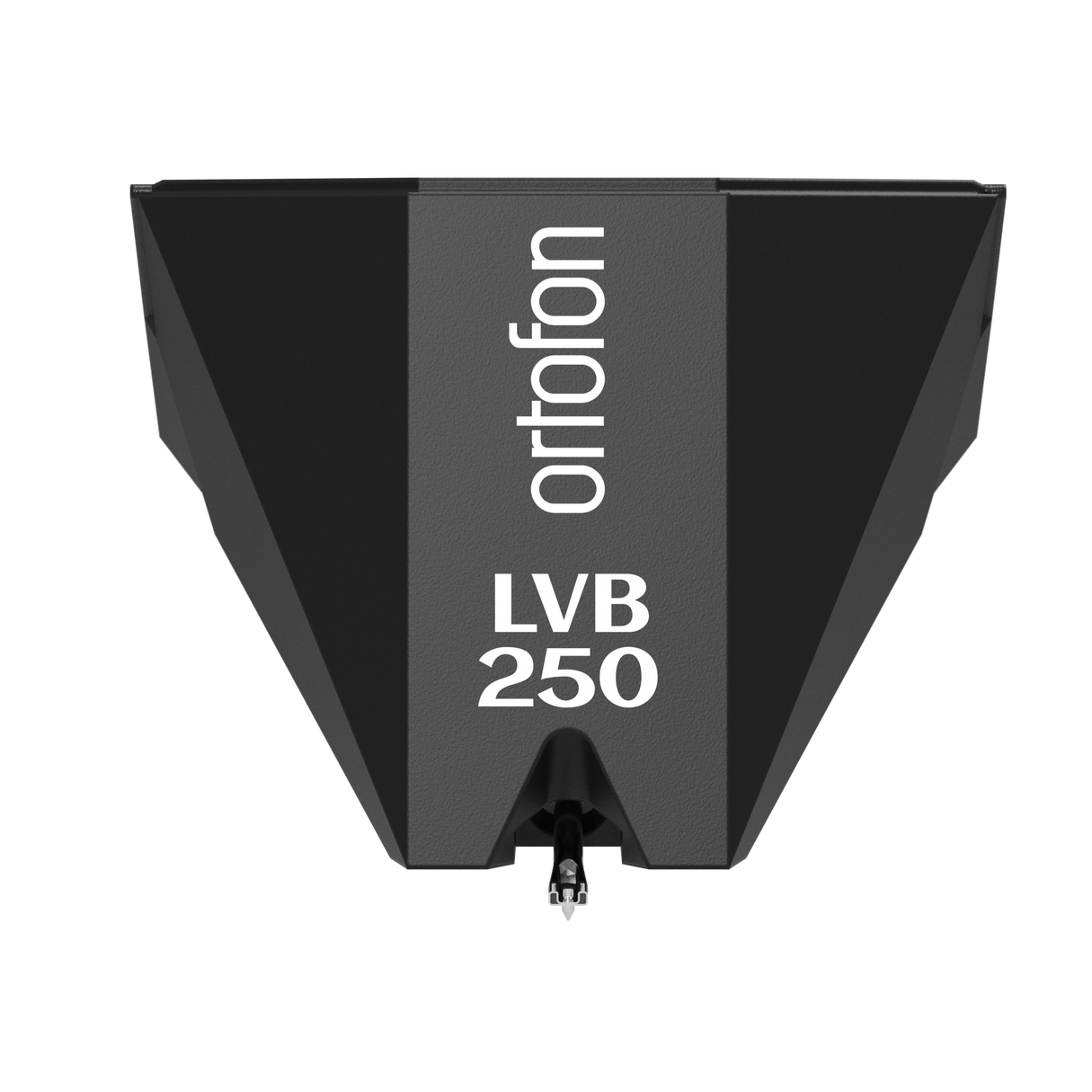

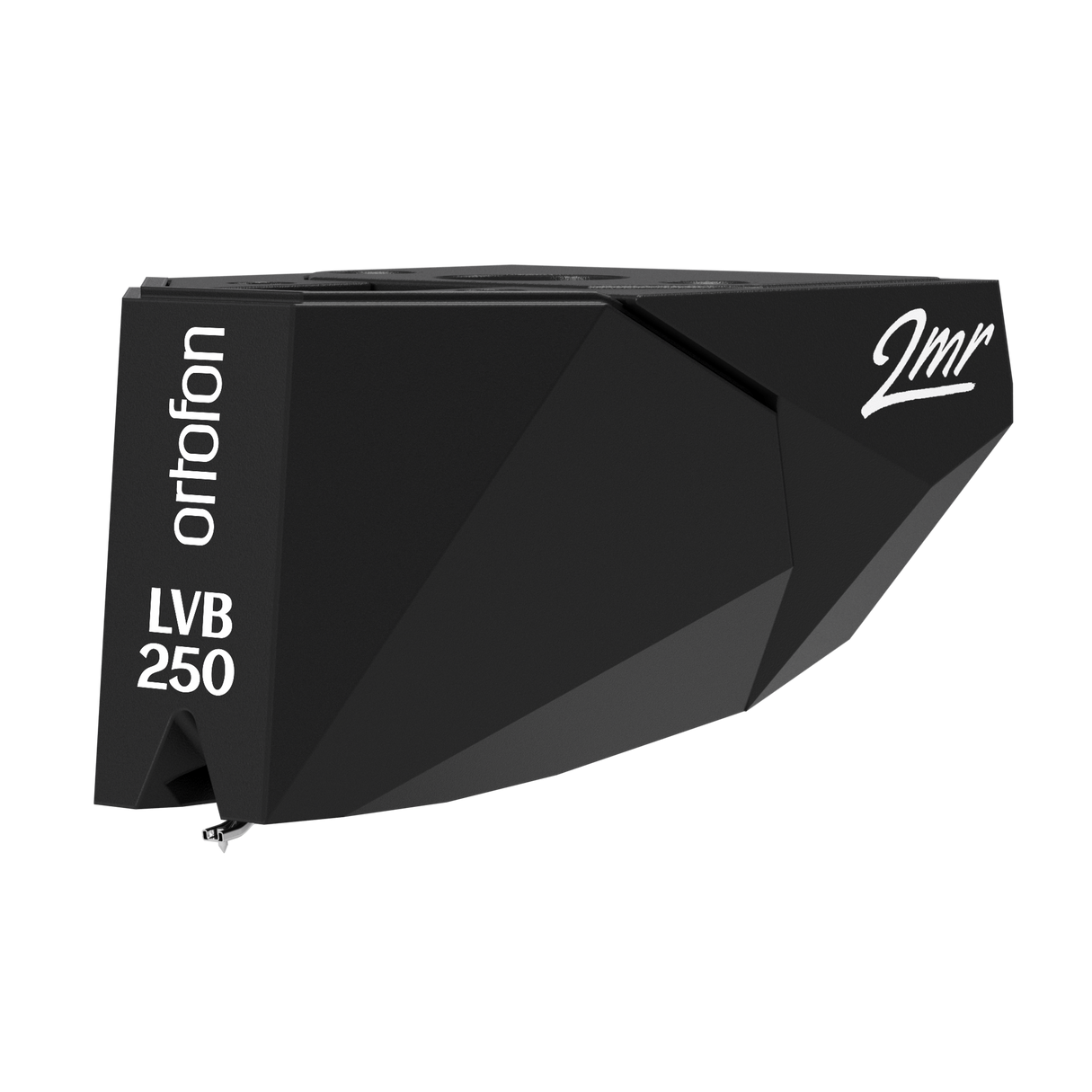

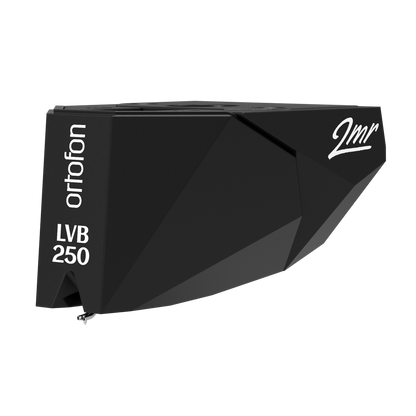

Ortofon 2MR Black LVB 250 MM Cartridge

Name: Ortofon 2MR Black LVB 250 MM Cartridge
Brand: Ortofon
SKU: 2MR Black LVB 250
Price: 799.0 GBP
Availability: InStock

£799.00

Sale Sold out

Product variants

Quantity

Trade in Available Book a Demo

Pay in 3

View full details

Details

Description

2MR Black LVB 250

The 2MR Black LVB 250 upgrades the great build of the 2M Black with a boron cantilever and our very own Nano Tube suspension system. The result is a sound so precise and so detailed that you feel like you have let the artist into your house and have them playing right in your living room.

The Ortofon 2MR features a specially designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

Like having the artist in the room with you

Accuracy level

The 2M Black is an amazing cartridge and, by many, considered the ultimate in moving magnet. So, why would we attempt to create something even better? Because perfection runs in our blood. The 2MR Black LVB 250 upgrades the great build of the 2M Black, and the result is a sound so precise and so detailed that you feel like you have let the artist into your house and have them playing right in your living room.

Nude Shibata diamond on a boron cantilever

Stylus

The 2M Black LVB 250 upgrades the great build of the 2M Black with a Nude Shibata diamond on a boron cantilever. The use of an extremely stiff and lightweight Boron cantilever adds remarkable transparency, speed, and responsiveness.

The Nude Shibata stylus’ slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the highest frequencies.

Nano Tube suspension system

Rubber suspension

The 2M Black LVB 250 features our very own Nano Tube suspension system. The new rubber compound formula is based on the Multi Wall Carbon Nano Tubes' (MWCNT) highly efficient nano filler. The new MWCNT-based compound offers desirable mechanical properties, which ensure better damping and improve the overall performance of the cartridge.

In this video, Leif Johannsen explores the power of materials used in the different parts of a cartridge and demonstrates the differences in the damping properties of the rubber.

Designed for low-profile turntables

Compatibility

The Ortofon 2MR Black LVB 250 features a specially designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.

Specifications

Channel balance at 1 kHz	< 1 dB
Output voltage at 1 kHz, 5cm/sec	5 mV
Channel separation at 1 kHz	> 27 dB
Frequency response 20 Hz - 20 kHz	+ 2 / - 1 dB
Tracking ability at 315 Hz	80 µm
Compliance, dynamic, lateral	22 µm/mN
Cantilever material	Boron
Stylus type	Nude Shibata diamond
Stylus tip radius	r/R 6/50 µm
Tracking force range	1.5-1.7 g (15-17 mN)
Tracking force, recommended	1.6 g (16 mN)
Tracking angle	20°
Internal impedance, DC resistance	1.2 kOhm
Cartridge colour	Black
Cartridge weight	6 g
Recommended load resistance	47 kOhm
Internal inductance	630 mH
Stylus colour	Black
Recommended load capacitance	47 kOhm
Replacement stylus	Stylus 2M Black LVB 250
