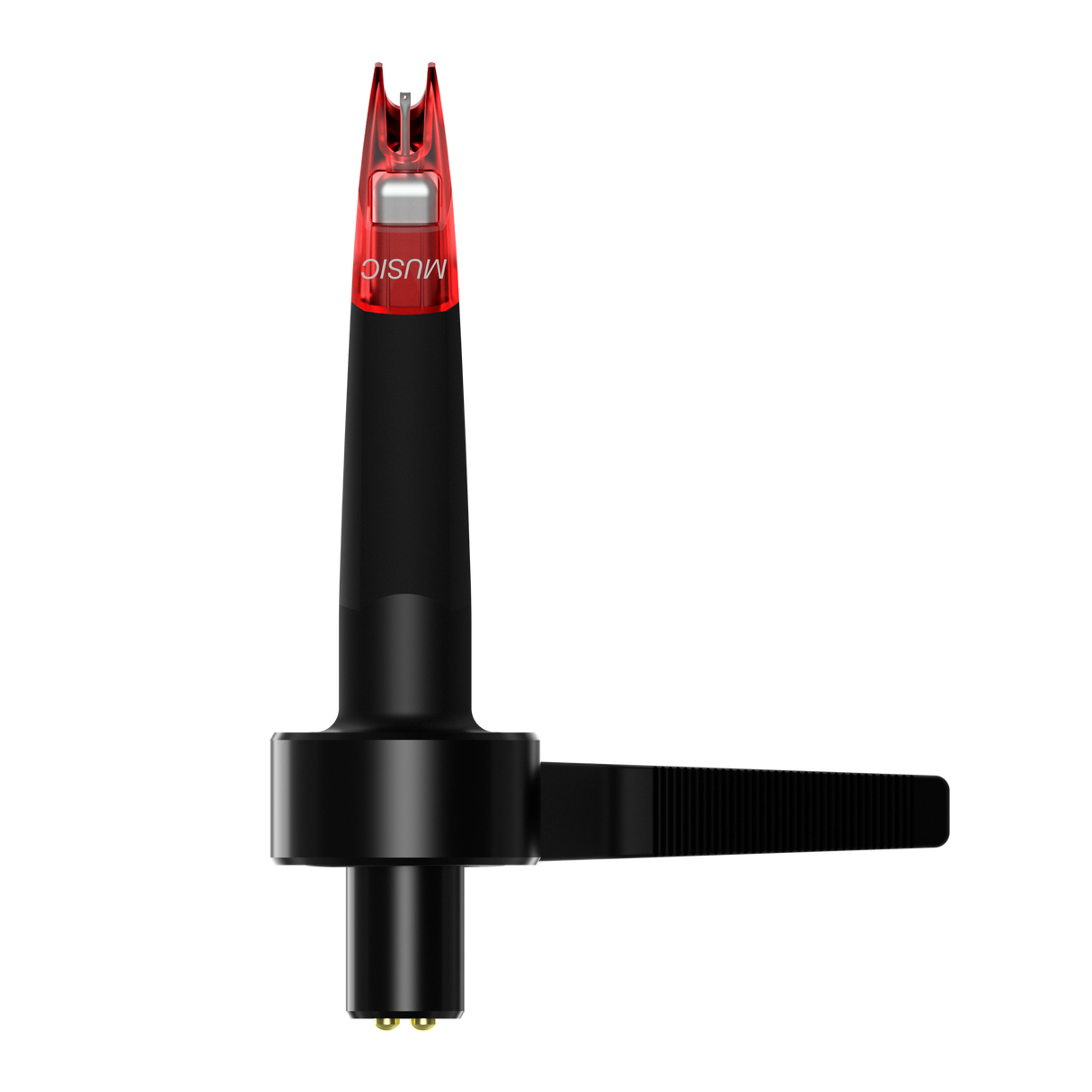

Ortofon Concorde Music Red MM Cartridge

Name: Ortofon Concorde Music Red MM Cartridge
Brand: Ortofon
SKU: Concorde Music Red
Price: 125 GBP
Availability: InStock

£125.00

Sale Sold out

Product variants

Quantity

Trade in Available Book a Demo

Pay in 3

View full details

Details

Description

Premium Moving Magnet cartridge

Concorde Music Red

Experience balanced and dynamic sound quality with the Concorde Music Red. The Concorde Music Red features an Elliptical stylus on an Aluminium cantilever and can be upgraded through the entire series to Concorde Music Black LVB 250, simply by replacing the stylus.

The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required making it hassle free and

Award winning cartridge design

Iconic design

Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as one of the most famous cartridges in the world of audio.

Originally developed as a solution to the challenge of easy mounting on a tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in
the audio industry.

Precision in every groove

Stylus

The Concorde Music Red features an Elliptical diamond polished to the highest standards of the industry, mounted on a premium aluminum cantilever. This ensures the best possible transmission of the vinyl record groove modulations picked up by the diamond.

Unique in-house rubber production

Rubber suspension

The Concorde Music Red utilizes an exclusive Ortofon rubber compound for its stylus suspension. Developed and produced in our unique in-house rubber production, this suspension is a crucial and vital component contributing to the overall performance of the phono cartridge.

Precise and dynamic sound image

Coil system

The Concorde Music features Ortofon's quad-coil generating system with split pole pins. Silver-plated oxygen-free copper is chosen for the quad-coil system, along with four Ortofon split pole pins.

This results in exceptional channel balance and separation, delivering precise and dynamic sound. With a 6 mV output, it offers lifelike sound with exceptional clarity and fidelity, capturing every detail.

Easy mount and upgrade path

Compatibility

Installing the Concorde Music cartridge on your turntable is easy and straightforward; no tools are required, making it hassle-free and convenient for all users. This is thanks to the bayonet/SME connector, which makes it compatible with all S-shaped tonearms.

Full upgrade path

Upgradeability

The Concorde Music Red can be upgraded with all Concorde Music styli, enabling an upgrade path throughout the entire series up to the Concorde Music Black LVB 250.

Upgrading the stylus is a simple task; simply pull the stylus off and replace it with the new one. Remember to keep the stylus guard on when installing the new stylus to keep the needle safe.

Specifications

Channel balance at 1 kHz	1.5 dB
Output voltage at 1 kHz, 5cm/sec	6mV
Channel separation at 1 kHz	22 dB
Frequency response 20 Hz - 20 kHz	+3 / -1 dB
Tracking ability at 315 Hz	80 µm
Compliance, dynamic, lateral	15 µm/mN
Cantilever material	Aluminium
Stylus type	Elliptical diamond
Stylus tip radius	r/R 8/18 µm
Coil system	Quad-coils with split pole pins
Tracking force, recommended	1.8 g
Tracking angle	20°
Cartridge colour	Black/Red
Cartridge weight	18 g
Recommended load resistance	47 kΩ
Recommended load capacitance	150-300 pF
