Details
Description
SPU Mono CG 25 DI MKII

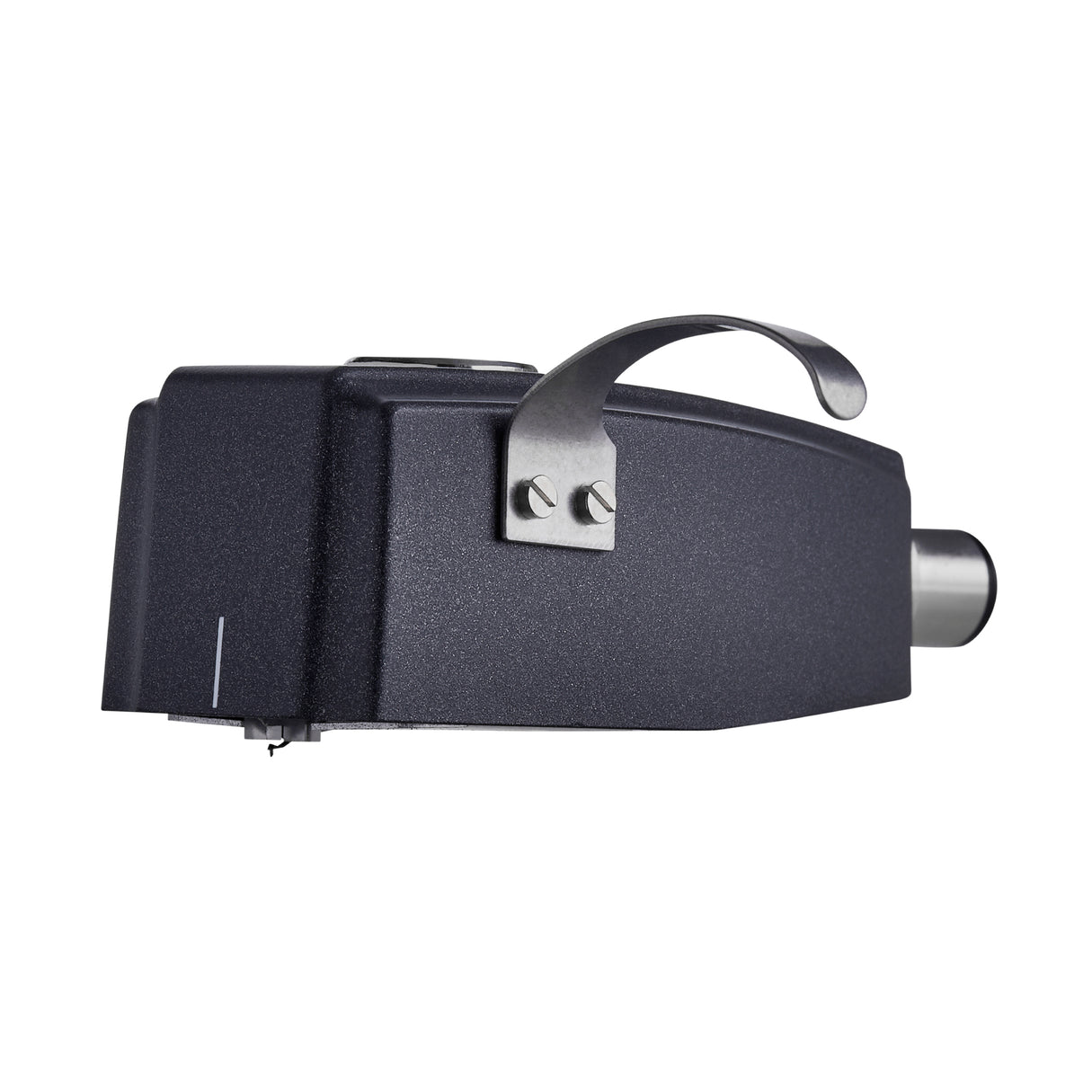

The Mono CG 25 Di MkII is an SPU-style Moving Coil cartridge with a spherical stylus profile for the playback of early 25 µm mono recordings. The CG 25 Di MkII provides an authentic method of playing back these early vinyl recordings with a remarkable level of sonic accuracy.
The SPU Mono CG 25 DI MKII cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers.
Important Usage Note: This cartridge is designed exclusively for mono records. It is imperative to note that using it for stereo records can lead to irreversible damage.
Specifications
Specifications
| TECHNICAL DATA | MONO CG 25 Di MkII |
| Output voltage at 1 kHz, 5cm/sec | 1.5 mV |
| Channel balance at 1 kHz | |
| Channel separation at 1 kHz | |
| Channel separation at 15 kHz | |
| Frequency response | 20-15,000 Hz +3/-1 dB |
| Tracking ability at 315Hz at recommended tracking force *) |
60 µm |
| Compliance, dynamic, lateral | 7 µm/mN |
| Stylus type | Spherical |
| Stylus tip radius | R 25 µm |
| Tracking force range | 3.0-4.0 g (30-40 mN) |
| Tracking force, recommended | 3.5 g (35 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 6 Ohm |
| Recommended load impedance | > 100 Ohm |
| Cartridge body material | Ground wood and resin composite |
| Coil wire material | High Purity Copper (OFC) |
| Cartridge colour | Black matte |
| Cartridge weight, GM model | 37 g |
| Cartridge weight, N model |
