Pathos Adrenalin Monoblock Power Amplifier (Pair)

Engineering art

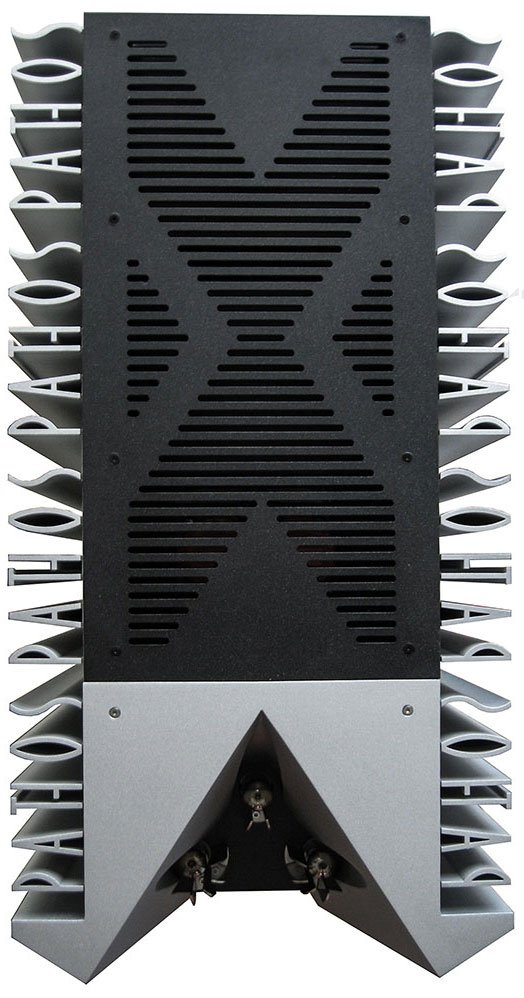

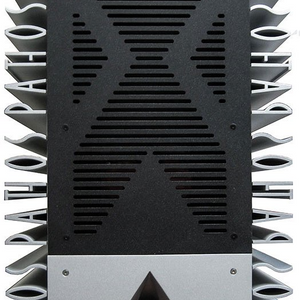

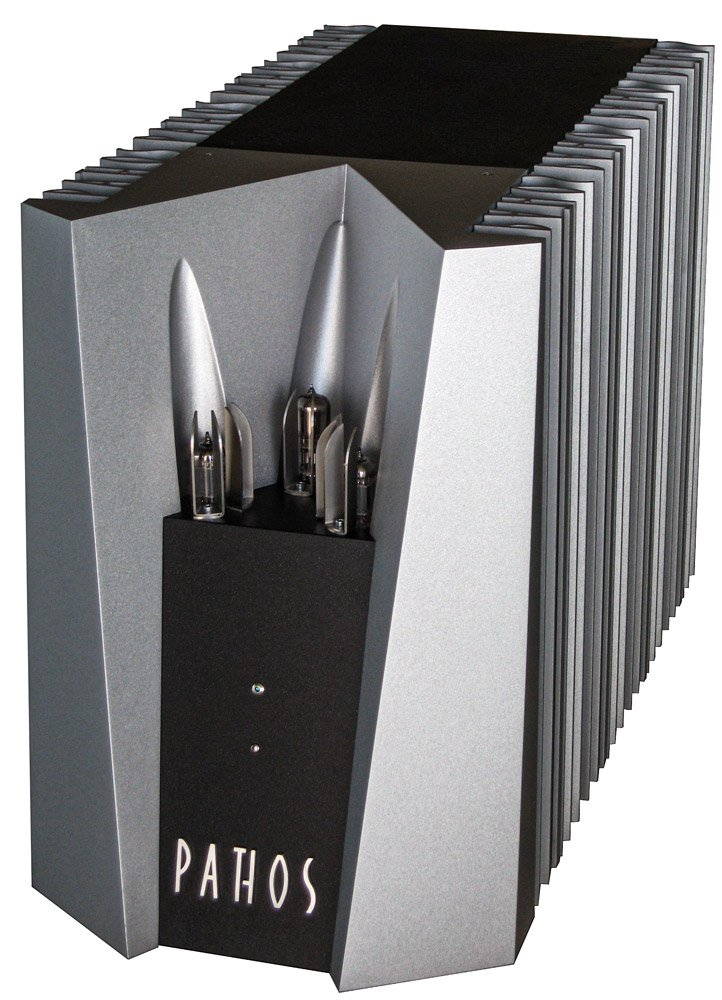

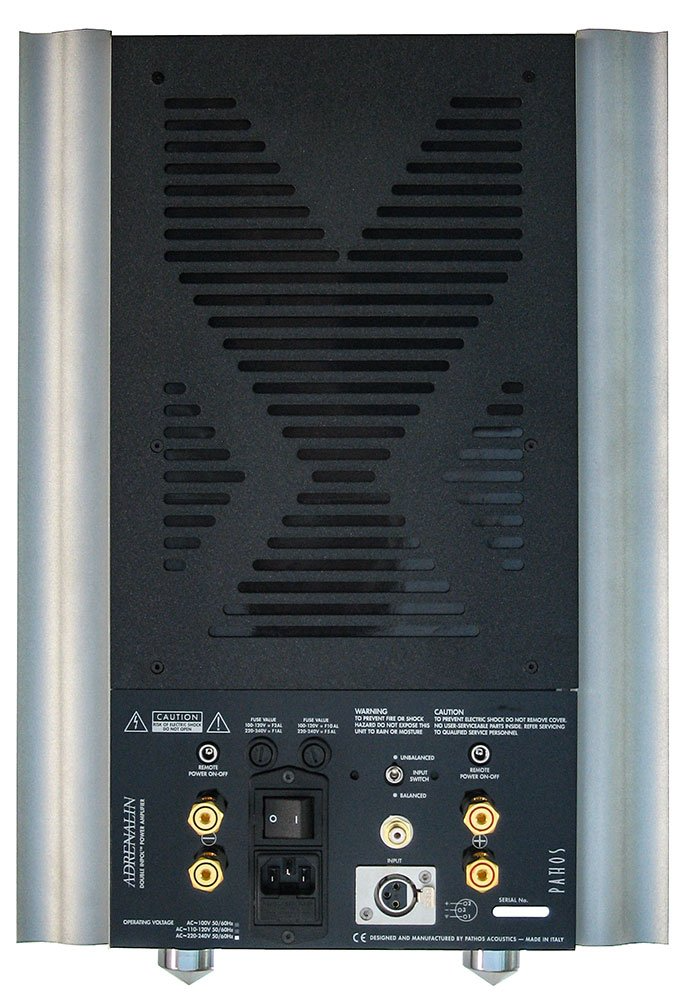

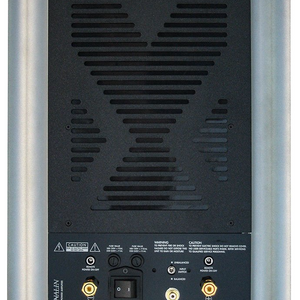

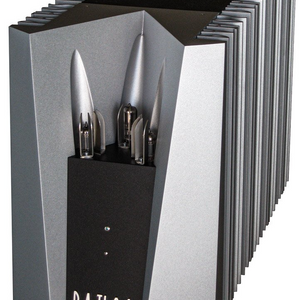

This power buffer with unitary gain, is controlled by a tube amplification stage using three double triodes, two ECC83/12AX7 and one 6H30. The first stage generates voltage amplification based on differential totem pole with two12AX7. The second is a buffer with a common anode with the 6H30 that has the function of driving two groups of power mosfets. The signal on the two outputs amplified and out of phase between them, is delivered to two buffers with InPoL technology.

Incredibly quiet 12 amps

The polarization of the two power stages is at a very high level: it allows a delivery of constant electrical current to avoid interface problems with diffusers. In this machine, technicians will find a series of outstanding details in the sophistication of the design. Starting from a power supply (completely stabilized for the signal stages on anodic voltage) that has a built-in C-multiplier in order to obtain the maximum filtering, on the voltage current generators and on the ignition voltage of filaments, usually considered less noble (but not by Pathos). The main important feature that distinguishes this project is the sensitive power supply that has to deliver a continuous electrical current of more than 12 A. Because the amplifier is at zero feedback, is necessary to use power supplies, filtered, in order to avoid hum noise in the output. Pathos, as usual, did not care about the cost of components and has used an optimum inductive/capacitive switching power supply able to perfectly filter the electrical current of the two power stages (for instance – the weight of filter reactance is 12 Kg).
