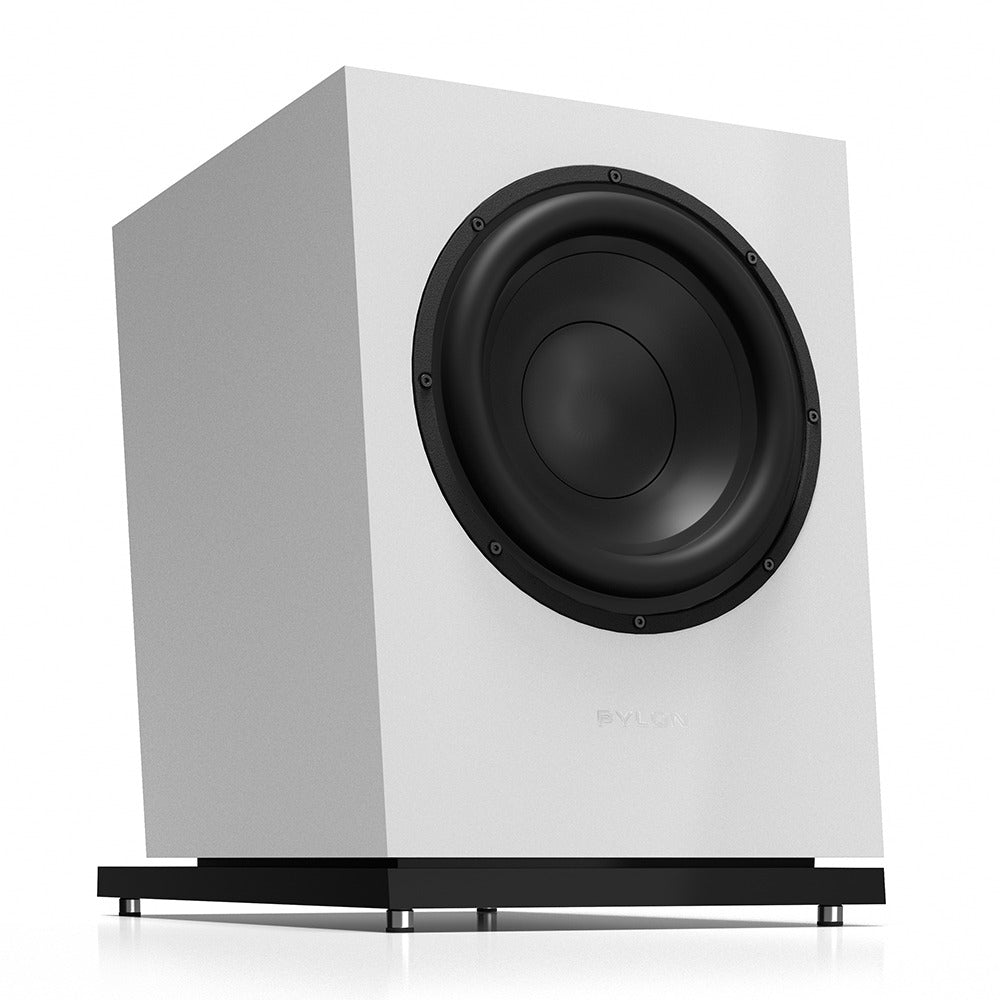

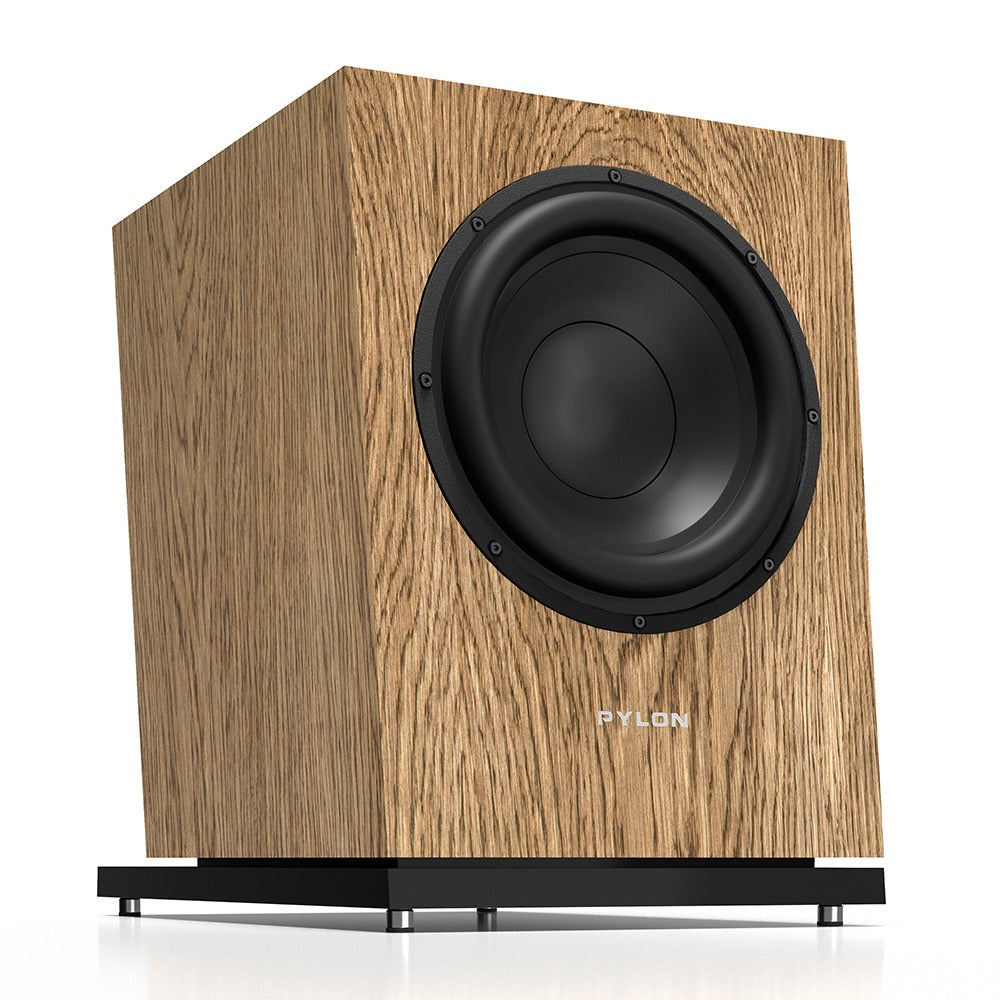

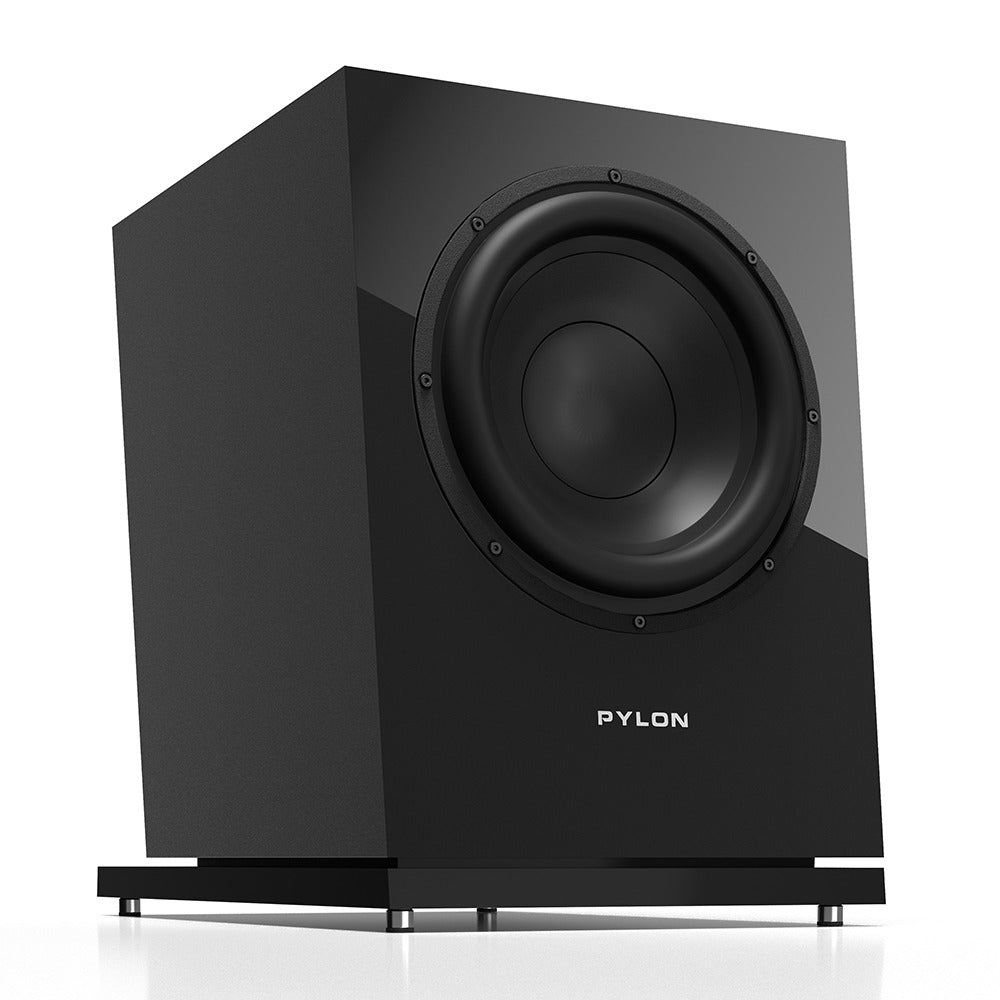

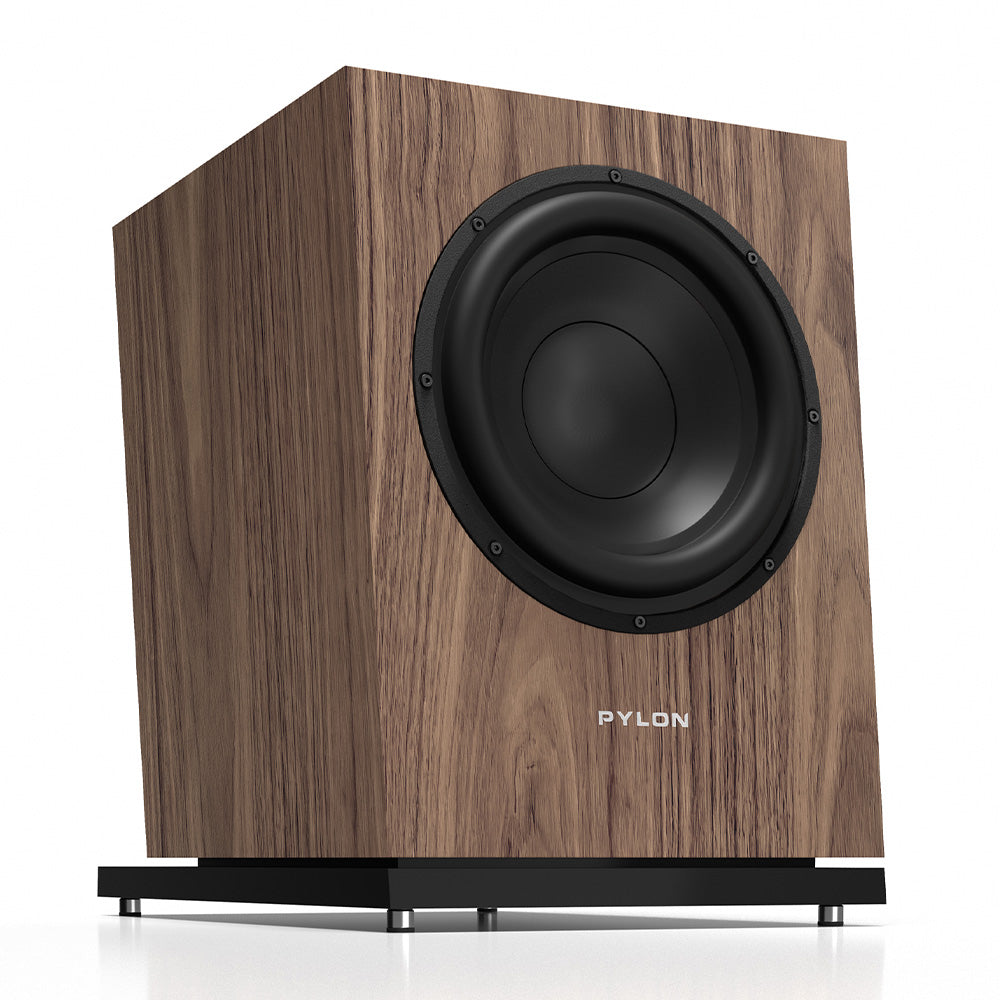

Pylon Audio Diamond sub Active Subwoofer
Pylon Audio Diamond sub Active Subwoofer
Couldn't load pickup availability
Pay in 3
Pay in 3Share
Details
Description
Diamond sub
Excellent woofer and high-powered amplifier fitted into a small and elegant enclosure. Meet an active subwoofer from the Diamond series.
Bass that impresses, slimness that stuns
In the development of the Diamond Sub, we placed a strong emphasis on the compact size of the enclosure. It required an unconventional and innovative approach to the design of the bass-reflex tunnel. Our final solution allowed us to reduce turbulence and optimize acoustic losses, producing excellent bass and sub-bass reproduction that reveals all its depth and structure. The enclosure reflects the distinctive style of the entire Diamond series products, including a beautiful angled design that helps to direct the front of the acoustic wave toward the listening area.
Core of deep sound
The core of the Diamond Sub is the highly efficient driver distinguished by a sizable magnetic circuit capable of generating a potent and stable magnetic field. The extremely rigid openwork basket, injection molded from metal, minimizes air loss and noise and eliminates unwanted reflections and resonances. The stiff and firm diaphragm exhibits virtually no natural resonances in the subwoofer’s operating range, which means absolute precision in converting voice coil motion into sound pressure. The speaker’s operating range, not limited by the overhead suspension made of low-loss rubber, is well controlled by a linear spring and limited by power amplifier protection. The driver is housed in a rigid, durable enclosure with ribbing and carefully placed reinforcements.
State-of-the-art amplifier

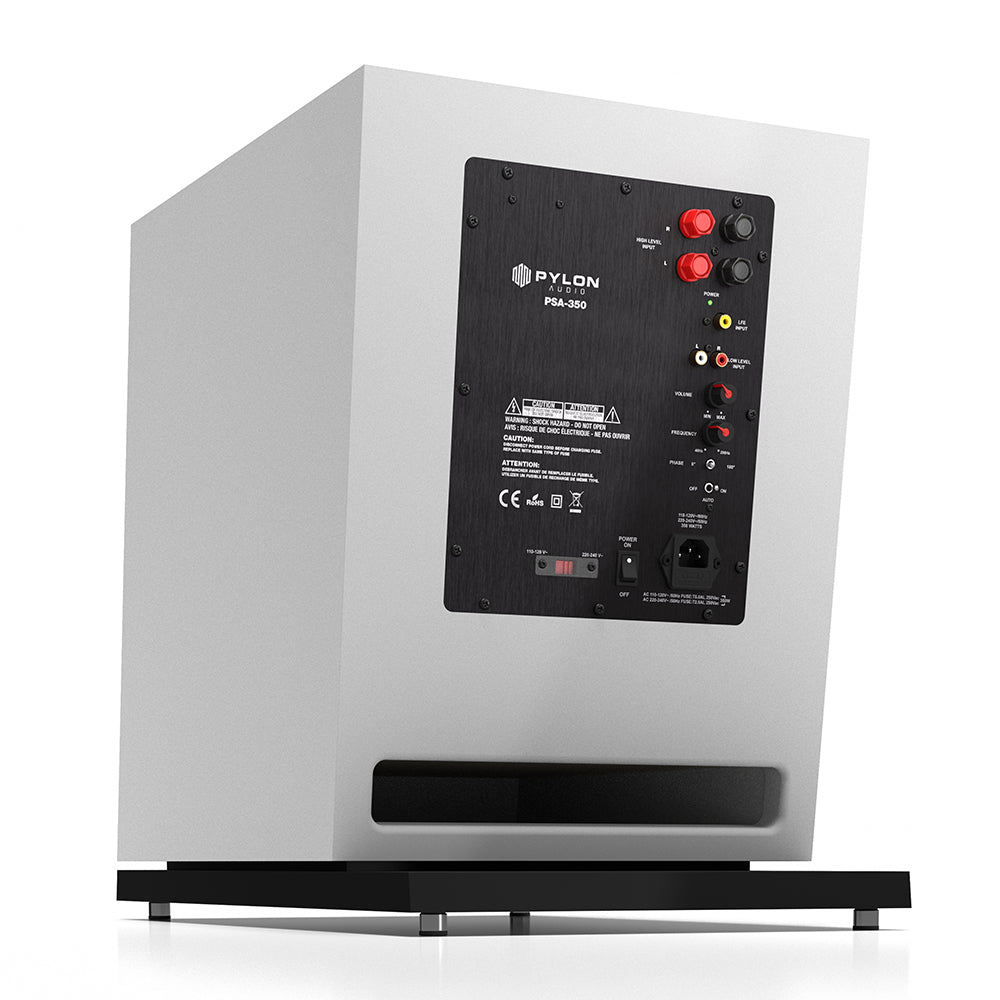

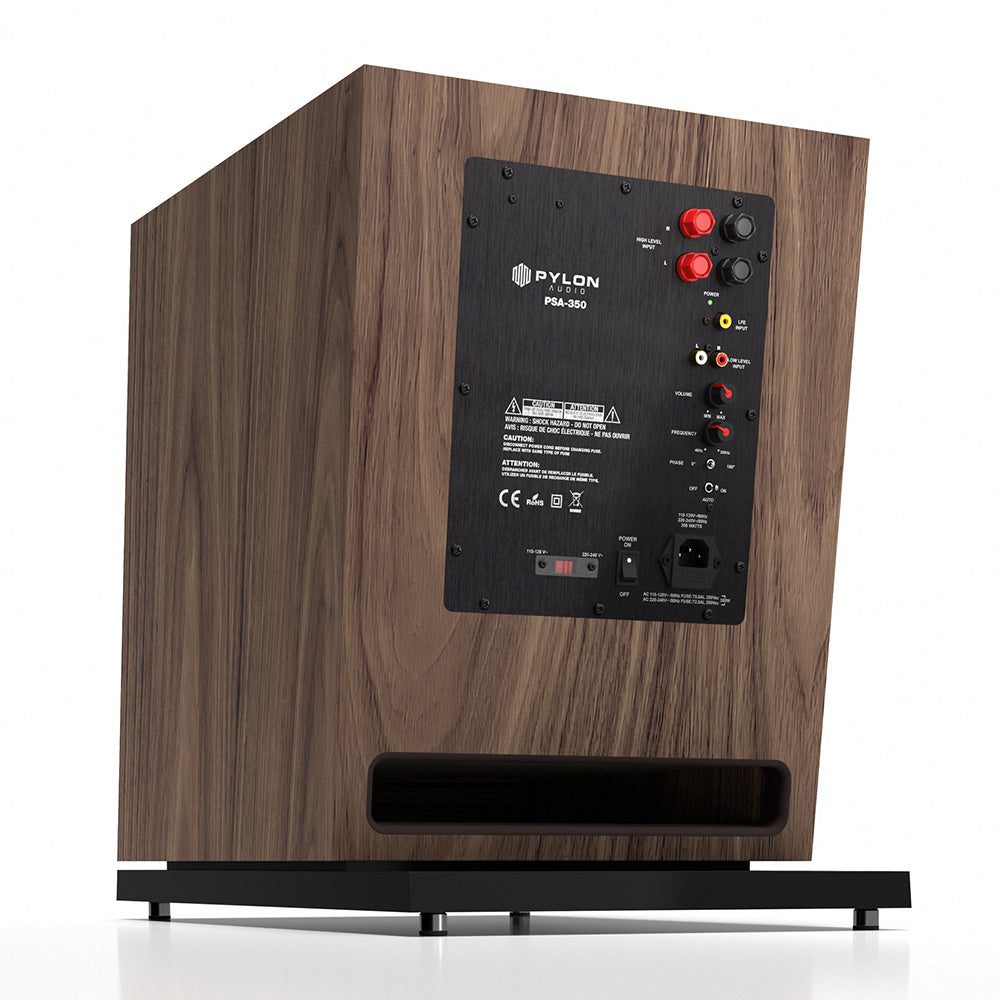

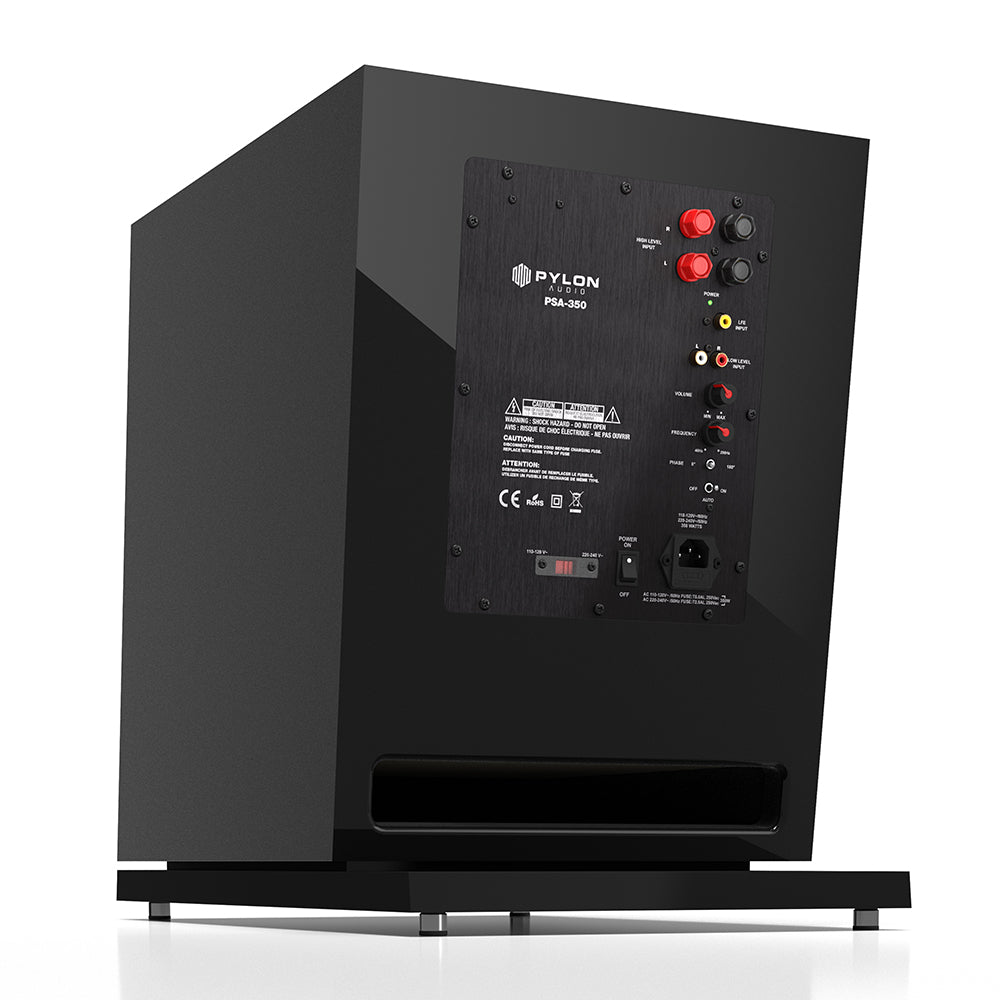

A high-tech 350-watt amplifier, operating in Class-D, ensures that more than 90% of the power delivered to the unit is transferred to the speaker voice coil. Furthermore, it has a wide-range adjustable active analog filter circuitry that allows optimal matching of the lowest frequency bandwidth to the other components of the set. It is possible to connect Diamond Sub to both the high-level and the PRE-OUT outputs of a power amplifier or preamplifier. Finally, you can bypass the subwoofer’s controls when an external device manages bandwidth by connecting it directly through a dedicated LFE input.
Specifications
Specifications
| Sound | |
| Nominal power | 350 W |
| Max power | 500 W |
| Amplifier class | Class D |
| Low pass filter adjustment | 40 – 200 Hz |
| Lower limit frequency | 25 Hz |
| Phase control | 0 – 180 degree |
| Volume control | Yes |
| Cabinet type | Slotted bass-reflex profile |
| Woofer | Pylon Audio PSW 26.4 AA (Seas L26RO4Y2_CUSTOM) |
| Dimensions (W/H/D) | 330 / 458 / 510 mm |
| Weight | 33 kg |
| Inputs (analog) | High-level, low-level, 2× RCA, LFE |
