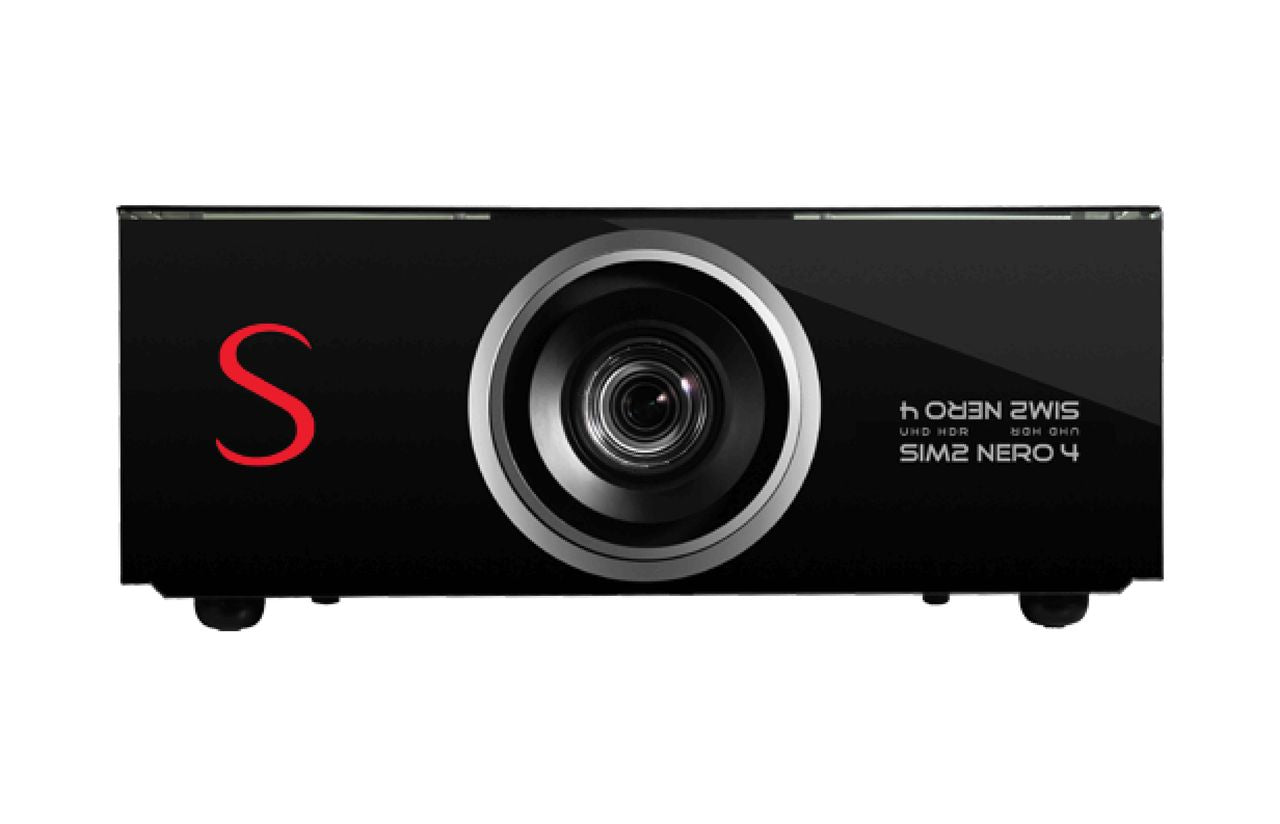

The best projector for the best theaters: high brightness, perfect HDR processing, luxurious crystal glass cabinet.
Enjoy the clarity and realism of the top of the line of SIM2’s single-chip DLP®-based projectors: UHD (Ultra High Definition) images with SIM2’s all-new NERO 4S projector. Featuring Texas Instruments’ DLP® 4K UHD chipset, NERO 4S delivers exceptional 4K images, high brightness (up to 6000 ANSI lumens) light output in hi-bri mode) and an accurate, vibrant color palette.
DLP Technology for a true “Hollywood”
Picture quality experience
1-chip DMD UHD
4K UHD Image resolution
New, high-precision telecentric optical path
High Brightness: up to 6000 Ansi Lumens
Zoom & Focus position encoders
Adjustable iris with memory
SIM2 Perfect Fit Feature
4K resolution for lifelike images and subtle details
SIM2 has consistently set new standards of performance and design in projection, allied with unprecedented innovation. The all-new NERO 4S UHD HDR is no exception.
The NERO 4S UHD HDR projector delivers class-leading picture quality through the partnership of the latest 4K UHD DLP® chipset from Texas Instruments, super high-precision and resolution optics and SIM2’s advanced video processing technology, for a lucid and colorful viewing experience. DLP® from Texas Instruments is Hollywood’s choice of technology for movie theaters and conveys extraordinary image quality that brings out the smallest details - even during high-speed sequences – with assured, long-lasting performance.
The flexibility of the SIM2 NERO 4S UHD HDR is truly unique: featuring a super power 2x zoom and a super wide lens shift, it suits perfectly almost all large theater applications.
HDR as its best
The SIM2 NERO 4S UHD HDR are not only a HDR-capable (accepting an HDR-encoded signal via HDMI 2.0a, HDCP 2.2), but present a full set of features dedicated to HDR picture display.
They offer automatic metadata recognition and an advanced calibration mode, with 4 presets to automatically fit different screen sizes. The metadata describe the characteristics of the image being displayed (peak luminance, color gamut, etc.) and the SIM2 NERO 4S UHD HDR detects them and automatically enables its HDR mode. Nonetheless, it adjusts the image data through a process called tone mapping, for softening the clipping of high lights.
In HDR mode, the projectors have 4 presets that allow customers to obtain the standard EOTF (Electro Optical Transfer Function) SMPTE ST2084 behavior, with which HDR video content is packaged, suitable for 4 different types of installation, for a correct playback of HDR video materials and simplified installation The SIM2 NERO 4S UHD HDR have been designed for this behavior to be as faithful as possible to the ideal behavior it needs to have.
In addition, 4K UHD resolution, 8/10/12 color bit depth processing and YCC 4:4:4 color coding, combined with HDR technology, allow the SIM2 NERO 4S UHD HDR to deliver unbeatable image quality. By means of its high peak luminance, inky blacks, and vibrant color gamut, SIM2 NERO 4S UHD HDR provides images where every scene is replicated with extreme realism, just as the human visual system would perceive it in the real world.
About HDR Technology
In the real world, the intensity of natural light can span up to 14 orders of magnitude from night to direct sunlight. The ratio between max. and min. luminance is called dynamic range. The human eye can instantaneously perceive up to 5 orders of magnitude without adaptation. HDR (High Dynamic Range) is the ability to render a large range of luminance in a display, from extremely dark to extremely bright values, hence creating brighter whites, darker blacks and brighter colors that better match what we see in the real world.
This large dynamic range requires different display behaviors with respect to the input signal.
For this reason, all the HDR video chain has been rebuilt and, in place of the “gamma” , now an “EOTF” is used, based on the real human eye’s ability to perceive differently low light and high light details (SMPTE ST2084 based On FQ - Percived Quantizer).
Proper use of HDR content therefore requires an absolute display behavior (at a given input signal level corresponds to a single and precise luminous level reproduced). This implies that, depending on the luminous flux output from the projector and the screen variations (size, material, reflectivity, etc), it is necessary to change the behavior of the projector to remain true to the EOTF for which video content was produced You want to project.
SIM2 Perfect fit & autofocus technology
With SIM2 NERO 4S UHD HDR projectors the "widescreen" ratio is easier to achieve than ever thanks to SIM2’s Perfect Fit function. Zoom and focus positioning can be, in fact, stored for 10 different picture formats, from standard 16:9 to 2.40:1 aspect ratio (Letterbox or Anamorphic). Once set up, the Lens Memory is recalled at the touch of a button; the image is automatically adjusted to fit the screen format preference without an external anamorphic lens.
Also, the SIM2 NERO 4S UHD HDR models are equipped with autofocus tracking for an always perfect focus in any specific installation condition, as well as a remote Info function that provides continuous information on all internal functions.
Live Calibration Software
To aid calibration, the SIM2 NERO 4S projectors features SIM2’s advanced Live Colors Calibration 4.0 software that allows professional calibration of all projection parameters such as complete adjustment of the primary, secondary and white point color coordinates.
High Resolution telecentric optics
In order to obtain the best projected image accuracy, a delicate balance is required between the light engine, the DLP® chipset and the video processing electronics. Building on its heritage of high-end light engine design, SIM2 has invested heavily in the development of a high-precision telecentric optical system. The SIM2 NERO 4S UHD HDR models’ pure-glass lens provides an unprecedented resolution of 93 line pairs per millimeter to guarantee exceptional on-screen clarity.
Special coatings have been applied to the optical components to further enhance image and color performance.Installation aids include wide ratio zoom lens (2x zoom) and fully motorized focus and zoom adjustments, plus optical lens shift to adjust the position of the image up to +/- 75% vertically and up to +/- 30% horizontally.
The 2x zoom lens provides easy, simple, effortless, and accurate setup in most size rooms and applications; for instance, for a 140-inch diagonal screen size, the projector can be installed from between 4.2 to 8.3 meters (from 13.7’ to 27.3’) from the screen.
SUSTAINABLE MATERIALS and timeless elegance
For its SIM2 4K UHD HDR projectors, SIM2 has chosen a cabinet made either entirely or mostly of crystal-glass. This material is perfect for adding a special and unique touch to suit any taste or room style - whether traditional, contemporary, or somewhere in between - making it a classic, timeless piece of art, a true keepsake. Indeed, SIM2 4K UHD HDR models feature a typically stylish ‘made-in-Italy’ design: a distinctive, contemporary cabinet enriched by a luxurious crystal finish by designer Giorgio Revoldini.
Crystal-glass is a pure and sustainable material capable of being recycled indefinitely.
DLP® Type and Image Resolution:
1-chip DMD 0.67” UHD
4K UHD (3840x2160 pixels): 8.3M pixels
HDR compliant, with dedicated Display Modes and 4 presets to cover the screen size from 100 to 160 inches
Light Source and brightness:
450W lamp (dimmable) up to 5.000 Ansi Lumens
10 apertures memorized
Remote Info function:
SIM2 Customer Care 4sizes
Super high definition pure-glass lens with telecentric optics
10 apertures memorized
Light Source and brightness:
450W lamp (dimmable) - up to 6.000 Ansi Lumens
Lens - Resolution:
93 lines per millimeter
Lens Throw ratio (+/-5%):
Zoom & Focus:
Motorized with position encoders
@ 24/25/30/50/60/70/72/75 Hz
1 x RGBHV / YCbCr (D-Sub 15-pin female) - 2 x HDMI (v.1.4a - HDCP 1.4) - 1 x HDMI (v.2.0a - HDCP 2.2) - 1 x HDMI audio/video out (v.1.4a - HDCP 1.4) - 1 x Display Port v.1.2 - 1x VGA / 3x YCrCb Component - 1 x USB type A for Firmware upgrade
1 x RJ45 for control communications through internal web pages - 1 x RS232 for control communications - 2 x IR receivers - 2 x 12V, 200mA (+/- 10%), Triggers output - 1 x Wired IR receiver - 1x VGA / 3x YCrCb Component
Manual - Horizontal +/-30% offset (+/- 5%) Vertical+/-75% offset (+/- 5%)
Mains voltage range:
100-240 +/-10% (50/60 Hz)
approx. 32 Kg. / 70.5 lbs
Projectors dimensions (WxHxD):
528 x 215 x 582 mm (20.8” x 8.5” x 22.9”)
2,5m ÷ 9m for focus range
