Sonus Faber

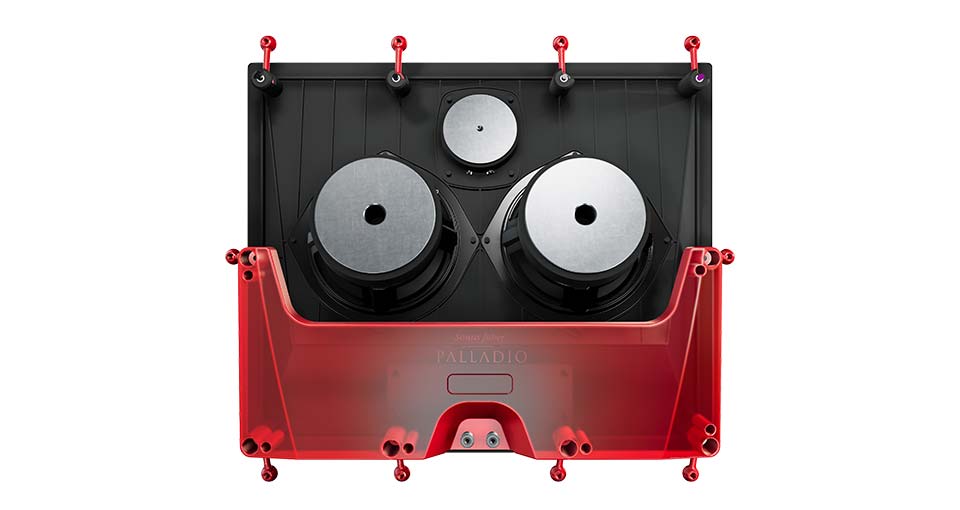

Sonus Faber Palladio 5 PC-563 P In-Ceiling Speaker (Single)

Sonus Faber Palladio 5 PC-563 P In-Ceiling Speaker (Single)

No reviews

Regular price £1,000.00
Regular price Sale price £1,000.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Free Delivery
  • Demo Available
  • Trade-in Available
View full details

Details

Description

Main Features

FAMILY FEELING

The PC-563 P directly refers to the Sonetto Collection for the choice of materials, the electroacoustic project, and design. The satin aluminum trim that frames the tweeter recalls the aesthetic of the “Voice of Sonus Faber”.

MAGNETIC GRILLES

The PC-563 P is equipped with a magnetic edgeless round metal grille, ready to be painted. The square metal grille is optionally available.

QUICK INSTALLATION

Thanks to the swing-out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard.

SOUND POINTING

Whenever front speakers cannot be placed on walls, this model is made to be mounted in the ceiling. By positioning drivers to be angled to the surface, the sound emission aims to the direction of the listening position.

MID-WOOFER

The custom diaphragm is made in natural fiber and cellulose pulp, according to the most natural sound.

TWEETER

DADTM (Damped Apex Dome)silk dome tweeter.

PARACROSS TOPOLOGY TM

The anti-resonant design of the x-over network features the Paracross TopologyTM circuitry, to guarantee a better definition and purity of sound.

The voice of Sonus Faber

It’s the timbre of our loudspeakers systems, especially in the mid-high frequencies section: a warm and fascinating sound obtained by means of a design solution that identify the DNA of the brand. As for our line of passive loudspeakers, the 29 mm silk dome tweeters are characterized by DAD (Damped Apex Dome™) technology, and mid-ranges and mid-woofers are equipped with custom diaphragms made in natural fiber and cellulose pulp, a special Sonus Faber receipt. The crossover network or the entire line is designed for better definition and purity of sound featuring the Paracross Topology™ circuitry.

Level 5 and Sonetto: harmonic integration

The characterization of Level 5 front panels is the same as the Sonetto collection. The satin aluminum trims that frame both tweeter and mid-woofer, create the “Voice of Sonus Faber” aesthetic. The string pattern explicitly references the Sonetto bookshelves stand design, where the motif ideally referred to the use of the elastic strings of the first Guarneri stands (1993).

Easy to install and customize

All Palladio series models are equipped with a magnetic, edgeless metal grille, designed to make each model as discreet as possible. All models grilles are ready to be painted and all in-ceilings models can be equipped with a square magnetic grille to further increase the freedom of the listener’s choice. Thanks to the swing-out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard. All Palladio In-Ceiling speakers (except for PC-664P and PC-563P) can be completed with their pre-mount kit, an optional accessory for new constructions installations.

Specifications

Specifications

LOUDSPEAKER SYSTEM Two-way point In-ceiling system. Infinite baffle
TWEETER - DADTM DRIVER 29 mm / 1.1 in
MIDWOOFER 2 x 165 mm / 2 x 6.5 in
CROSSOVER FREQUENCY - PARACROSS TOPOLOGYTM 1,650 Hz
FREQUENCY RESPONSE 45 - 25,000 Hz
SENSITIVITY (2.83 Vrms @ 1m) 90 dBspl
NOMINAL IMPEDANCE 4 Ω
COVERAGE ANGLE (1 kHz, @-6 dB) ± 45° H - ± 45° V
SUGGESTED AMPLIFIER POWER OUTPUT (*) 40 – 250W without clipping
FRAME OUTER 460 x 386 mm / 18.1 x 15.1 in
CUT OUT 433 x 359 mm / 17 x 14.1 in
DEPTH BEHIND SURFACE 148 mm / 5.82 in
PROTRUSION 13 mm / 0.51 in
NET WEIGHT 6.5 Kg / 14.3 lb
INCLUDED IN THE BOX Bezel-Free square magnetic grille
