Details
Description
Main Features
INTEGRATION

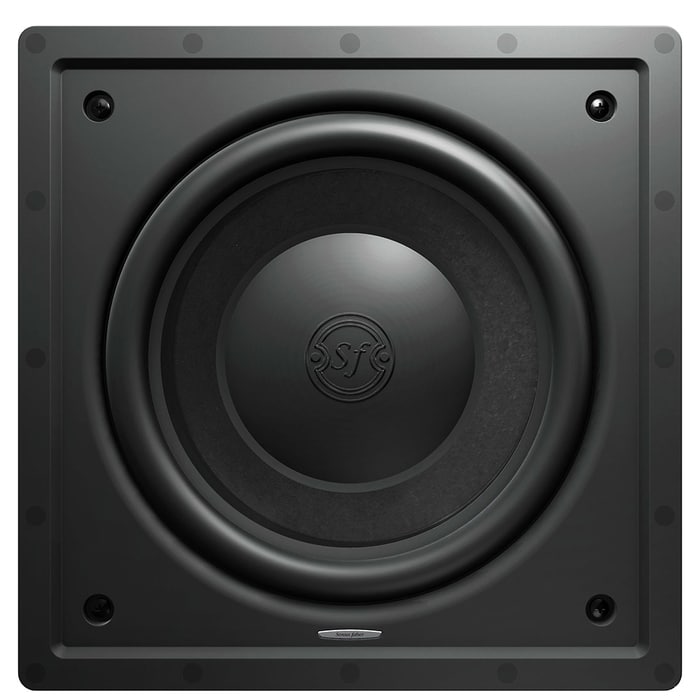

The PS-G101 is a versatile passive subwoofer designed for a perfect integration for both Level 5 and Level 6
MAGNETIC GRILLES
The PS-G101 is equipped with a magnetic edgeless round metal grille, ready to be painted. The square metal grille is optionally available.
QUICK INSTALLATION
Thanks to the swing-out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard.
WOOFER
Long-throw 2in voice coil driver.Paper-Foam-PP piston-like rigidity sandwich cone
The voice of Sonus Faber
It’s the timbre of our loudspeakers systems, especially in the mid-high frequencies section: a warm and fascinating sound obtained by means of a design solution that identifies the DNA of the brand. As for our line of passive loudspeakers, the 29 mm silk dome tweeters are characterized by DAD (Damped Apex Dome™) technology, and mid-ranges and mid-woofers are equipped with custom diaphragms made in natural fiber and cellulose pulp, a special Sonus Faber receipt. The crossover network or the entire line is designed for better definition and purity of sound featuring the Paracross Topology™ circuitry.
Level 5 and Sonetto: harmonic integration
The characterization of Level 5 front panels is the same of the Sonetto collection. The satin aluminum trims that frame both tweeter and mid-woofer, create the “Voice of Sonus Faber” aesthetic. The string pattern explicitly references the Sonetto bookshelves stand design, where the motif ideally referred to the use of the elastic strings of the first Guarneri stands (1993).
Easy to install and customize
All Palladio series models are equipped with a magnetic, edgeless metal grille, designed to make each model as discreet as possible. All models grilles are ready to be painted and all in-ceilings models can be equipped with a square magnetic grille to further increase the freedom of the listener’s choice. Thanks to the swing-out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard. All Palladio In-Ceiling speakers (except for PC-664P and PC-563P) can be completed with their pre-mount kit, an optional accessory for new constructions installations.
Specifications
Specifications
LOUDSPEAKER SYSTEM | In wall passive subwoofer. Infinite baffle. |
WOOFER | 250 mm / 10 in cone driver. Sonus faber design. |
FREQUENCY RESPONSE | 25 - 1,000 Hz (**) |
SENSITIVITY (2.83 Vrms @ 1m) | 86 dBSPL |
NOMINAL IMPEDANCE | 8 Ω |
SUGGESTED AMPLIFIER POWER OUTPUT (*) | 200 – 800W without clipping |
FRAME OUTER | 310 x 310 mm / 12.2 x 12.2 in |
CUT OUT | 280 x 280 mm / 11 x 11 in |
DEPTH BEHIND SURFACE | 98 mm / 3.8 in |
PROTRUSION | 23 mm / 0.9 in |
NET WEIGHT | 5.6 Kg / 12.4 lb |
INCLUDED IN THE BOX | Bezel-Free square magnetic grille |
(**) Unfiltered & unequalized. External filtering required |
