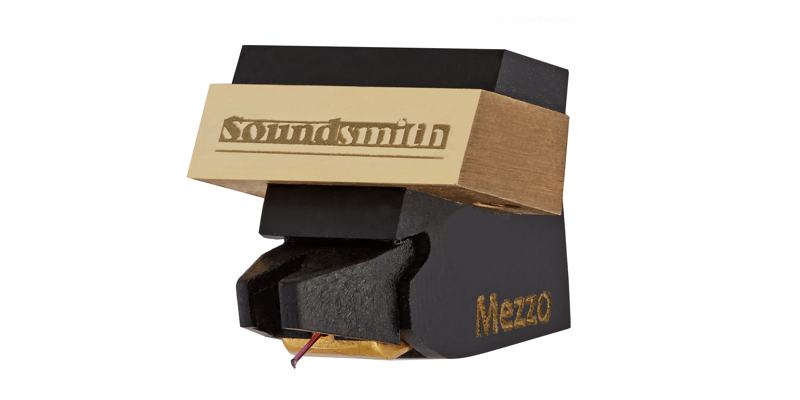

SoundSmith - Mezzo MKII - Medium-Output Phono Cartridge
The medium-output brother of the SUSSURRO. The MEZZO is a cartridge that fully realizes critical design features; has an extremely low internal mass, extraordinary damping, and one of the best stylus and cantilever combos.
Each MEZZO cartridge is individually hand crafted by Peter Ledermann, CEO of Soundsmith and Chief Engineer. It has a newly designed fixed coil element that effectively reduces moving mass by 70%. The result is almost no jitter and one of the best sounds in a cartridge. Made with an ebony body and a ruby cantilever.
SPECIFICATIONS
| Output | Medium |
| Output Voltage | 1.1 mV |
| Type: | • Fixed Coil / Moving Iron |
| Mount: | • Standard ½” |
| Stylus: | • Contact Line, Nude, 0.10 mm square |
| Radius of Curvature: | • Optimized Contour Contact Line SELECTED |
| Cantilever: | • Ruby |
| Recommended Tracking Force: | • 1.8 - 2.2 g |
| Effective Tip Mass: | • 0.30 mg |
| Compliance: | • 10 µm/mN |
| Frequence Response: | • 20 - 20,000 Hz ± 1.0 dB |
| Channel Separation @ 1000 Hz: | • > 34 dB |
| • N/A (Mono version) | |
| Channel Separation @ 50 - 15,000 Hz: | • > 25 dB |
| • N/A (Mono version) | |
| Channel Difference: | • < 0.5 dB |
| • < 1.0 dB (Mono version) | |
| Output Voltage @ 5cm/sec: | • > 1.10 mV (MEDIUM) |
| DC Resistance (DCR): | • 110Ω |
| Coil Inductance per channel: | • 30 mH |
| Suggested Preamp Gain: | • 48 - 54 dB |
| Cartridge Weight: | • 10.25 g |
| Recommended Load Resistance: | • ≥ 1.5kΩ |
| Recommended Load Capacitance: | • n/a |
