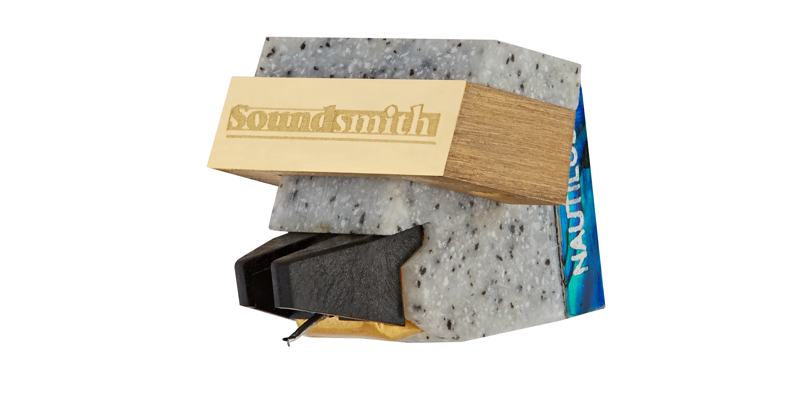

Soundsmith Nautilus Medium Output HiFi Turntable Cartridge
Medium output design, otherwise identical to the Paua. The Paua is one of Soundsmith's most highly regarded top of the line low output cartridges. It has won numerous accolades & praise from users and reviewers around the word, including an “Editor’s Choice Award” in 2015 from TAS. Each one hand crafted by Peter Ledermann - Made in the USA.
SPECIFICATIONS
| Output | Medium |
| Output Voltage | 1.1 mV |
| Type: | • Fixed Coil / Moving Iron |
| Mount: | • Standard ½” |
| Stylus: | • Contact Line, Nude, 0.10 mm square |
| Radius of Curvature: | • Nude Contact Line SELECTED |
| Cantilever: | • Telescoping Aluminum Alloy |
| Recommended Tracking Force: | • 1.7 - 1.9 g |
| Effective Tip Mass: | • 0.30 mg |
| Compliance: | • 10 µm/mN |
| Frequence Response: | • 20 - 20,000 Hz ± 1.0 dB |
| Channel Separation @ 1000 Hz: | • > 34 dB |
| • N/A (Mono version) | |
| Channel Separation @ 50 - 15,000 Hz: | • > 25 dB |
| • N/A (Mono version) | |
| Channel Difference: | • < 0.5 dB |
| • < 1.0 dB (Mono version) | |
| Output Voltage @ 5cm/sec: | • > 1.10 mV (MEDIUM) |
| DC Resistance (DCR): | • 110Ω |
| Coil Inductance per channel: | • 30 mH |
| Suggested Preamp Gain: | • 48 - 54 dB |
| Cartridge Weight: | • 10.25 g |
| Recommended Load Resistance: | • ≥ 1.5kΩ |
| Recommended Load Capacitance: | • n/a |
