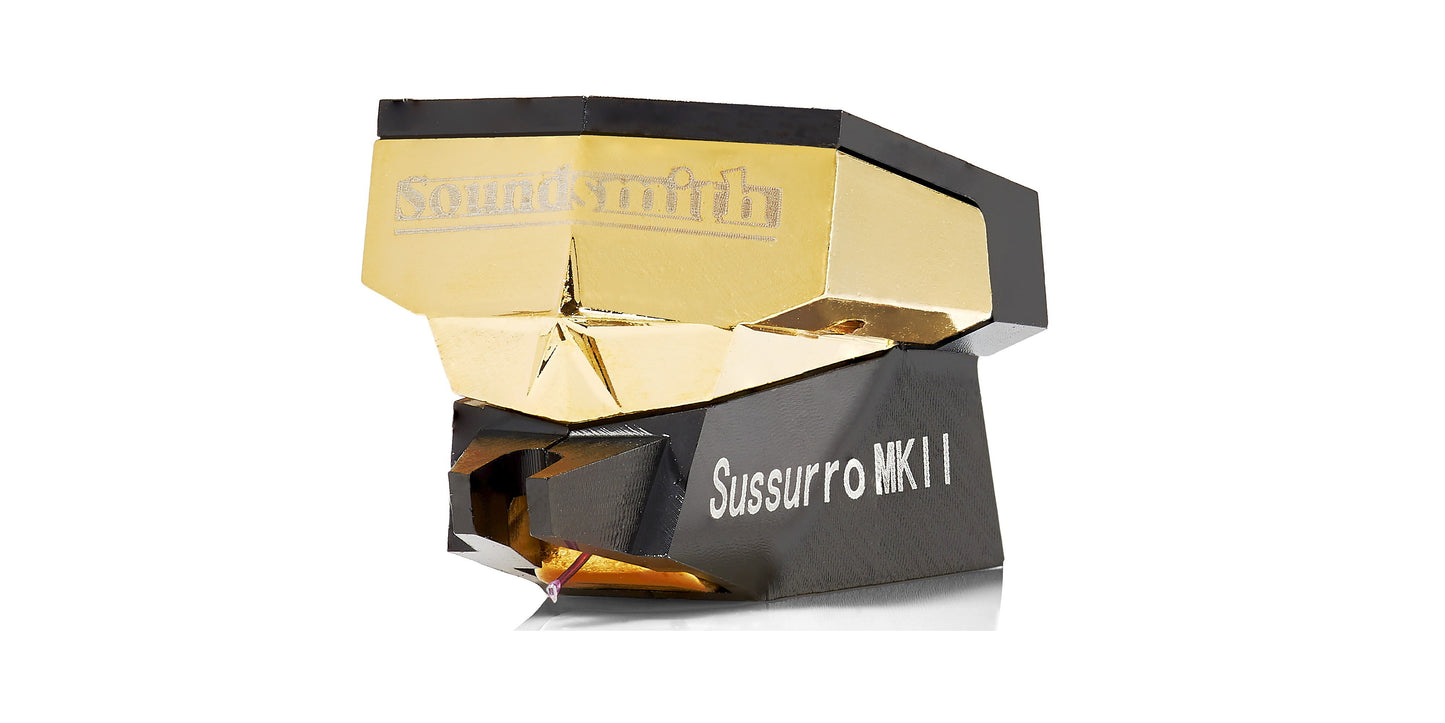

Soundsmith Sussurro MKII Low Output Phono Cartridge

Soundsmith Sussurro MKII Low Output Phono Cartridge

No reviews

Regular price £4,999.95
Regular price Sale price £4,999.95
Sale Sold out
    View full details

    Details

    Description

    Sussurro mk II

    The Sussurro ~ critical design decisions, realized. Lowest internal mass. Best damping. Esoteric stylus and cantilever. If you need to stay in constant contact, your cartridge has arrived.

    Inspired by Frank Schröder, designed and individually hand made by Peter Ledermann, Soundsmith's Sussurro is a cartridge designed to specifically address the most intricate and critical issues of cartridge design.

    The new MKII Sussurro has a newly designed moving iron element to reduce moving mass by 70%; extremely low stored energy, the new MKII damping system and an innovative energy distribution path to effectively transfer mechanical energy away from the cantilever through the cartridge body into the tone arm. So what does all this mean??

    Low jitter. Jitter? You probably thought that was a term reserved for digital systems. Not so. Stylus jitter is responsible for loss of detail, and making a cartridge sound, well, like a cartridge. The Sussurro stays in constant contact with the record groove. If you are not in constant contact, you can’t hear what has truly been recorded.



    SPECIFICATIONS



    Output Low
    Output Voltage ,4mV
    Type: • Fixed Coil / Moving Iron
    Mount: • Standard ½”
    Stylus: • Contact Line, Nude, 0.10 mm square
    Radius of Curvature: • Optimized Contour Contact Line SELECTED
    Cantilever: • Ruby
    Recommended Tracking Force: • 1.8 - 2.2 g
    Effective Tip Mass: • 0.30 mg
    Compliance: • 10 µm/mN
    Frequence Response: • 20 - 20,000 Hz ± 1.0 dB
    Channel Separation @ 1000 Hz: • > 34 dB
    • N/A (Mono version)
    Channel Separation @ 50 - 15,000 Hz: • > 25 dB
    • N/A (Mono version)
    Channel Difference: • < 0.5 dB
    • < 1.0 dB (Mono version)
    Output Voltage @ 5cm/sec: • > 0.40 mV (LOW)
    DC Resistance (DCR): • 10Ω
    Coil Inductance per channel: • 2.75 mH
    Suggested Preamp Gain: • 58 - 64 dB
    Cartridge Weight: • 12.2 g (ES series)
    Recommended Load Resistance: • ≥ 470Ω
    Recommended Load Capacitance: • n/a
