TAD Labs Evolution Series M2500MK2 Power Amplifier

TAD Labs Evolution Series M2500MK2 Power Amplifier

Regular price £27,500.00
Regular price Sale price £27,500.00
Sale Sold out
  • Free Delivery
  • Demo Available
  • Trade-in Available
View full details

Details

Description

TAD EVOLUTION POWER AMPLIFIER TAD-M2500MK2

Model No.
TAD-M2500MK2

BREATHING NEW LIFE INTO MUSIC.

With the TAD-M2500MK2 power amplifier, TAD continues its mission of providing audio quality that sounds truly natural. Using Class D circuitry in a completely balanced structure, TAD amplifiers achieve unprecedented levels of performance.

TECHNOLOGY

BALANCE

In order to provide precise speaker drive to the utmost limits, TAD strives for symmetry in both circuitry and structure, with the goal of achieving perfect balance. By completely separating left and right channels from input to output, along with power supplies and transformers that are separated between both left and right channels and positive and negative rails, complete symmetry is maintained. Utilizing a bridged transformer-less design with two amps in a balanced configuration, the TAD-M2500MK2 delivers high output power of 500W/2ch respectively.

SPEED

To provide an overwhelming feeling of speed and energy, the analog power supply is equipped with a high capacity toroidal power transformer and electrolytic capacitors. Combined with a Class D output stage, the result is high purity amplification with superior high speed response. For optimum sound, TAD adopted very low on-resistance power MOSFETs with no lead wires. Maintaining low heat generation, thanks to the high efficiency of Class D, the TAD-M2500MK2 achieves high power without traditional heat sinks.

STABILITY

In order to control vibration that affects the sound, the chassis is machined from a 90kg block of aluminum, effectively eliminating all joints other than connections. This helps stabilize the ground potential and further improving sound purity. It also provides both high stiffness and high internal loss, achieving improved sound quality. A three-point cast-iron insulator dampens any vibration transmitted through from the feet.

EFFICIENCY

The sound quality of a Class D output stage is greatly influenced by the power source. The M2500MK2 is equipped with a large toroidal power transformer that utilizes high quality grain-oriented steel for superior magnetic saturation characteristics, even during high power output. Low energy conversion loss, due to the strong coupling between the primary and secondary winding of the toroidal power transformer, low load fluctuation properties based on parallel winding, along with our proprietary 33,000μF electrolytic capacitors, results in an analog power supply with high drive capacity, even under abrupt load fluctuations and high speed responsiveness.

ELEGANCE

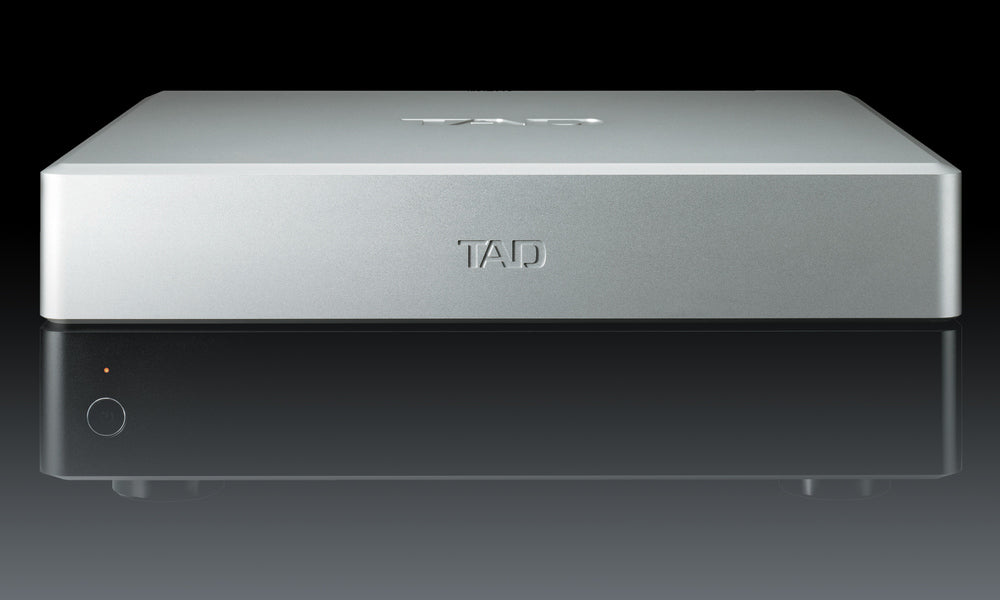

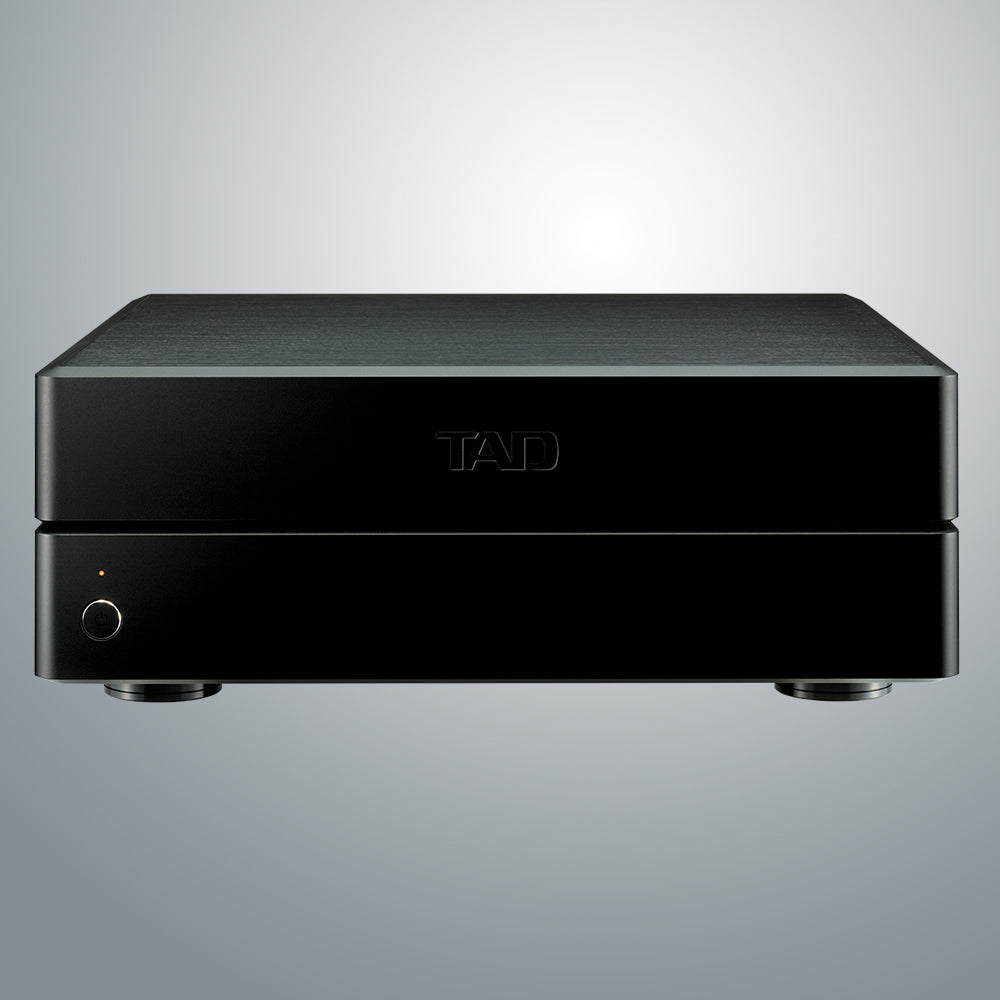

The precisely machined chassis is formed from a solid block of aluminum. The twin tones of silver and black for the divided upper and lower halves produce a striking appearance. The M2500MK2 is also available in a dramatic all black finish. The elegant and clean design, extending to every detail, such as the elimination of visible front panel screws, ensures that either color choice will harmonize beautifully with any room.

Specifications

Specifications

Model No.
TAD-M2500MK2

Power Output

500 W / 4Ω, 250 W/ 8Ω (2 channels simultaneously driven, 20 Hz to 20 kHz, T.H.D., 1.0 %)

Rated Distortion

Less than 0.05 % (20 Hz to 20 kHz, 250 W, 4Ω)

Signal-To-Noise Ratio (IHF, Short Circuited, A Network)

112 dB or higher

Frequecy Responce

5 Hz to 50 kHz, -3 dB

Frequency Responce

10Hz―100kHz, –1 dB

Gain (Balance)

29.5 dB

Input Terminal (Sensitivity / Impedance)

1.5 V/220 kΩ(Balance) 0.75 V/47 kΩ(Unbalance)

Power Requirements

AC 120 V, 60 Hz (USA), AC 220 V to 230 V, 50 Hz /60 Hz (Europe),

vAC 220 V to 230 V, 50 Hz (Asia)

Power Consumption

250 W

Standby Power Consumption

Less than 0.5 W

Dimensions

440 mm (W) x 170 mm (H) x 467 mm (D) (17-5/16 in. (W) x 6-5/8 in. (H) x 18-3/8 in. (D))

Weight

43 kg (94.8 lb)
