The Features
- A 2.5-inch voice coil with four-layer winding provides a high and extremely precise aligned excursion
- High-quality MDF cabinet and additional bracing minimize disturbing resonances
- The iWoofer™ app supports the optimal adjustment of the subwoofer to the room and your own listening preferences
- Connection options on the rear panel include RCA jacks for the LFE channel and high-level terminals

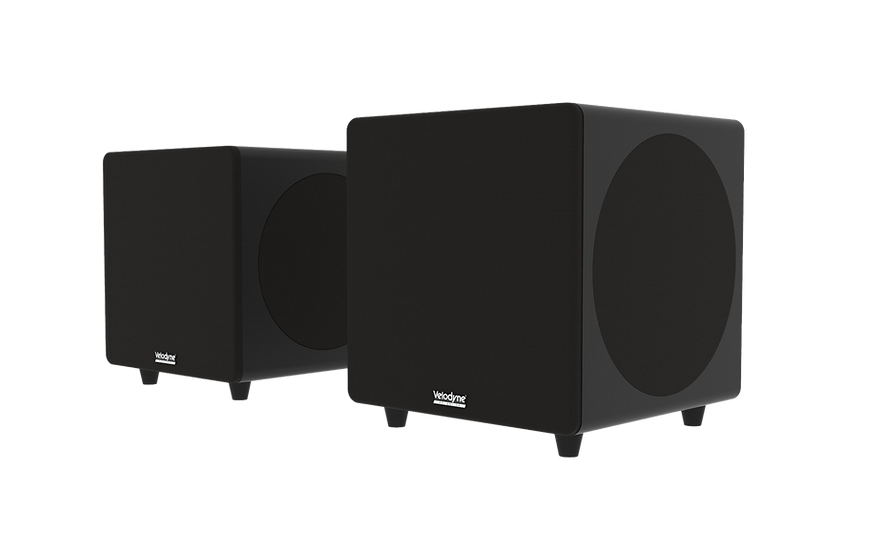

With both Deep Waves models in 10 and 12 inch
Velodyne Acoutics offers the highest precision, performance and adjustability even in an affordable model.
SPECIFICATIONS:
| Driver | 10″ front firing driver 10” side radiating passive radiators |
|---|---|
| Amplifier Class D | 600 watt dynamic 350 watt RMS |
| Overall Frequency Response: (± 3 dB) | 28 Hz – 200 Hz |
| Overall Frequency Response: (± 10 dB) | 25 Hz – 280 Hz |
| Low Pass Crossover | 50 Hz to 180 Hz (12 dB/Octave) |
| Phase | 0 / 180 degrees |
| Cabinet Design | 22 mm MDF |
| Magnet Structure | Dual ferrite magnet motor |
| Woofer | 10” high excursion double vented basket driver with pp Membrane and convex cone |
| Voice Coil | Four Layer 2,5″ / 63 mm voice coil |
| Input | Gold plated Stereo/LFE RCA, Nickel plated High level in |
| Output | Gold plated Stereo/ LFE RCA |
| Power Selector | Off / Auto / On |
| Finishes | Flat matte black paint |
| Dimensions (W/H/D) (includes feet and connectors) | 38 cm x 40 cm x 32 cm |
| Weight (approx) | 21 kg |
| Shipping Weight (approx) | 24 kg |
