State-of-the-art technologies coupled with decades of experience in building subwoofers
make the Digital Drive Plus Series the essence of everything the Velodyne Acoustics brand is all about. Digitally controlled high-end drivers, extensive customization options and infinite power lead to incorruptible precision down to the lowest frequency basement
The Features

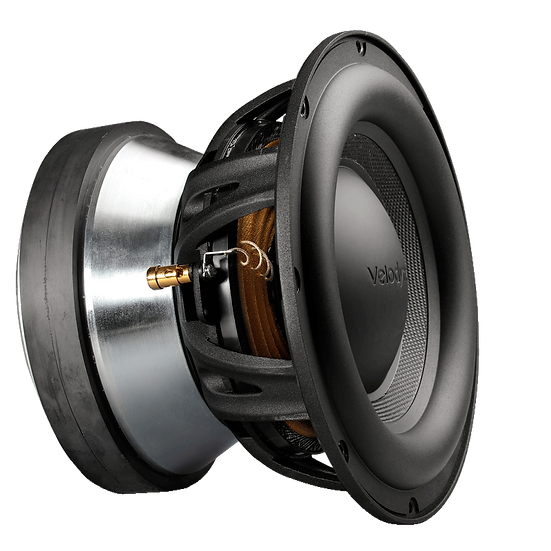

- High-performance chassis with six-way, hand-wound voice coils.
- Digital diaphragm control with 16,000 samples per second
- High-precision automatic calibration with software connection for fine tuning
- Powerful amplifiers with 1,250 watts RMS and 3,000 watts impulse power
With models ranging from 10 to 18 inches, Digital Drive Plus subwoofers are available for listening rooms of all sizes.
They all have one thing in common: maximum precision in all situations.
SPECIFICATIONS:
| Driver | 18″ forward firing | |||
|---|---|---|---|---|
| Amplifier Class D | 3000 watts dynamic 1250 watts RMS power |
|||
| Frequency Response: Overall Frequency Response: (± 3 dB) |
8.8 – 300 Hz 14.4 – 120 Hz |
|||
| THD | < 0.5 % (typical) | |||
| High Pass Crossover | 80 or 100 Hz at 6 dB/octave | |||
| Low Pass Crossover | 40 Hz to 199 Hz (variable in 1 Hz increments) selectable slope Default: 80 Hz @ 24 dB/Octave |
|||
| Phase | 0 to 180 degrees (variable in 15 degree increments) | |||
| Polarity | Adjustable (+/-) | |||
| Magnet Structure | 39.7 lbs. | |||
| Voice Coil | Six-layer, 75 mm | |||
| Cone | Fiberglass Rohacell Laminate | |||
| Input LFE (Mono) | Line level (RCA), Nominal Impedance 47K, Balanced (XLR), Nominal Impedance 10K | |||
| Input L&R | Line level (RCA & XLR) | |||
| Input Microphone | Balanced (Mini-XLR, cable included) | |||
| Input Speaker Level (L&R) | Bare wire, banana plugs, or spade lugs | |||
| Output Thru (L&R) | Line level (RCA & XLR) | |||
| Output (L&R), High-Pass (L&R) | Line level (RCA & XLR) | |||
| Included Accessories | Full feature remote control, DD+ accessory kit and video cable | |||
| Finishes | Black gloss ebony or Piano Black | |||
| Dimensions (H/W/D) (includes feet and connectors) | 22.7” x 20.7” x 25.6” (58 x 53 x 65 cm) | |||
| Shipping Weight (approx) | 64,4 kg | |||
