The Features
- The lightweight carbon fiber cone, in conjunction with the 3-inch voice coil, ensures optimum partial vibration behavior with low distortion values
- High power with up to 650 W RMS Class-D amplification with 1200 W maximum power; highly efficient switching power supply with 2 x 25 A / 650 V MOSFET transistors
- Solid front made of a 21-layer plywood board with a material thickness of a full 50 millimeters
- With its professional XLR connectors, RCA jacks for left and right channel and high-level connectors, the best connectivity is guaranteed

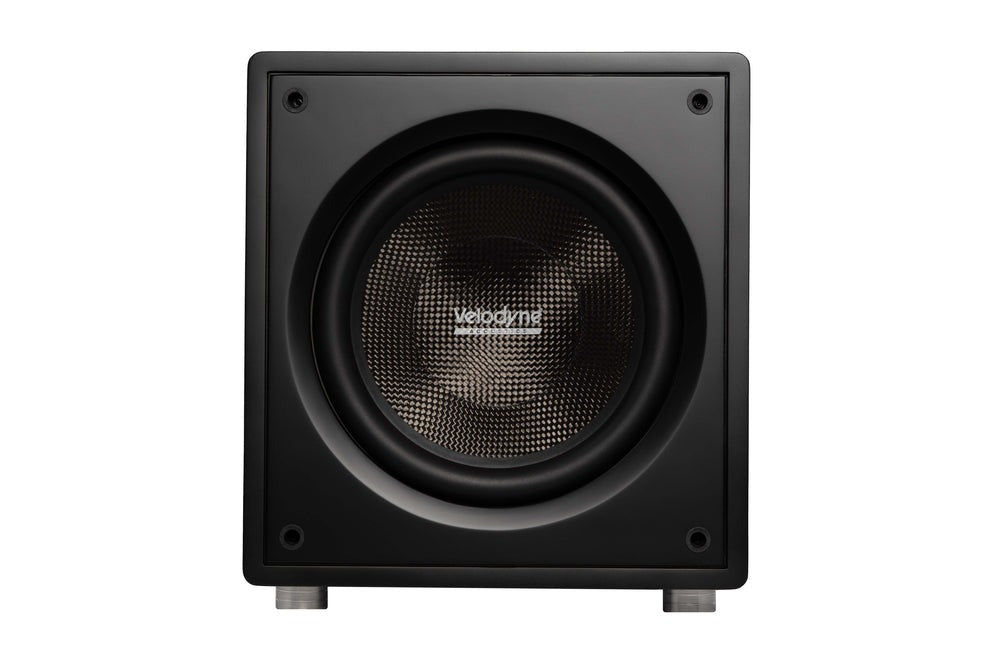

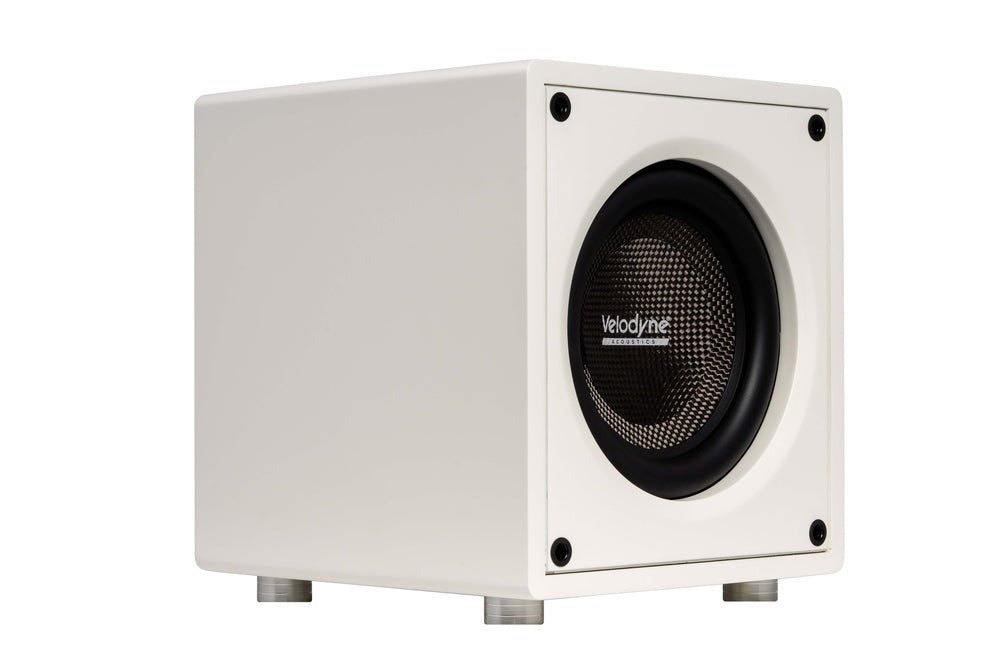

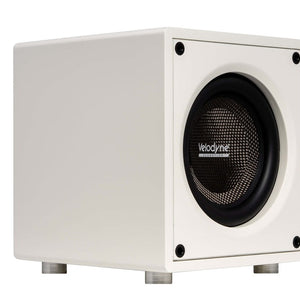

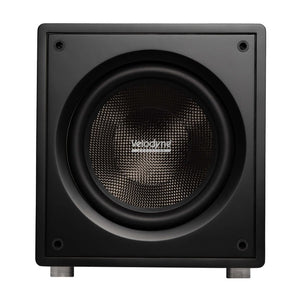

The three VI-Q subwoofers in sizes 10, 12 and 15 inch
combine extremely high performance with low distortion with the best ease of use in a premium matte black enclosure.
SPECIFICATIONS:
| Driver | 10″ front firing driver |
|---|---|
| Amplifier Class D | 850 watt dynamic 450-watt RMS |
| Overall Frequency Response: (± 3 dB) | 28 – 200 Hz |
| Overall Frequency Response: (± 10 dB) | 25 – 280 Hz |
| Low Pass Crossover | 50 Hz to 180 Hz (12 dB/Octave) |
| Phase | 0 / 180 degrees |
| Cabinet Design | 22mm HDF 50mm front |
| Magnet Structure | Dual ferrite magnet motor |
| Woofer | 10” high excursion triple vented basket driver with carbon fiber Membrane and convex cone |
| Voice Coil | Four Layer 3″ / 76mm voice coil |
| Input | Gold plated Stereo/LFE RCA, Nickel plated XLR and High level in |
| Output | Gold plated Stereo/LFE RCA, Nickel plated XLR |
| Power Selector | Off / Auto / On |
| Finishes | Flat mat black paint |
| Dimensions (W/H/D) (includes feet and connectors) | 38cm x 40cm x 32 cm |
| Weight (approx) | 21 kg |
| Shipping Weight (approx) | 24 kg |
